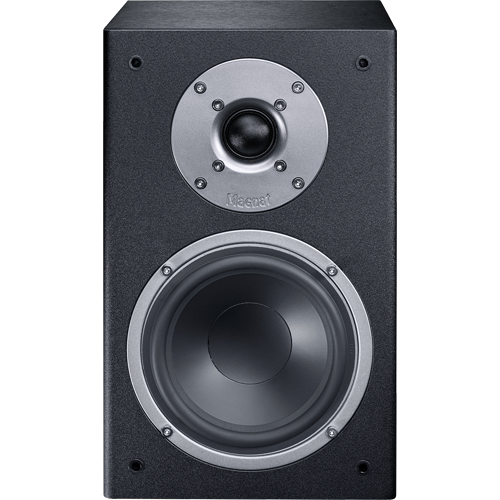

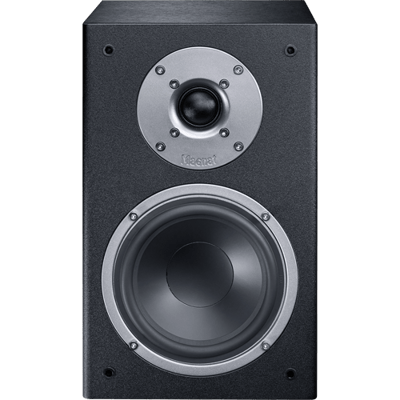

Magnat Monitor Reference 2A

ACTIVE SPEAKERS > COMPACT BOOKSHELF ACTIVE SPEAKER

BIG SOUND IN A COMPACT DESIGN

The Magnat Monitor Reference 2A is a compact yet powerful active bookshelf speaker designed for first-class sound with maximum flexibility. It offers numerous connection options, including Bluetooth® 5.0 with aptX®, HDMI ARC with CEC, and an integrated phono preamplifier. Thanks to its elegant black finish and versatile inputs, the 2A is the perfect solution for high-resolution music playback in smaller rooms - without compromising on sound quality.

Despite their compact dimensions, the Monitor Reference 2A bookshelf speakers are extremely powerful. The integrated Class-D amplifier delivers 2 x 35 watts RMS and a peak power of up to 2 x 75 watts. Thanks to their small size, they can be easily placed on a desk or a small console.

With HDMI ARC, Bluetooth® with aptX® Low Latency, and analog and optical inputs, the 2A adapts to almost any media source. From music streaming and TV connection to turntables, these speakers are equipped for every format - with minimal installation effort.

A high-quality MDF cabinet with a black, textured vinyl surface and a matte black baffle gives the 2A an elegant, understated appearance. The removable fabric cover and resonance-damping feet make it ideal for modern living rooms, offices, or compact media setups.

UNSERE TECHNOLOGIEN

FMAX TWEETER FOR CLEAR HIGHS

At the heart of the system is a 1″ / 25 mm Fmax tweeter, equipped with a specially developed sound guide system, which ensures optimized radiation and a broad, balanced soundstage. The powerful ferrite magnet system enables an exceptional dynamic range and precise high-frequency reproduction – ideal for music, movies, and gaming.

FE-DYNAMICS WOOFERS FOR POWERFUL BASS

The Magnat Monitor Reference 5A is equipped with an FE-Dynamics woofer/midrange driver, which features a coated paper cone with low partial vibrations. In combination with a distortion-optimized magnet system, this design enables deep, precise bass and clean midrange reproduction – thus ensuring dynamic, powerful sound across all music genres.

PRECISION ENGINEERING AND FULL CONNECTIVITY

The Magnat Monitor Reference 2A is equipped with a powerful Class D amplifier and offers 2 x 35 watts RMS as well as 2 x 75 watts peak power. Thanks to its comprehensive connectivity – including Bluetooth®, HDMI ARC, digital and analog inputs as well as an integrated phono preamplifier – it adapts flexibly to any setup.

Including a remote control, it is a true all-in-one hi-fi solution for music and home entertainment.

PERFORMANCE AT A GLANCE

Principle:

2-way bass reflex, active

Output power (RMS/MAX):

 2 x 35 / 2 x 75 W

Drivers:

1 x 12,7 cm (5″)  midrange woofer

1 x 25 mm (1”) dome tweeter

Dimensions (WxHxD):

17,5 x 29 x 20,5 cm
6,9″ × 11,4″ × 8,1″

Weight:

Active speaker: 4,4 kg / 9,7 lbs
Passive speaker: 3,8 kg / 8,4 lbs
