Floor-standing loudspeaker with integrated Dolby Atmos for powerful stereo sound and immersive 3D surround sound in a single system.
MONITOR S SERIES > FLOORSTANDING SPEAKER WITH INTEGRATED DOLBY ATMOS
FLOORSTANDING SPEAKER WITH HEIGHT SPEAKERS ON TOP FOR AN EVEN MORE INTENSE SOUND
The Monitor S80 ATM combines audiophile stereo performance with integrated Dolby Atmos for a true 3D sound experience. The 2.5-way design with two woofers and a coaxial tweeter ensures dynamic sound from floor to ceiling – ideal for music lovers and home theater fans alike.
The Monitor S80 ATM combines the powerful performance of a floorstanding speaker with integrated, upward-firing height channels for authentic Dolby Atmos® surround sound. The advanced design enables rich full-range sound combined with immersive 3D sound effects – all united in a single, elegant enclosure. Perfectly matched to the Monitor S series, the S80 ATM delivers deep bass, clear mids and precise highs, creating a dynamic, room-filling listening experience that elevates your home cinema to a new level.

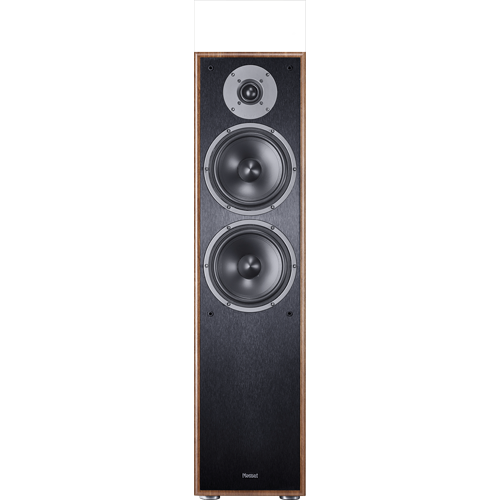

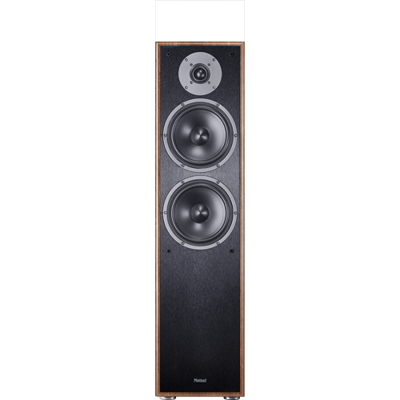

The Monitor S80 ATM is a powerful 2.5-way floorstanding speaker system with two 6.5″/17 cm woofers, a high-quality 1.1″/28 mm tweeter and a specially developed coaxial Atmos driver, which ensures deep bass, finely resolved mids and impressive precision in high-frequency reproduction.
For powerful low frequencies, the two woofers are equipped with coated paper cones, sturdy metal baskets and optimized magnet systems.
In the upper part of the speaker, the Dolby Atmos module uses a 0.75″/20 mm dome driven by a neodymium magnet in combination with a light, coated membrane, which ensures precise vertical sound radiation.
Made of low-resonance E1 MDF and equipped with a rounded Airflex bass reflex port for low-flow, clean bass. Available in classic black or elegant walnut finish. Rubber-damped feet and removable, acoustically transparent fabric covers make the loudspeaker the ideal choice for any living room.
OUR TECHNOLOGIES
HIGH-PRECISION HIGHS THANKS TO RING RADIATOR TWEETER
The 28 mm (1.1″) ring radiator tweeter dome of the Magnat Monitor S Series was developed for outstanding high-frequency performance. Thanks to its larger effective cone area compared to conventional designs, it generates higher sound energy – especially in the crucial crossover area between mid and high frequencies. This ensures smoother transitions, increased clarity and a more open, dynamic soundstage. Whether it's the fine shimmer of cymbals or the subtle nuances of voices – the tweeter delivers precise, extended highs and enriches every listening experience.
FE DRIVERS FOR DYNAMIC SOUND AND LOW DISTORTION
FE-Dynamics is Magnat's proprietary driver technology that combines an optimized ferrite magnet system with non-magnetic, well-ventilated baskets and a cooled voice coil. This design minimizes electrical and mechanical losses, improves thermal stability, and ensures efficient energy transfer. The result is precise, dynamic sound reproduction with low distortion, excellent control, and high power handling – ideal for clean, detailed sound even at high volumes.
POINTED CONE ON THE WOOFER FOR EVEN DEEPER BASS
The specially developed pointed cone in the center of the woofer plays a decisive role in the sound optimization of the Magnat Monitor S Series. By increasing the mechanical stability of the entire cone construction, this precision-manufactured element reduces distortion and unwanted vibrations – especially in the low-frequency range – thus ensuring tighter, cleaner and more precise bass.
At the same time, it improves the response in the mid-range and ensures more clarity and detail where voices and instruments come alive. The result is a balanced, immersive listening experience that far exceeds the expectations of its entry-level class.
DOLBY ATMOS HEIGHT CHANNEL SPEAKER
The Magnat S80 ATM features a built-in Dolby Atmos-certified height channel speaker integrated directly into the top of the cabinet. This upward-firing speaker is specifically engineered to reflect sound off the ceiling, creating a realistic overhead audio effect that adds a powerful vertical dimension to your home theater system. Designed for use in Dolby Atmos and DTS:X setups, the S80 ATM delivers an immersive, three-dimensional soundstage — bringing movies, games, and music to life with incredible clarity and spatial precision.
DOLBY ATMOS HEIGHT CHANNEL SPEAKERS
The Magnat S80 ATM features an integrated, Dolby Atmos-certified height channel speaker, which is built directly into the top of the cabinet. This upward-firing speaker was specially developed to reflect sound via the ceiling, thus creating a realistic overhead sound that adds a powerful vertical dimension to your home cinema system.
Designed for use in Dolby Atmos and DTS:X setups, the S80 ATM delivers an immersive, three-dimensional soundstage and brings movies, games and music to life with impressive clarity and spatial precision.
HIGH-QUALITY CONNECTIONS FOR LONG-LASTING PERFORMANCE
The Monitor S Series is equipped with high-quality, gold-plated and encapsulated screw terminals that ensure maximum conductivity and long-term signal stability. These robust connections provide a secure hold for bare cables as well as for banana plugs and guarantee a clean, loss-free connection to the amplifier – an essential prerequisite for maintaining the full sound fidelity of your audio system.
PERFORMANCE AT A GLANCE
Principle:
2.5-way bass reflex floorstanding speaker with
integrated Dolby Atmos® module
Equipment:
2 × 16.5 cm woofer/midrange driver
1 × 2.8 cm dome tweeter
1 × 11.5 cm coaxial speaker (Dolby Atmos)
Load capacity:
Main speaker: 160 / 300 watts
Dolby Atmos speaker: 40 / 80 watts
Impedance:
Main speaker: 4 ohms
Dolby Atmos speaker: 4 ohms
Frequency range:
Main speaker: 26–38,000 Hz
Dolby Atmos speaker: 60–28,000 Hz
Crossover frequencies:
Main speaker: 500 Hz / 3,000 Hz
Dolby Atmos speaker: 7,000 Hz
Amplifier power:
Main speaker: 30–300 W
Dolby Atmos speaker: 15–80 W
Efficiency (2.8 V/1 m):
Main speaker: 90 dB
Dolby Atmos speaker: 87 dB
Case surface:
Black / Walnut
Case dimensions (W × H × D):
21.5 × 86 × 27 cm
Accessories:
Removable fabric cover
Resonance-damping rubber feet
