3-way floorstanding speakers with a large frequency range and deep, controlled bass.

A FLOORSTANDING SPEAKER DESIGNED FOR PRECISION IN EVERY HERTZ

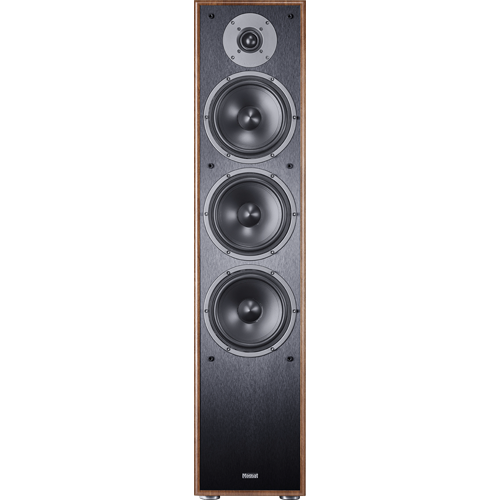

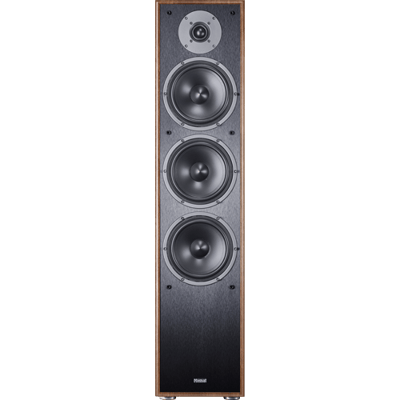

The Monitor S70 delivers full-fledged sound for hi-fi and home theater systems. With two 17 cm woofers, a dedicated midrange driver and a precise 28 mm dome tweeter, it creates a vibrant, detailed soundstage with a powerful bass foundation and balanced clarity.

The Monitor S70 is a classic 3-way floorstanding speaker that combines two 17 cm woofers, a dedicated midrange driver and a high-quality 28 mm (fabric dome tweeter). Optimized for music and home theater applications, it offers full-fledged sound with smooth transitions and dynamic, energetic reproduction.

Our advanced FE-Dynamics drivers feature coated diaphragms and stabilized dust caps. The crossover is optimized for both amplitude and phase, ensuring lifelike reproduction across the entire frequency spectrum.

The solid E1 MDF construction, rounded Airflex bass reflex port and removable front covers complete a robust, attractive overall package that blends harmoniously into modern living spaces.

OUR TECHNOLOGIES

HIGH-PRECISION HIGHS THANKS TO RING RADIATOR TWEETER

The 28 mm ring radiator tweeter dome of the Magnat Monitor S series was developed for outstanding high-frequency performance. Thanks to its larger effective diaphragm area compared to conventional designs, it generates higher sound energy - especially in the critical transition range between midrange and high frequencies. This ensures smoother transitions, increased clarity and a more open, dynamic soundstage. Whether it's the fine shimmer of cymbals or the subtle nuances of voices - the tweeter delivers precise, extended highs and enriches every listening experience.

FE DRIVERS WITH POINTED CONE FOR DYNAMIC SOUND AND LOW DISTORTION

FE-Dynamics is Magnat's proprietary driver technology that combines an optimized ferrite magnet system with ventilated baskets and a cooled voice coil. This minimizes losses, increases stability and ensures efficient energy transfer - for a dynamic, low-distortion sound with excellent control, even at high volumes.

The tapered cone dome in the center of the woofer increases the stability of the diaphragm and reduces vibrations and distortions, especially in the bass range. At the same time, it improves clarity in the midrange, making voices and instruments more detailed. The result is tight bass, clean mids and a balanced, immersive sound that exceeds expectations in this class.

HIGH-QUALITY CONNECTIONS FOR LONG-LASTING PERFORMANCE

The Monitor S Series is equipped with high-quality, gold-plated and encapsulated screw terminals that guarantee maximum conductivity and long-term signal stability. These robust connections offer a secure hold for bare cables as well as banana plugs and guarantee a clean, lossless connection to the amplifier - an essential prerequisite for maintaining the full fidelity of your audio system.

BASS REFLEX OPENINGS FOR CLEAN AND DEEP BASS

The Monitor S Series features a precisely tuned bass reflex design with a flow-optimized, widened port. This design minimizes air turbulence and flow noise, enabling deeper and better controlled bass even at higher volumes. The result is a powerful low-frequency response with exceptional clarity and efficiency.

PERFORMANCE AT A GLANCE

Principle:

3-way bass reflex floorstanding speaker

Power handling:

120 / 240 Watt

Impedance:

4 – 8 Ohm

Frequenzgang:

19 – 38.000 Hz

Crossover frequencies:

450 Hz / 3.500 Hz

Efficiency:

91 dB

Components:

2 × 17 cm woofer

1 × 17 cm midrange loudspeaker

1 × 28 mm dome tweeter

Housing dimensions (W × H × D):

21,5 × 96 × 31 cm

Weight:

15 kg

Accessories:

Removable fabric cover

Resonance-damping rubber feet

DOCUMENTS FOR DOWNLOAD

Datasheet

Operating instructions

Safety data sheet
