Compact center speaker for clear, balanced dialogue reproduction.
CLEAR DIALOGUE AND BALANCED HOME CINEMA SOUND

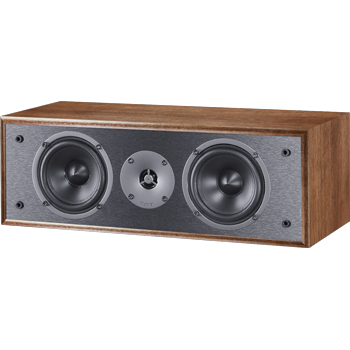

The Magnat Monitor S12C is a horizontal center speaker designed for crystal-clear dialogue and precise midrange reproduction in home theater systems. With its two 4.5″/11 cm woofers and a 0.5″/13 mm dome tweeter, the S12C ensures that every spoken word and every cinematic detail is reproduced clearly and distinctly.
With two 11 cm woofers and a 13 mm Mylar dome tweeter, the S12 C delivers excellent voice clarity and presence – even in smaller home theater spaces.
The compact housing is made of E1-MDF, is equipped with rubber feet and has a removable front cover. The perfect sonic match to the S-Line ensures homogeneous and coherent reproduction in the front area.
Combine the S12C with the S30 or S10B front speakers and the S10D as surround speakers to create a harmoniously matched surround sound system.
OUR TECHNOLOGIES
CLEAR HIGHS WITH PRECISE TWEETER TECHNOLOGY
Equipped with a 0.5″ ultra-light Mylar dome and a powerful ferrite magnet, the Monitor S12C delivers clear, detailed highs with exceptional transparency. The highly efficient design ensures a fast, precise response, brilliant high-frequency reproduction and true-to-life sound reproduction – ideal for movies and music alike.
FE CHASSIS WITH POINTED CONE FOR DYNAMIC SOUND AND LOW DISTORTION
FE-Dynamics is Magnat's proprietary chassis technology that combines an optimized ferrite magnet system with ventilated baskets and effective voice coil cooling. This minimizes losses, increases stability and ensures efficient energy transfer - for a dynamic, low-distortion sound with excellent control, even at high volumes.
The Pointed Conical Dome in the center of the woofer additionally stabilizes the diaphragm and reduces vibrations and distortions, especially in the bass range. At the same time, it improves the clarity of the mids, making voices and instruments sound more detailed. The result is tighter bass, cleaner mids and a balanced, immersive sound that sets new standards in this class.
TIGHT, PRECISE BASS
The S12C features a closed cabinet design that provides clean, precise bass with excellent control. By dispensing with a bass reflex tube, this model offers consistent sound performance – regardless of placement. Ideal for wall mounting or compact spaces.
Look forward to powerful, clearly defined bass reproduction with transparency and balance – perfectly suited for music and home cinema alike.
HIGH-QUALITY CONNECTIONS FOR LONG-LASTING PERFORMANCE
The Monitor S series is equipped with high-quality, gold-plated and encapsulated screw terminals that guarantee maximum conductivity and long-term signal stability. These robust connections offer a secure hold for bare cable ends as well as banana plugs and ensure a clean, lossless connection to your amplifier – crucial for maintaining the full fidelity of your audio system.
PERFORMANCE AT A GLANCE
Principle:
2-way bass reflex, center speaker
Load capacity:
75 / 150 watts
Impedance:
4 – 8 ohms
Frequency response:
42 – 32,000 Hz
Crossover frequency:
3,400 Hz
Sensitivity:
89 dB
Components:
2 × 11 cm woofer-midrange
1 × 13 mm dome tweeter
Recommended amplifier power:
20 – 50 watts
Cabinet surface:Black
Walnut
Weight:
3,9 kg / 8,6 lbs
Dimensions (W × H × D):
42 × 14,8 × 19 cm
DOCUMENTS FOR DOWNLOAD
DOCUMENTS FOR DOWNLOAD
DOCUMENTS FOR DOWNLOAD
Data sheet
Operating instructions
Safety data sheet
