SURROUND SOUND, DEVELOPED FOR THE CINEMA

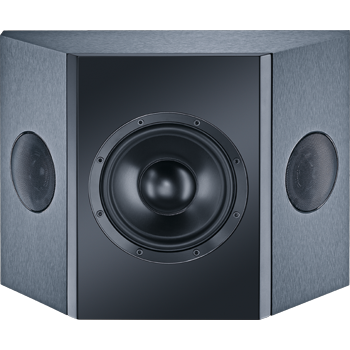

The Magnat Cinema Ultra RD 200-THX is a THX®-Ultra2-certified dipole loudspeaker designed for authentic surround effects in dedicated home cinema environments. With 2-way chassis arrangements on two opposing baffles, it creates a wide, non-localizable sound field – exactly as sound engineers intended in the cinema.
The Cinema Ultra RD 200 is a high-quality dipole surround speaker designed for an immersive sound experience in true cinema quality. THX®-Ultra2 certified, it was conceived as part of the Magnat Cinema Ultra System with the utmost care to meet the highest audiophile standards.
Visually, the speaker embodies the characteristic Cinema Ultra stealth design: a deep black, silk-matt lacquered, offset baffle meets an anthracite-colored cabinet with a brushed metal structure and a matt black front, accented by a black chrome gloss ring.
Equipped with the specially developed chassis of the LCR 100-THX front speakers, the RD 200 ensures perfect sonic homogeneity within your home cinema system. Its unique dipole design and precisely tuned crossover create a diffuse, non-localizable sound field that surrounds you with a dense, enveloping sound and impressively intensifies every film, gaming or concert experience.
With its sleek, compact cabinet and wall-mount optimized design, the Cinema Ultra RD-200 THX seamlessly integrates into any home theater setup. Whether used as a side or rear surround speaker – it meets all THX®-Ultra2 specifications and stands for uncompromising sound quality.
Designed for perfect interaction with the LCR 100-THX and the SUB 300-THX, the RD 200-THX envelops you with powerful, studio-level soundscapes – precise, controlled, and impressive. A must-have for demanding home cinema enthusiasts.
For flexible installation, the RD 200 is equipped with a sophisticated wall mounting system that complies with the VESA standard 100 × 200 mm (M4). Robust metal brackets and silicone spacers ensure secure, low-resonance wall mounting. This well-thought-out combination of form and function makes the RD 200 the ideal choice for demanding high-end home cinema setups.
OUR TECHNOLOGIES
CRYSTAL CLEAR HIGHS
The tweeter of the Magnat Cinema Ultra RD 200 was developed to deliver exceptional clarity and the finest high-frequency details while meeting the strict requirements of the THX®-Ultra2 standard. It features an oversized 1.65″/4 cm high-performance polyfiber compound cone, ensuring precise and dynamic high-frequency reproduction over a wide frequency range.
A computer-optimized waveguide baffle with an integrated diffuser improves dispersion behavior and creates a generous, immersive soundstage with uniform sound distribution. Driven by a powerful neodymium magnet system, the tweeter offers high efficiency and excellent performance. The precisely wound voice coil is mounted on a ventilated aluminum former, ensuring excellent thermal stability and long-term reliability.
Housed in a massive die-cast aluminum enclosure with a large pole core opening and multiple damped coupling chambers, the design achieves a particularly low resonant frequency and effectively minimizes distortion. A removable cover completes the design and ensures an elegant, subtle appearance – without compromising acoustic transparency.
DETAILED MID-RANGE FREQUENCIES
At the heart of the Magnat Cinema Ultra RD 200 is a powerful woofer/mid-range driver, developed for maximum precision and clarity. Its flow-optimized die-cast aluminum basket offers exceptional stability while reducing compression effects and mechanical resonances. A powerful magnet system with integrated inductance control rings keeps distortion to a minimum, even at high volumes.
The voice coil is extensively ventilated to ensure excellent heat dissipation, high operational safety, and long-term reliability even under continuous load. A stiff ceramic-aluminum sandwich diaphragm with a matching dust cap ensures extremely precise sound reproduction across the entire frequency range. Securely fastened to the baffle with eight screw points, the driver is firmly anchored and guarantees vibration-free performance and exact acoustic control – ideal for the most demanding home cinema environments.
ADVANCED CROSSOVER
The Magnat Cinema Ultra RD 200 is equipped with a highly sophisticated crossover, carefully designed to meet the demanding specifications of the THX®-Ultra2 standard. Precisely amplitude- and phase-optimized, it ensures seamless integration of the drivers and a balanced, natural sound reproduction across the entire frequency range.
A high-quality single-wiring terminal with gold-plated, acrylic-sealed contacts guarantees maximum signal integrity and long-term durability with minimal contact resistance. This precisely tuned crossover design is a crucial factor for the speaker's immersive, cinematic performance.
PERFORMANCE AT A GLANCE
Principle:
2-way, closed, THX®-Ultra2 certified dipole surround speaker system
Power Handling (RMS/MAX):
150 / 240 watts
Impedance:
4 – 8 Ohm
Frequency Response:
80–27,000 Hz
Drivers:
170 mm woofer/mid-range driver
2 × 42 mm (dome tweeters)
Efficiency (2.8V/1m):
89 dB
Crossover Frequencies:
1,500 Hz
Recommended Amplifier Power:
> 40 Watts
Surface:
Front: Black, silk-matt
Cabinet: structured film – Anthracite
Weight:
7.5 kg
Dimensions:
40 × 30 × 16 cm
Accessories:
Fabric acoustic covers with magnetic attachment
