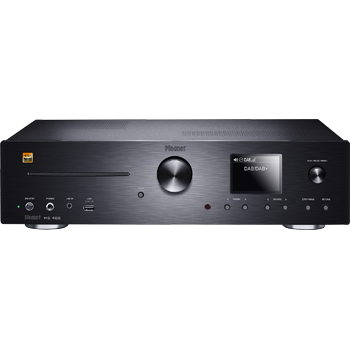

All-in-one High-End stereo network receiver with powerful sound and comprehensive connectivity.

The robust all-metal housing of the MC 400 with brushed aluminum front panel is designed for durability and at the same time impresses with its high-quality appearance. Solid aluminum controls ensure intuitive operation, while the sharp 2.8-inch TFT color display shows cover art and status information in impressive detail. Thanks to stable, rubber-damped feet, the device ensures vibration-free operation and thus combines functionality with timeless design that integrates seamlessly into any audio setup.

Equipped with bipolar configured power transistors that deliver up to 100 watts of peak power per channel, the MC 400 offers powerful, dynamic sound in hi-res quality. Numerous digital and analog inputs - including Phono MM, HDMI, optical, coaxial and USB - allow the connection of virtually all audio sources. Integrated Bluetooth 5.0 with Qualcomm® aptX™ HD and network streaming via Ethernet and WLAN ensure flawless wireless playback and multiroom audio.

The operation of the MC 400 is particularly convenient thanks to the supplied remote control or via the special Magnat app for iOS and Android. Stream your favorite music easily via Spotify Connect and other services, manage multiroom setups and enjoy internet radio. The MC 400 combines classic HiFi functions with modern digital comfort, making it the perfect centerpiece of any high-end stereo system.

OUR TECHNOLOGIES

POWERFUL AMPLIFICATION AND FLEXIBLE CONNECTION OPTIONS

The Magnat MC 400 delivers 60 watts of sine wave power per channel into 4 ohms, ensuring clear and dynamic sound reproduction. It offers versatile connectivity options, including two analog high-level inputs, a 3.5 mm front connector for portable devices, and digital inputs (1x optical, 1x coaxial) with support for hi-res audio up to 192 kHz/24 bit.

Wireless streaming is via Bluetooth® 5.0 with support for Qualcomm® aptX™ HD, enabling high-quality audio transmission with low latency. Other outputs include an analog subwoofer output, a record-out with fixed level, and a 6.3 mm headphone jack for undisturbed listening.

The MC 400 has a sophisticated power supply with shielded toroidal transformer and an efficient standby mode that keeps power consumption low when idle.

VERSATILE AUDIO SYSTEM WITH ADVANCED TUNER, CD AND NETWORK FUNCTIONS

The Magnat MC 400 features a high-quality digital DAB/DAB+ and FM tuner with RDS and 40 freely programmable station presets each. An automatic station search ensures comfortable and uncomplicated radio enjoyment.

The integrated CD player supports CD audio, MP3 and WMA formats and offers practical functions such as repeat and random playback as well as track programming for up to 99 tracks. CD text and ID3 tags are also supported, allowing easy navigation.

Connect effortlessly to your favorite music through Internet radio, Spotify Connect®, Tidal Connect® and DLNA streaming. The integrated multiroom function can be conveniently controlled via the Magnat Streaming app, offering full control over your connected music experience.

PREMIUM PROCESSING AND USER-FRIENDLY DESIGN

Housed in a robust all-metal housing with a brushed aluminum front and solid aluminum controls, the MC 400 combines durability with a high-quality, elegant look. Stable feet with damping rubber inserts effectively reduce vibrations.

The brilliant, dimmable 320 x 240 pixel full color display ensures a clear and easy-to-read display under all lighting conditions. All functions can be conveniently controlled via the supplied system remote control, enabling comfortable and intuitive operation.

PERFORMANCE AT A GLANCE

Principle:
CD player

Compatible disc formats:
CD-Audio, CD-R, CD-RW, MP3, WMA

Amplifier output power:

Rated power:
20 Hz – 20 kHz, THD < 1.0 %, 4 Ω: 2 x 60 W
20 Hz – 20 kHz, THD < 1.0 %, 8 Ω: 2 x 40 W

Peak power:
1 kHz, 4 Ω: 2 x 100 W

Frequency response:

CD / Streamer / Aux / Line:
10 Hz – 80 kHz (–3,0 dB)
20 Hz – 20 kHz (+/–0,5 dB)

Phono:
20 Hz – 20 kHz (+/–0,8 dB)

Subsonic filter:
16 Hz, 18 dB/octave

Signal-to-noise ratio (S/N):

CD / Streamer / Aux / Line: 98 dB (A)

Digital inputs: –

Phono (MM): 82 dB (A)**

Digital inputs:

1 x HDMI Version 1.4 (PCM)
1 x optical (Toslink™)
1 x coaxial (Cinch)

Supported sampling rates:
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

Supported bit depths:
16 / 24 Bit

1 x USB-A Version 1.1, 5 V/DC 1000 mA
Up to 8 GB (FAT16/32)
Supported formats: MP3 and WMA

Analog inputs:

1 x Phono
1 x Line In (3,5 mm)
2 x AUX In (Cinch/RCA)

Analog outputs:

1 x headphone output (6.3 mm jack)
1 x subwoofer output (Cinch/RCA)
1 x stereo REC output with fixed level

Color display:

320 x 240 pixels / 24-bit full color monitor

Network:

WLAN:
2.4 GHz, 802.11 b/g/n, WPA2, 300 Mbit/s (up to 192 kHz / 24 Bit)

LAN:
RJ45

Supported formats:
MP3, WMA, AAC, FLAC, APE, WAV

Bluetooth® input:

Bluetooth® 5.0 / Qualcomm® aptX® HD

Dimensions (W x H x D):

Main unit:
43.3 x 11.5 x 30.1 cm

Incl. controls and connections:
43.3 x 11.5 x 34.6 cm

Remote control:
4.5 x 17.5 x 2 cm

Weight:

6.9 kg

Accessories:

Power cord, remote control

Frequency range:

32 – 52.000 Hz
