Powerful, weatherproof speaker for indoor and outdoor use.

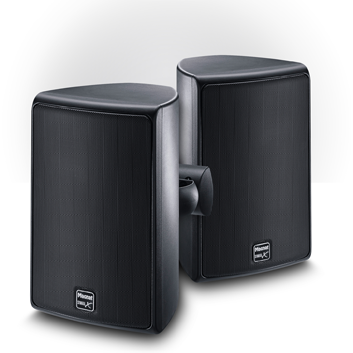

The Magnat Symbol X 160 is the flagship of the Symbol X series. It is equipped with a 17 cm woofer/midrange driver and a 25 mm dome tweeter and delivers an output of up to 220 watts to effortlessly fill even large rooms with sound.

Designed for indoor and outdoor use, the Symbol X 160 is IPX5 splash-proof and features a robust plastic housing and a corrosion-resistant front grille. The integrated wall mounting system allows for flexible alignment and ensures optimum listening conditions in any environment.

The Symbol X 160 from Magnat is the perfect solution for professional use in bars and restaurants, but is also ideal for private outdoor areas and home recording studios.

In the studio, it delivers precise sound for mixing and mastering, while in bars and restaurants it provides clear, consistent sound, creating a pleasant atmosphere. Thanks to its robust, weatherproof construction, it is also ideal for outdoor use in the home and offers excellent sound quality that reliably withstands the elements.

Every component of the Symbol X 160 is designed for maximum durability: IPX5 certified, equipped with PET dome tweeters and polypropylene woofers, as well as encapsulated connection terminals for reliable long-term operation under changing environmental conditions.

Elegantly designed and available in black or white, the Symbol X 160 offers high optical flexibility. The adjustable wall bracket enables discreet installation in both private and commercial premises.

Thanks to the integrated wall bracket, the Symbol X 160 can be aligned both horizontally and vertically. Available in elegant black or white, it blends harmoniously into any modern environment and delivers a powerful, immersive sound.

OUR TECHNOLOGIES

PRECISE SOUND, POWERFUL PERFORMANCE

The Symbol X series delivers high-end audio thanks to state-of-the-art technology. A PET dome tweeter with a highly efficient neodymium magnet system ensures crystal-clear trebles. The robust woofer/midrange unit combines a polypropylene cone with a long-throw rubber surround and enables deep, dynamic bass and detailed mids.

Designed for precision and durability, Symbol X is the perfect choice for audiophiles looking for powerful performance in any environment.

HIGH-PERFORMANCE LOUDSPEAKER FOR INDOOR AND OUTDOOR USE

The Symbol X is housed in a solid, low-resonance plastic enclosure with a corrosion-resistant front cover and is IPX5 splash-proof - ideal for indoor and outdoor use. The bass reflex design improves bass reproduction, while the integrated wall mounting system enables flexible horizontal or vertical installation.

HIGH QUALITY COMPONENTS

A meticulously developed, phase- and amplitude-optimized crossover ensures seamless frequency separation. High-quality components, gold-plated screw terminals and dynamic overload protection guarantee long-lasting, distortion-free performance.

PERFORMANCE AT A GLANCE

Equipment (chassis):

1 × 17 cm (6.5″) mid/bass driver

1 × 25 mm (1″) dome tweeter

Load capacity (RMS / Max):
110 / 220 W

Impedance:

4 – 8 Ω

Frequency response:

30 – 36,500 Hz

Crossover frequency:
3,400 Hz

Efficiency:

92 dB

Amplifier power:
20 – 220 W

Protection class:

IPX5

Colors:

Black / White

Dimensions (W × H × D):

18.6 x 31 x 24.2 cm

Weight:

3.3 kg

DOCUMENTS FOR DOWNLOAD

Datasheet

 Operating instructions

Safety data sheet

The Symbol X 130 is the ideal choice for smaller rooms.
