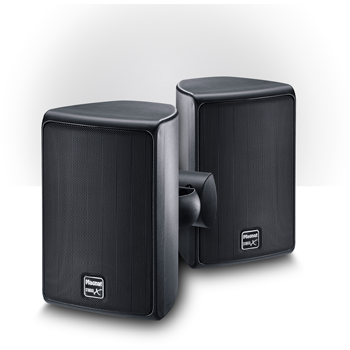

Compact all-round loudspeaker with weatherproof construction.

Whether outdoors on the terrace, wall-mounted in the studio or as part of a sophisticated hi-fi system in the living room - the Symbol X 130 is equipped with a 5.25″ / 13 cm mid/bass driver and a 0.75″ / 20 mm PET dome tweeter. With a peak power of 200 watts, it ensures clear, powerful sound.

The splash-proof housing, certified to IPX5, guarantees long-lasting reliability, while the compact design and integrated wall mounting system enable seamless installation indoors and outdoors.

Thanks to the professional crossover technology (APOC), the Symbol X 130 offers excellent time alignment, high clarity and a balanced tonal balance. Its high efficiency of 90 dB enables loud, distortion-free reproduction, even when using amplifiers with moderate power.

With a robust plastic housing, a corrosion-resistant front cover and IPX5 splash protection, this loudspeaker is ideally suited for use in various weather conditions on balconies, terraces or by the pool. Encapsulated connection terminals offer additional protection against moisture and dust.

Elegantly designed and available in black or white, the Symbol X 160 offers high optical flexibility. The adjustable wall bracket enables discreet and flexible installation in both private and commercial spaces.

Thanks to the integrated wall bracket, the Symbol X 130 can be aligned both horizontally and vertically. Available in elegant black or white, it blends harmoniously into modern environments and at the same time impresses with powerful, immersive sound.

OUR TECHNOLOGIES

PRECISE SOUND, POWERFUL PERFORMANCE

The Symbol X series delivers high-end audio thanks to state-of-the-art technology. A PET dome tweeter with a highly efficient neodymium magnet system ensures crystal-clear highs. The robust woofer/midrange unit combines a polypropylene diaphragm with a long-stroke rubber surround and enables deep, dynamic bass and detailed mids.

Designed for precision and durability, Symbol X is the ideal choice for audiophiles looking for powerful performance in every application.

HIGH-PERFORMANCE LOUDSPEAKERS FOR INDOOR AND OUTDOOR USE

The Symbol X is housed in a solid, low-resonance plastic housing with a corrosion-resistant front cover and is protected against splash water according to IPX5 - ideal for indoor and outdoor use. The bass reflex design improves bass reproduction, while the integrated wall mounting system enables flexible horizontal or vertical installation.

HIGH QUALITY COMPONENTS

A complexly developed, phase- and amplitude-optimized crossover ensures seamless frequency separation. High-quality components, gold-plated screw terminals and dynamic overload protection guarantee long-term, distortion-free performance.

PERFORMANCE AT A GLANCE

Equipment (chassis):

1 × 13 cm (5.25″) mid/bass driver

1 × 20 mm (3/4″) dome tweeter

Power handling (RMS / Max):
90 / 200 W

Impedance:

4 – 8 Ω

Frequency response:
34 – 36.500 Hz

Crossover frequency:
3.800 Hz

Efficiency
90 dB

Amplifier power:
20 – 200 W

Protection class:

IPX5

Housing colors:
Black / White

Weight:

2,4 kg

Dimensions (W × H × D):

15,1 x 24,9 x 19,7 cm

DOCUMENTS FOR DOWNLOAD

Datasheet

Operating instructions

Safety datasheet

For larger rooms, the Symbol X 160 is the ideal choice.
