Powerful ceiling speaker with complete moisture resistance and swiveling tweeter.
HIGH-PERFORMANCE CEILING SPEAKER FOR ANY ENVIRONMENT WITH 20 CM WOOFER

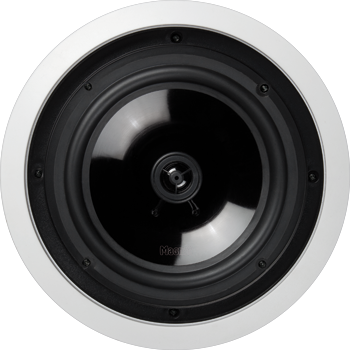

The Magnat Interior ICP 82 brings uncompromising sound quality directly to your ceiling. Developed for those who expect powerful, immersive sound without sacrificing harmonious room design, this powerful 2-way ceiling speaker delivers room-filling, clear reproduction in almost any environment - including damp rooms.
Its robust construction, flexible installation options and precisely tuned components make the ICP 82 the ideal choice for multi-room audio systems, custom home cinema solutions or demanding commercial installations.
Equipped with a powerful 8″ / 20 cm polypropylene woofer and a 0.75″ / 20 mm PET dome tweeter, the ICP 82 can be flexibly adapted to different installation situations thanks to its 35° swiveling design.
Whether in the living room, bathroom or pool lounge, this model ensures rich, distortion-free sound and enables individual fine-tuning of the highs via the 3-level tweeter level adjustment.
Developed for high performance and maximum durability, the ICP 82 features coated membranes, long-stroke rubber surrounds and a robust clamping mechanism for easy and secure installation.
From modern living spaces to spa and wellness areas, it is designed to withstand moisture and deliver consistently high sound quality over the long term.
Thanks to its flat, protective front grille and discreet integration into the ceiling, the ICP 82 blends harmoniously into minimalist and modern living concepts.
Enjoy audiophile clarity and pleasant sound warmth - without any visible technology. An ideal combination of function and form.
UNSERE TECHNOLOGIEN
TWEETER TECHNOLOGY
The Magnat ICP series is equipped with high-quality PET dome tweeters that guarantee clear and detailed high-frequency reproduction.
All models have swivel technology, which allows the tweeter to be swiveled by up to 35°. This allows the sound radiation to be optimally adapted to the room layout and listening position.
MEDIUM AND LOW TONES
All ICP models have a moisture-resistant woofer system with a hairline polypropylene diaphragm and a long-stroke rubber surround. This concept ensures rich, controlled bass and precise midrange reproduction - even in acoustically challenging environments.
Designed for high excursion with minimal distortion, the drivers are ideal for music as well as clear voice reproduction. Thanks to their moisture-resistant construction, they are also suitable for use in bathrooms or covered outdoor areas.
CROSSOVER AND CONNECTIONS
Each model in the ICP series has a precisely developed crossover with high-quality components and three-stage tweeter adjustment. This allows the sound to be optimally adjusted to the room acoustics and installation position.
Gold-plated spring terminals guarantee secure and low-resistance speaker connections, while the stable front grille ensures long-term durability and reliable protection. A special clamping mechanism
PERFORMANCE AT A GLANCE
Principle:
2-way in-wall/in-ceiling loudspeaker
Power handling:
80 / 140 watts
Impedance:
8 Ohms
Frequency response:
34 – 24,000 Hz
Crossover frequency:
4,000 Hz
Sensitivity:
91 dB
Drivers:
1 x 20 cm / 8“ woofer
1 x 19 mm / 0.75“ PET dome tweeter (swivelling)
Amplifier output:
20 – 160 watts
Dimensions (outer):
27,5 cm / 10,8“ diameter
Cutout size:
24 cm / 9,5“
Mounting depth:
10,2 cm / 4“
Weight:
1,4 kg / 3 lbs
Accessories:
Cutting template
grille
DOCUMENTS FOR DOWNLOAD
Data sheet
Operating instructions
Safety data sheet
