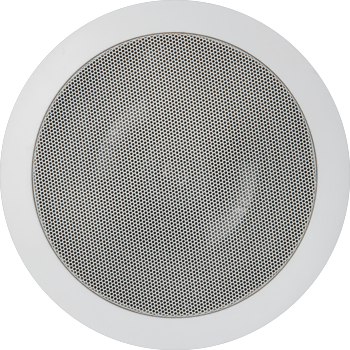

Compact ceiling speaker with high-end sound for limited installation spaces.

GREAT SOUND FOR SMALL ROOMS – WITH 13 CM WOOFER

The Interior ICP 52 is the most compact model in the Performance series - but its size is deceptive. Thanks to high-quality components and a moisture-resistant construction, it delivers clear, room-filling sound, even under demanding acoustic conditions.

Ideally suited for kitchens, hallways, bathrooms or office installations.

The ICP 52 is equipped with a 13 cm polypropylene woofer and a 20 mm PET dome tweeter, which is mounted on a swiveling bracket. This allows the sound dispersion to be adjusted by up to 35°.

The high-quality crossover has a three-stage level adjustment in the high-frequency range, so that the loudspeaker can be optimally adapted to different room acoustics.

The coated diaphragms and resistant materials of this model allow safe installation even in bathrooms or spa areas. Even with high humidity, the audio performance remains reliable and constant.

The ICP 52 is designed for flush integration into the ceiling and comes with a protective design cover. A secure clamping mechanism enables quick and easy installation.

OUR TECHNOLOGIES

TWEETER TECHNOLOGY

The Magnat ICP series (ICP 82 / 62 / 52) is equipped with high-quality PET dome tweeters that ensure clear and detailed high-frequency reproduction.

The ICP 52, 62 and 82 models have a swivel technology with which the tweeter can be swiveled by up to 35°. This allows the sound dispersion to be optimally adapted to the room layout and listening position.

MIDRANGE AND BASS

All ICP models have a moisture-resistant woofer system with a hairline polypropylene diaphragm and a long-throw rubber surround. This design ensures a rich, controlled bass and precise midrange reproduction - even in acoustically demanding environments.

Designed for high excursion with minimal distortion, the drivers are suitable for both music enjoyment and clear voice reproduction. Thanks to their moisture-resistant construction, they are also ideal for use in bathrooms or covered outdoor areas.

CROSSOVER AND CONNECTIONS

Each model in the ICP series is equipped with a precisely developed crossover that includes high-quality components and three-stage high-frequency adjustment. This allows the sound to be optimally adapted to the room acoustics and installation position.

Gold-plated push terminals ensure secure, low-resistance speaker connections, while the stable front grille guarantees long-term protection and high durability. A special clamping mechanism also enables quick and secure installation - without any additional mounting material.

PERFORMANCE AT A GLANCE

Principle:

2-way in-wall/in-ceiling loudspeaker

Power handling:

60 / 100 watts

Impedance:

8 Ohms

Frequency response:

38 – 24,000 Hz

Crossover frequency:

4,000 Hz

Sensitivity:

89 dB

Drivers:

1 x 13cm (5,25″) woofer
1 x  20 mm (0.75“) PET dome tweeter (swivelling)

Amplifier output:

20 – 120 watts

Dimensions (outer):

20,2 cm (8“) diameter

Cutout size:

16,8 cm (6,6“)

Mounting depth:

8,1 cm (3,2“)

Weight:

1,0 kg / 2,2 lbs

Accessories:

Cutting template
grille
