Powerful, discreetly integrated built-in speaker with carbon fiber diaphragm and adjustable tweeter for room-specific adjustment

DISCREET PERFORMANCE FOR HIGH-END SOUND

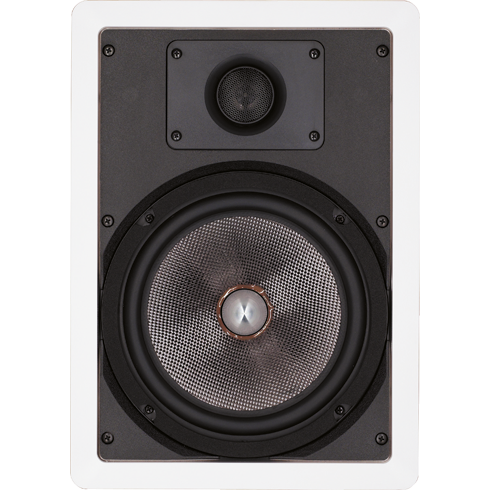

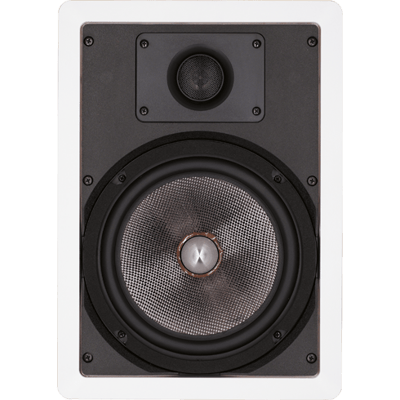

The Magnat Interior IW 810 is a powerful 2-way speaker designed for seamless integration into walls or ceilings. Designed for high-end home cinemas, architectural installations or multi-room audio systems, the IW 810 delivers clear, dynamic and distortion-free sound with minimal visual presence.

Equipped with an 8” / 20 cm woofer made of carbon/fiberglass composite material, the IW 810 produces precise, contoured bass and detailed mids. The 1”/25 mm aluminum tweeter with neodymium magnet can be aligned horizontally and vertically, enabling optimal sound distribution in a wide variety of acoustic environments.

The IW 810 blends harmoniously into walls or ceilings and preserves the aesthetics of the room while delivering powerful, room-filling sound. It is the ideal choice for anyone who wants to enjoy immersive sound without compromising on design.

The swiveling dome tweeter can be aligned by 10–15°. This enables individual adaptation to the room, so that the sound radiation can be optimally adjusted to different seating positions or acoustic conditions.

Thanks to a secure clamping mechanism and high-quality connection terminals, installation is quick and easy with few tools. The loudspeaker sits permanently firmly and guarantees reliable and contact-stable performance for years.

OUR TECHNOLOGIES

TWEETER TECHNOLOGY

The Magnat IW 810 is equipped with a 25 mm aluminum dome tweeter, which is powered by a powerful neodymium magnet system and ensures exceptional high-frequency clarity and the finest detail resolution.

The tweeter is designed to swivel and enables precise alignment of the sound radiation. It also has a switchable level adjustment, so that the sound image and high-frequency component can be optimally adapted to the room acoustics and installation position.

MIDRANGE AND BASS

For the reproduction of mids and bass, the IW 810 relies on specially developed chassis with stiff but light carbon fiber diaphragms. In combination with phase plugs, this design guarantees a fast, low-distortion response and excellent control in the low and mid-range.

This creates a powerful and precise sound - even at higher volumes.

FREQUENCY SWITCH AND CONNECTIONS

The loudspeaker is equipped with a high-quality APOC crossover (Amplitude and Phase Optimized Crossover), which guarantees seamless connection of the chassis, precise spatial imaging and a balanced frequency response.

A solid, gold-plated connection terminal ensures a stable, low-resistance connection and long-term reliability.

PERFORMANCE AT A GLANCE

Equipment:

1 x 20 cm (8″) woofer

1 x 25 mm (1″) tweeter

Load capacity (RMS/Max):

100 / 180 W

Impedance:

4 – 8 Ω

Frequency response:

32 – 32.000 Hz

Crossover frequency:

3,500 Hz

Efficiency:

91 dB

Installation depth:

9 cm

External dimensions (W x H):

25,5 x 35,8 cm

Cutout (W x H):

22,4 x 33,5 cm
