Lyngdorf Audio LS-1000
Reduced floor and ceiling reflections and uniform sound energy across the room

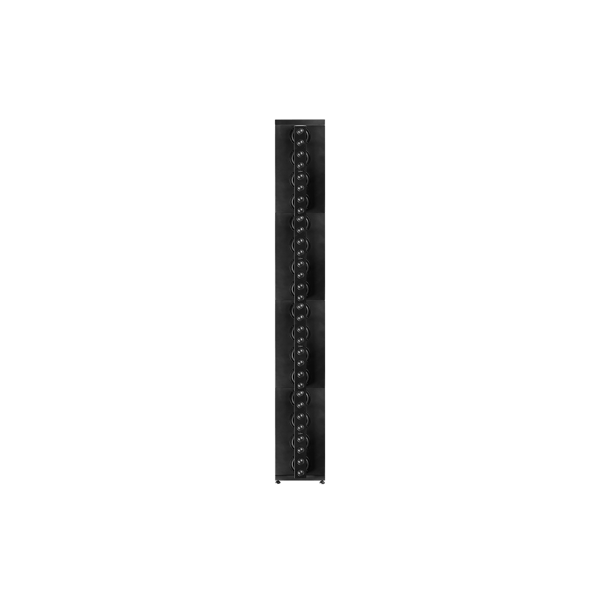

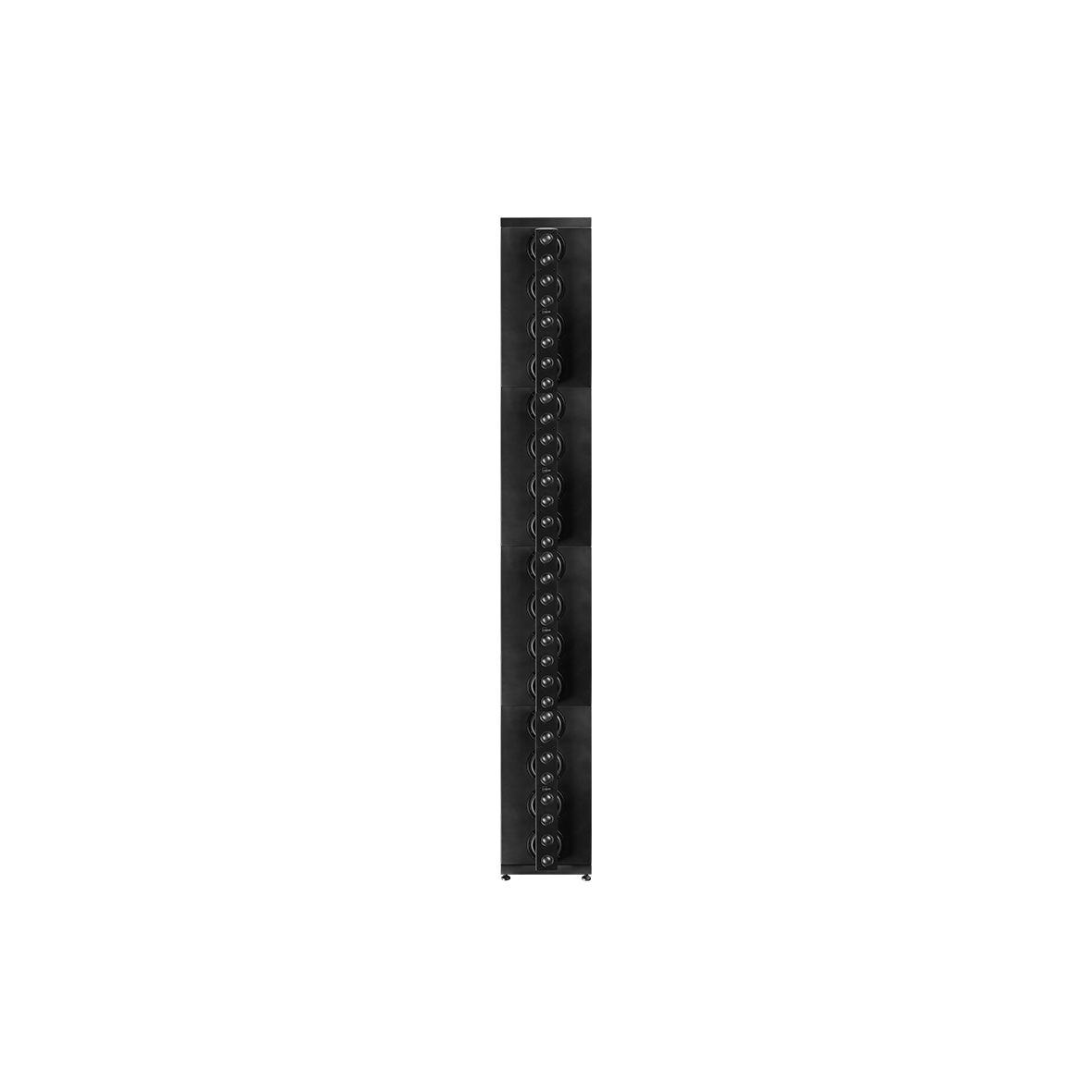

The LS-1000 consists of multiple identical drivers in a vertical line source array. Compared to conventional point-source speakers, a line source minimizes the effect of floor and ceiling reflections by restricting the vertical sound dispersion. Listeners will hear more of the speaker and less of the room. The LS-1000 also retains its sound energy across the room, the perceived volume level is very uniform on every seat. The “sweet spot” opens-up in all directions significantly.
Dedicated LS models for left, right and center placement
Three different LS-1000 models have been designed for the best sound dispersion into the room. The LS-1000 Left beams sound slightly inwards when placed on the left side, away from the sidewall and towards the listening area. The LS-1000 Right beams sound slightly inwards when placed on the right side. The LS-1000 Center has the tweeters mounted centered, leading to a wider sound dispersion equal to the left and right.
Very rigid and shallow modular construction, easy to install
The LS-1000 is a very rigid modular construction which minimizes mechanical resonance. The overall cabinet design is slim and very shallow, which makes it very easy to install behind acoustically transparent screens. The stacked modules connect through integrated contact pins, so that no external speaker cables are required between the modules.
Easy to combine with amplifiers
With an IEC power handling of 300 watt, sensitivity of 98 dB 2.83 V/1m, and a combined impedance of 4 ohms when using four modules, the LS-1000 is easy to combine with amplifiers. The high sensitivity combined with a line source’s typically uniform sound energy across the room allows the LS-1000 to achieve very high volume levels while sounding very effortless with the given amplifier power. The frequency range of 20,000Hz down to 100Hz allows different woofers or subwoofers to complement the LS-1000 seamlessly, ideally with the Lyngdorf BW-20.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
Forum Mentions
No forum mentions found yet
Specifications
- Model
- Lyngdorf LS-1000 Left
- Description
- 2-way line source, closed
- Tweeter
- 8 pcs 1” soft dome
- Midrange driver
- 4 pcs 115 mm, 25mm voice coil, aluminum cone, vented magnet
- Enclosure
- MDF
- Frequency range
- 100 – 20.000 Hz (-3 dB) Frequency extension down to 50 Hz depending on EQ
- Nominal Impedance
- 16 Ohm (line source consisting of four LS-1000 modules: 4 Ohm)
- Sensitivity
- 98 dB (2.83 V/1 m) (for four LS-1000 modules)
- Power handling
- 300 W (IEC) (for four LS-1000 modules)
- Maximum SPL
- 120 dB (for four LS-1000 modules) (peak, 1m)
- Crossover point
- 1,8 kHz
- Connections
- Screw terminals
- Mounting
- In-wall
- Dimensions (W x H x D)
- 280 x 500 x 85 mm / 11 x 19.7 x 3.35 inches + mounting
- Weight
- 9,9 kg / 21.8 lb
- Finish
- Matte black
- Model
- Lyngdorf LS-1000 Center
- Description
- 2-way line source, closed
- Tweeter
- 8 pcs 1” soft dome
- Midrange driver
- 4 pcs 115 mm, 25mm voice coil, aluminum cone, vented magnet
- Enclosure
- MDF
- Frequency range
- 100 – 20.000 Hz (-3 dB) Frequency extension down to 50 Hz depending on EQ
- Nominal Impedance
- 16 Ohm (line source consisting of four LS-1000 modules: 4 Ohm)
- Sensitivity
- 98 dB (2.83 V/1 m) (for four LS-1000 modules)
- Power handling
- 300 W (IEC) (for four LS-1000 modules)
- Maximum SPL
- 120 dB (for four LS-1000 modules) (peak, 1m)
- Crossover point
- 1,8 kHz
- Connections
- Screw terminals
- Mounting
- In-wall
- Dimensions (W x H x D)
- 280 x 500 x 132 mm / 11 x 19.7 x 5.2 inches + mounting
- Weight
- 10,4 kg / 22.9 lb
- Finish
- Matte black
- Model
- Lyngdorf LS-1000 Right
- Description
- 2-way line source, closed
- Tweeter
- 8 pcs 1” soft dome
- Midrange driver
- 4 pcs 115 mm, 25mm voice coil, aluminum cone, vented magnet
- Enclosure
- MDF
- Frequency range
- 100 – 20.000 Hz (-3 dB) Frequency extension down to 50 Hz depending on EQ
- Nominal Impedance
- 16 Ohm (line source consisting of four LS-1000 modules: 4 Ohm)
- Sensitivity
- 98 dB (2.83 V/1 m) (for four LS-1000 modules)
- Power handling
- 300 W (IEC) (for four LS-1000 modules)
- Maximum SPL
- 120 dB (for four LS-1000 modules) (peak, 1m)
- Crossover point
- 1,8 kHz
- Connections
- Screw terminals
- Mounting
- In-wall
- Dimensions (W x H x D)
- 280 x 500 x 85 mm / 11 x 19.7 x 3.35 inches + mounting
- Weight
- 9,9 kg / 21.8 lb
- Finish
- Matte black
Manufacturer's Description — Lyngdorf Audio
Reduced floor and ceiling reflections and uniform sound energy across the room
The LS-1000 consists of multiple identical drivers in a vertical line source array. Compared to conventional point-source speakers, a line source minimizes the effect of floor and ceiling reflections by restricting the vertical sound dispersion. Listeners will hear more of the speaker and less of the room. The LS-1000 also retains its sound energy across the room, the perceived volume level is very uniform on every seat. The “sweet spot” opens-up in all directions significantly.
Dedicated LS models for left, right and center placement
Three different LS-1000 models have been designed for the best sound dispersion into the room. The LS-1000 Left beams sound slightly inwards when placed on the left side, away from the sidewall and towards the listening area. The LS-1000 Right beams sound slightly inwards when placed on the right side. The LS-1000 Center has the tweeters mounted centered, leading to a wider sound dispersion equal to the left and right.
Very rigid and shallow modular construction, easy to install
The LS-1000 is a very rigid modular construction which minimizes mechanical resonance. The overall cabinet design is slim and very shallow, which makes it very easy to install behind acoustically transparent screens. The stacked modules connect through integrated contact pins, so that no external speaker cables are required between the modules.
Easy to combine with amplifiers
With an IEC power handling of 300 watt, sensitivity of 98 dB 2.83 V/1m, and a combined impedance of 4 ohms when using four modules, the LS-1000 is easy to combine with amplifiers. The high sensitivity combined with a line source’s typically uniform sound energy across the room allows the LS-1000 to achieve very high volume levels while sounding very effortless with the given amplifier power. The frequency range of 20,000Hz down to 100Hz allows different woofers or subwoofers to complement the LS-1000 seamlessly, ideally with the Lyngdorf BW-20.
