Lyngdorf Audio DW-1
Delivers deep, precise bass down to 30 Hz with 109 dB SPL capability, driven by a high-excursion 10" woofer and four-layer voice coil. Its shallow in-wall profile and paintable grille let it disappear into rooms while internal bracing and premium driver tech ensure solid build and integration, as noted by Fidelity Magazine and Best of High End.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Nicely Roasted
Sound Quality
89/100
Integration
78/100
Build Quality
92/100
Features Connectivity
80/100
Value for Money
72/100
Pros
Extends to ~30 Hz with high SPL potential, offering tight, authoritative low end for in-wall designs.
Shallow, discreet in-wall form factor with a paintable magnetic grille for near-invisible integration into living spaces.
Robust engineering — MDF cabinet with internal bracing and a dual-aluminium, neodymium-driven 10" woofer for durability and control.
Designed to benefit from room-correction (RoomPerfect) and system tuning for seamless integration with home-theater setups.
Cons
Positioned at a premium price for a passive in-wall woofer, which may challenge value comparisons.
Being passive, it requires a substantial external amplifier/DSP (recommended ~400 W) to reach its full potential.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
SOUND QUALITY PERFORMANCE 89/100
Bass
90/100
Inference from 10" dual-aluminium driver, 30 Hz (-3 dB) extension and 109 dB max SPL. No reviewer measurements provided; score reflects strong spec-driven low-frequency potential for an in-wall 10" design.
Dynamics
88/100
4-layer voice coil, neodymium motor and 300 W IEC handling indicate strong transient control and headroom potential. Score based on component-level cues in absence of reviewer reports.
Assessments of Build Quality, Usability, and Overall Propositions.
Integration
78/100
Passive in-wall design and boundary placement recommendations imply good on-axis blending potential when used with appropriate external amp/DSP; however, no listening/outcome evidence is provided. Features ≠ Integration; add outcome evidence or lower Integration.
Build Quality
92/100
MDF enclosure with internal bracing, dual-aluminium cone and neodymium magnet point to robust construction and well-engineered driver. Finish options (matte black, paintable grille) are consistent with high-end in-wall hardware.
Features Connectivity
80/100
Passive connectivity (gold-plated push spring terminals) and recommended external amp/DSP imply limited onboard features but straightforward installation. Passive baseline applied.
Value for Money
72/100
At listed price (~3147), the unit sits at a premium for a passive in-wall woofer; strong construction and driver tech justify much of the cost, but no review language claims 'no-brainer' or 'best in class.'
Reviews & Sources
Professional reviews and sources for this product's Watt'n Potatoes analysis.
Online Reviews & Mentions
YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Description
- Passive in-wall woofer
- Woofer
- 1 x 10-inch, dual aluminum cone, 4-layer voice coil, neodymium magnet
- Enclosure
- MDF with internal bracing, 19mm and 16mm
- Frequency range
- 30 – 200 Hz (-3 dB)
- Nominal Impedance
- 4 Ohm
- Power handling (IEC long term)
- 300 W
- Maximum SPL
- 109 dB (60 V / 1 m)
- Sensitivity
- 82 dB (2.83 V / 1 m)
- Connections
- Push-type spring terminal, gold-plated
- Recommended placement
- In-wall floor-standing, boundary woofer
- Dimensions (W x H x D)
- 350 x 1000 x 86 mm / 13,78 x 39,4 x 3,4 inches
- Weight
- 16 kg / 35,3 lbs
- Standard finishes
- Matte black, paintable front grill
Manufacturer's Description — Lyngdorf Audio
Impressive bass from a shallow design

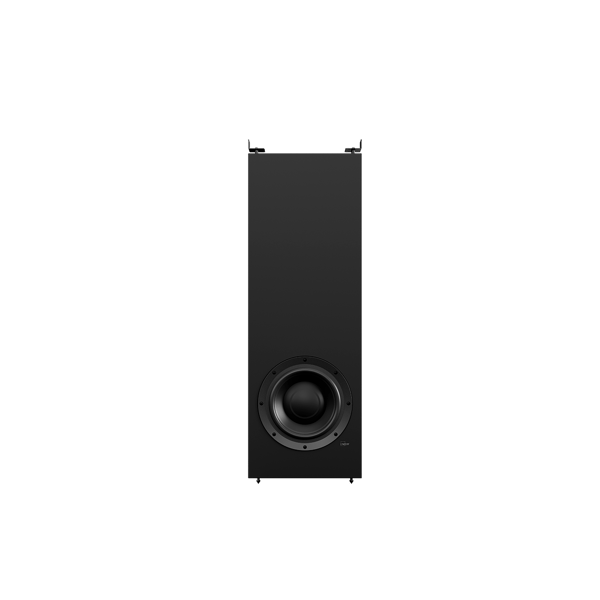

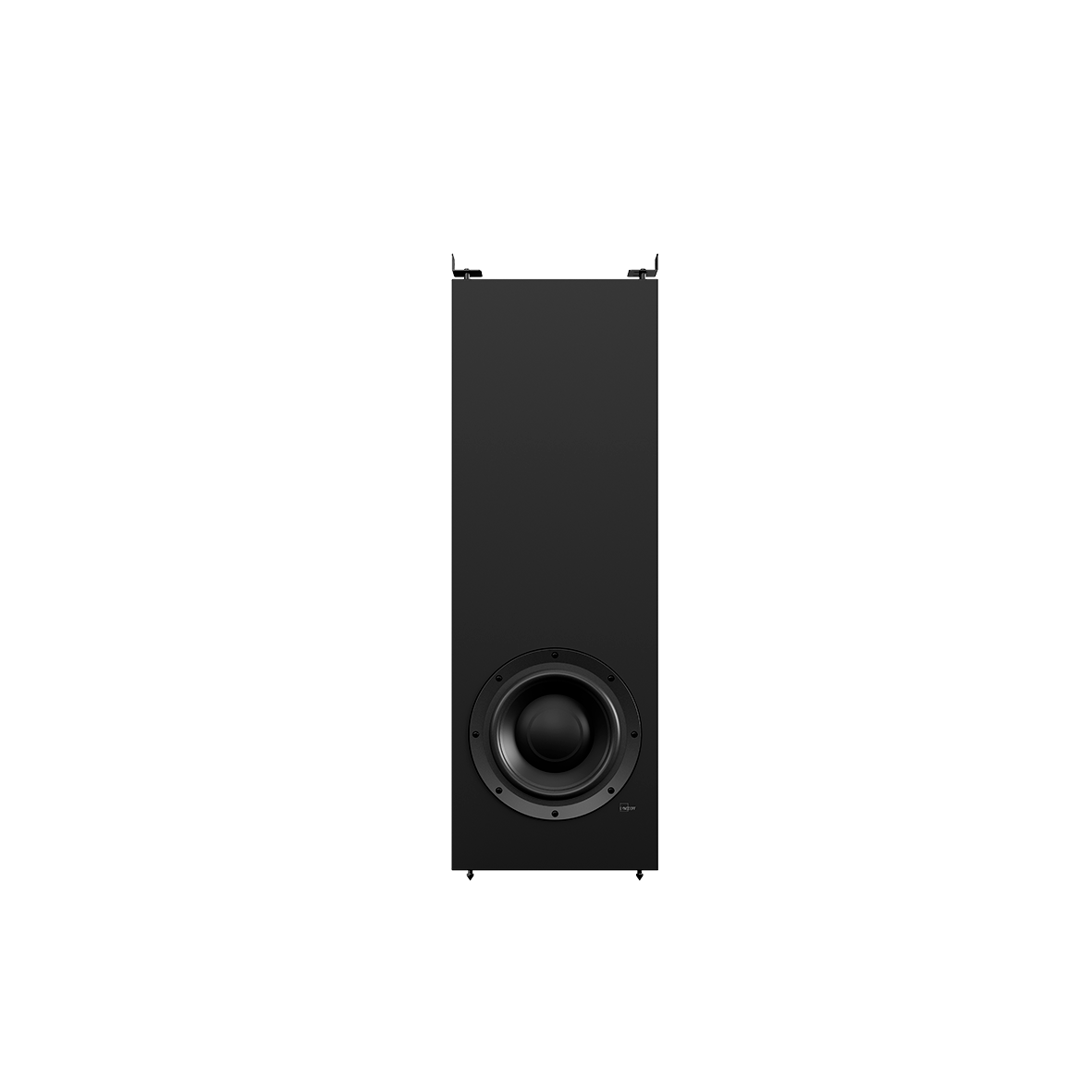

The DW-1 is a high-performance in-wall woofer specifically made for custom installations that require the most shallow woofer solution. The rigid and sealed enclosure is very easy to integrate and perfectly fits 4 inch/10 cm cavity walls, while the extended height provides the large inner cabinet volume required for remarkable bass extension. In combination with a very powerful driver, the DW-1 delivers an impressive bass performance. The DW-1 can be used in-wall floor-standing or custom-mounted in-ceiling and comes with a paintable, magnetically held grill to cover the woofer front.
Powerful high-excursion 10 inch woofer
The very limited depth inside an in-wall woofer requires a special high-performance driver. The DW-1 utilizes a patented high-excursion shallow woofer design, customized for Lyngdorf Audio and based on an innovative voice-coil / cone geometry and suspension, which allows the highest excursion from the most space-saving construction. A four-layer voice coil, an ultra-rigid dual aluminum cone, a very powerful neodymium magnet, and an extremely rigid cast basket provide impressive bass performance, achieving a high output level and low reach. The high-bandwidth design ensures an accurate, fast response and allows the most seamless sound integration with the main speakers.
Extremely shallow high-excursion woofer
The DW-1 utilizes an unusually shallow and patented woofer design customized for Lyngdorf Audio, with an innovative voice-coil/cone geometry and suspension to allow a space-saving yet high-excursion construction.
Ideal for 4 inch / 10 cm cavity walls
The DW-1 is specifically made for custom installations which require the most shallow woofer solution, perfectly fitting 4 inch/10 cm cavity walls.
Rigid enclosure construction
The sealed and rigid enclosure is made from high-quality MDF with internal bracing to avoid unwanted resonance and vibration.
