Lyngdorf Audio D-60 C

D stands for discreet

D stands for discreet – all models are designed as installation speakers for discreet in-wall or in-ceiling integration, featuring a wall-fixing mechanism with mounting legs. All models also come with their own loudspeaker enclosure, making system planning and the actual installation as easy as possible, with no after-market backbox or closed wall cavity required. This also ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

High power handling, sensitivity, SPL

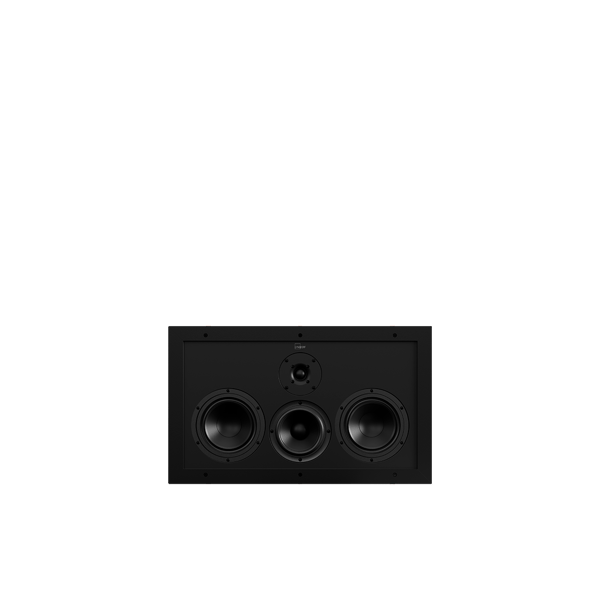

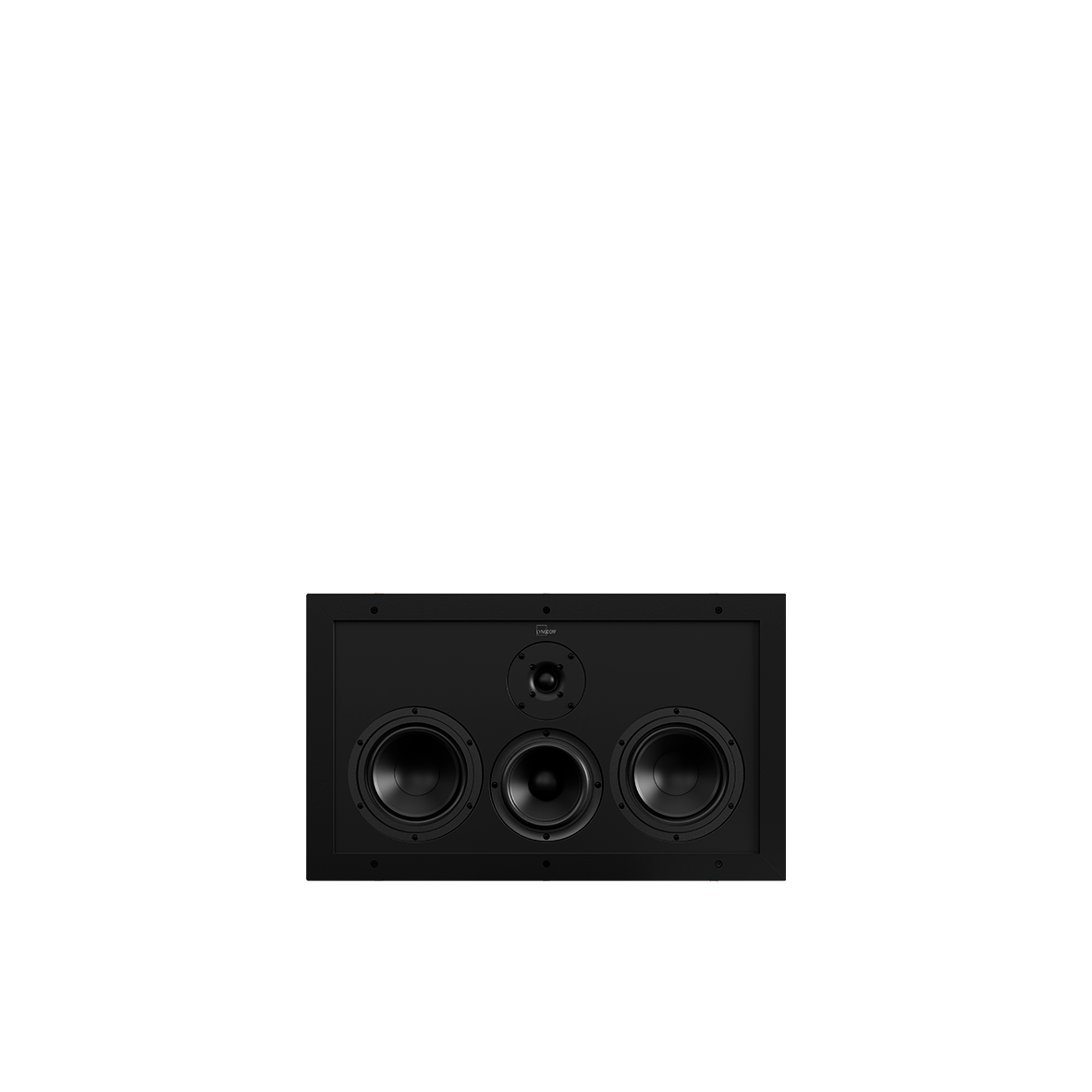

The D-60 C has been designed as a high-performance in-wall speaker to complement the D-60 for front and surround channels as a center channel, or as a high-performance solution for all front channels. It offers the Discreet series’ highest power handling, sensitivity, and maximum sound pressure level. The D-60 C covers frequencies from 22 kHz down to 80 Hz (-3dB) and is intended to be used with additional woofers for the LFE and bass, for example the Lyngdorf BW-20 or DW-1. To achieve the ideal sound radiation from a center speaker and the best overall sound performance, the D-60 C is designed with a dedicated midrange driver just below the tweeter and two additional woofers. The midrange/tweeter section and the woofers are driven by individual amplifiers in a bi-amping design with active crossover.

Powerful soft-dome tweeter and new midrange driver

The D-60 C is equipped with a more powerful soft dome tweeter compared to the D-500 Center, featuring a much stronger magnet. The highly efficient midrange driver is equipped with a powerful neodymium magnet, while the two woofers incorporate aluminum cones, very powerful vented magnets, and an inverted surround to allow a flat speaker front and space-saving cabinet depth. With the D-60 C, one no longer has to choose between high-performance and a discreet physical presence.

Powerful drive units and bi-amping with active crossover

The D-60 C is equipped with a more powerful soft dome tweeter and midrange driver compared to the D-500 Center, featuring much stronger magnets. The two woofers are equipped with vented magnets and vented die-cast baskets, while the inverted surround allows a flat speaker front and space-saving cabinet depth. The tweeter/midrange unit and the woofers are driven by a bi-amping active crossover design for the best sound performance, frequency balance, and sound dispersion. When using a Lyngdorf MP processor, the D-60 C can be selected in the speaker menu and the amplifier channels are assigned. While thecrossover filter between tweeter and upper midrange driver is inside the speaker (passive filter), the crossover between the midrange and the two woofers is in the digital domain (active filter) inside the processor. This achieves the best sound beam with none of the typical phase effects and uneven frequency response of common center speakers.

Pre-mounted loudspeaker enclosure

 The D-60 C comes with its own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall. The enclosure is made from high quality mdf, increasing rigidity and preventing material resonance.

Lyngdorf Audio speaker design and drive-units

The woofers, midrange drivers and tweeters are based on the known drive-units used in Lyngdorf loudspeakers customized for each model, featuring soft-dome tweeters, light aluminum cones, vented magnets, and die-cast baskets.
