Lyngdorf Audio D-500 Center
The first Lyngdorf Audio installation speakers
The D speakers bring Lyngdorf Audio sound quality to the custom installation speaker market. After the successful introduction of Lyngdorf loudspeakers for modern living rooms, ranging from the MH and FR on-wall speakers and BW boundary woofers to the CS-1 cabinet speaker, the Lyngdorf D series expands the company’s range with in-wall and in-ceiling speakers for stereo and multichannel installations.
D stands for discreet
D stands for discreet – all models are designed as installation speakers for discreet in-wall or in-ceiling integration, featuring a wall-fixing mechanism with mounting legs. All models also come with their own loudspeaker enclosure, making system planning and the actual installation as easy as possible, with no after-market backbox or closed wall cavity required. This also ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.
Full-range speaker design

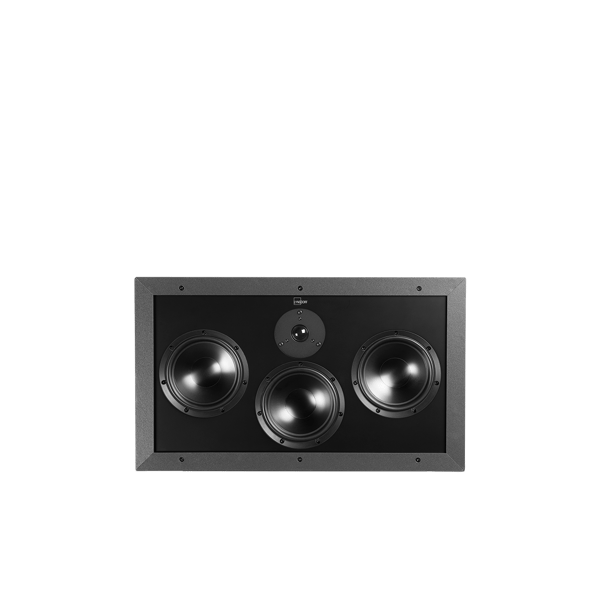

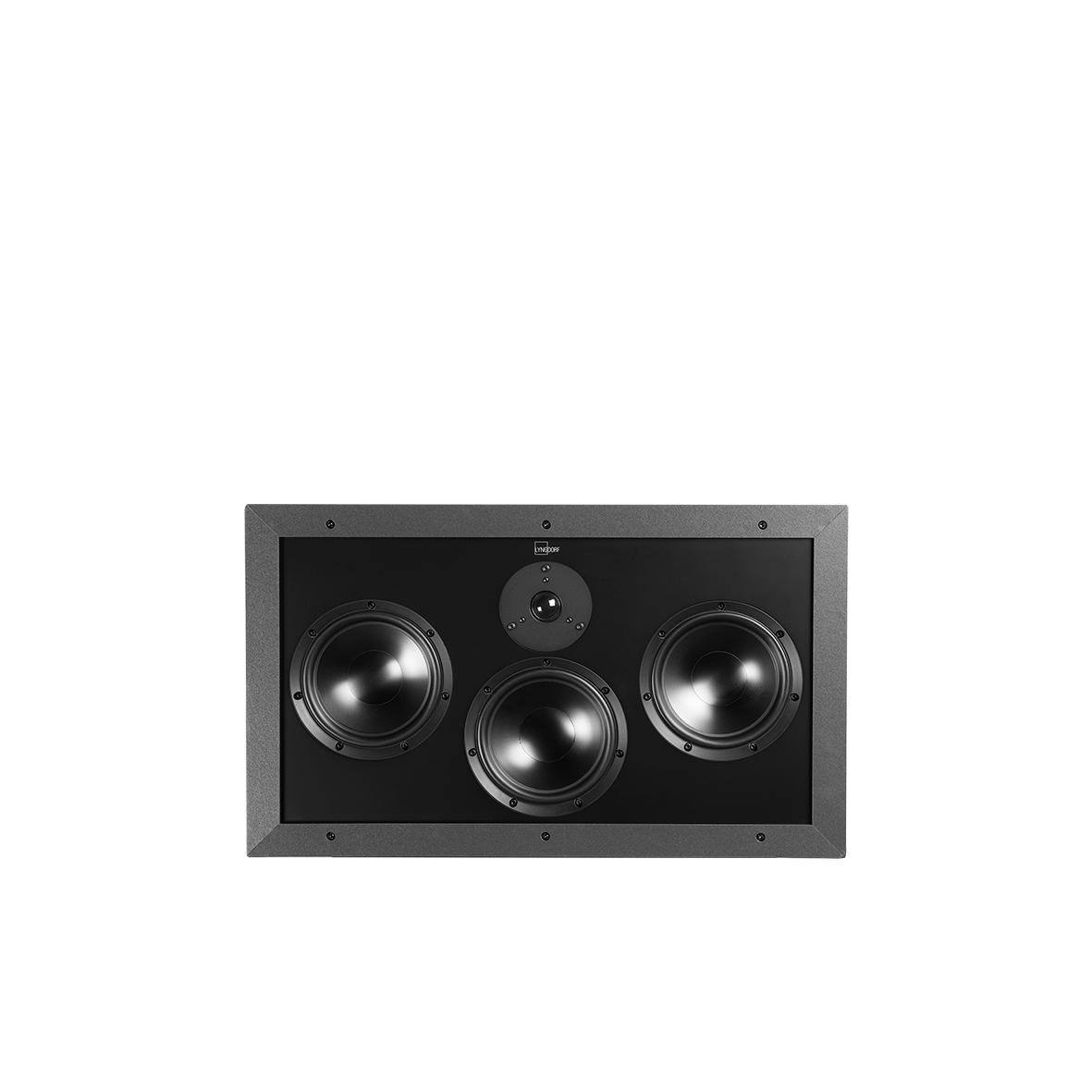

The D-500 Center is designed as a full-range speaker, with two passive woofers complementing the midrange driver and tweeter. The tweeter placed directly above the midrange driver achieves the ideal sound radiation for a center speaker and complement the D-500 placed left and right in the best way. This 2-way-design with passive woofers makes the D-500 Center easy drive while reaching below 50Hz, suitable for systems without a subwoofer in smaller or medium sized rooms, or as full range in-wall center below a TV.
Full-range speaker design
The D-500 models are designed as full-range speakers, with two passive woofers complementing the midrange driver and tweeter. This design makes the D-500 models easy to drive while reaching below 50Hz, suitable for systems without a subwoofer in smaller or medium sized rooms, or as full range in-wall speakers in a stereo setup left and right of a TV.
Pre-mounted loudspeaker enclosure
All D-500, D-60 and D-5 models come with their own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.
Lyngdorf Audio speaker design and drive-units
The woofers and tweeters are based on the known drive-units used in other Lyngdorf loudspeakers customized for these new models, featuring soft-dome tweeters, light aluminum cones, vented magnets, and die-cast baskets.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
Forum Mentions
No forum mentions found yet
Specifications
- Model
- Lyngdorf D-500 Center
- Description
- 2 way speaker with 2 passive woofers
- Tweeter
- 28 mm / 1” soft dome
- Midrange driver
- 175 mm, 38 mm voice coil, aluminum cone, vented magnet
- Passive woofers
- 2 x 175 mm, aluminum cones
- Enclosure
- Closed MDF cabinet
- Frequency range
- 50 – 22.000 Hz (-3 dB)
- Nominal Impedance
- 4 Ohm
- Sensitivity
- 88 dB (2.83V/1m)
- Power handling
- 100 W (IEC)
- Maximum SPL
- 108 dB (peak, 1m)
- Crossover point
- 2,5 kHz
- Connections
- Binding posts
- Mounting
- In-wall
- Dimensions with grill (W x H x D)
- 646 x 388 x 109 mm / 25.4 x 15.3 x 4.3 inches
- Cut-out dimensions (W x H x D)
- 618 x 360 x 104 mm / 24.3 x 14.2 x 4.1 inches
- Weight
- 11,5 kg / 25.4 lb
- Finish
- Matte black, white grill
Manufacturer's Description — Lyngdorf Audio
The first Lyngdorf Audio installation speakers
The D speakers bring Lyngdorf Audio sound quality to the custom installation speaker market. After the successful introduction of Lyngdorf loudspeakers for modern living rooms, ranging from the MH and FR on-wall speakers and BW boundary woofers to the CS-1 cabinet speaker, the Lyngdorf D series expands the company’s range with in-wall and in-ceiling speakers for stereo and multichannel installations.
D stands for discreet
D stands for discreet – all models are designed as installation speakers for discreet in-wall or in-ceiling integration, featuring a wall-fixing mechanism with mounting legs. All models also come with their own loudspeaker enclosure, making system planning and the actual installation as easy as possible, with no after-market backbox or closed wall cavity required. This also ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.
Full-range speaker design
The D-500 Center is designed as a full-range speaker, with two passive woofers complementing the midrange driver and tweeter. The tweeter placed directly above the midrange driver achieves the ideal sound radiation for a center speaker and complement the D-500 placed left and right in the best way. This 2-way-design with passive woofers makes the D-500 Center easy drive while reaching below 50Hz, suitable for systems without a subwoofer in smaller or medium sized rooms, or as full range in-wall center below a TV.
Full-range speaker design
The D-500 models are designed as full-range speakers, with two passive woofers complementing the midrange driver and tweeter. This design makes the D-500 models easy to drive while reaching below 50Hz, suitable for systems without a subwoofer in smaller or medium sized rooms, or as full range in-wall speakers in a stereo setup left and right of a TV.
Pre-mounted loudspeaker enclosure
All D-500, D-60 and D-5 models come with their own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.
Lyngdorf Audio speaker design and drive-units
The woofers and tweeters are based on the known drive-units used in other Lyngdorf loudspeakers customized for these new models, featuring soft-dome tweeters, light aluminum cones, vented magnets, and die-cast baskets.
