Lamm Industries ML3 Signature Amplifier
The ML3 Signature delivers airy treble, three-dimensional imaging, and exceptional low-level expression from its pure Class A GM-70 design. Stereophile heard lifelike instrumental decay and expansive space, while Audio Federation praised its extreme quietness, textural resolution, and linear musical flow. This is a rare, revealing monoblock for systems built around sensitive loudspeakers.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Nicely Roasted
Sound Quality
94/100
Build Quality
88/100
Value for Money
77/100
Pros
Exceptionally clean, airy high frequencies with natural instrumental timbre and decay.
Expansive, focused soundstage with convincingly three-dimensional images and strong separation.
Outstanding microdynamic control, textural complexity, and low-noise resolution.
Cons
Its modest SET power demands sensitive loudspeakers with a benign impedance curve; unsuitable matching can reduce drive and slam.
The ultra-high purchase price makes it a cost-no-object proposition.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
What Reviewers Are Saying
SOUND QUALITY PERFORMANCE 94/100
Reviewers describe an unusually transparent, texturally complete presentation with exceptional quietness, natural timbre, and convincing dimensionality. The ML3 is also praised for preserving fine dynamic gradations and musical intensity, provided it is partnered with suitably sensitive, impedance-friendly loudspeakers.
Transparency Resolution
96/100
Reviewers repeatedly praise the ML3's clarity and retrieval of subtle information. Stereophile heard effortlessly clean, airy treble and a nimble, natural double bass, while Audio Federation described extreme quietness, exceptional textural resolution, complex micro-harmonics, and the ability to hear deeply into recordings.
Tonal Balance Musicality
94/100
The tonal character is described as lush and smooth without falling into stereotypically soft or diffuse tube sound. With appropriate cabling and speaker matching, reviewers found it even-handed, natural, highly enjoyable, and notably faithful to the character of the incoming signal.
Dynamics
93/100
The ML3 earned strong praise for microdynamic control, the force and articulation of individual notes, and its ability to reproduce signal magnitude accurately in real music. One Stereophile audition found the sound lacking drive and slam, but this was in the context of unsuitable speaker matching; other accounts say it can rock with the best and render large dynamic events convincingly.
Soundstage Imaging
94/100
Stereophile reported floor-to-ceiling and wall-to-wall spaciousness, with convincingly three-dimensional images that remained focused rather than tubey or diffuse. Audio Federation likewise heard highly three-dimensional detail and excellent separation, reinforcing the amplifier's spatial precision.
Assessments of Build Quality, Usability, and Overall Propositions.
Build Quality
88/100
The ML3 is a substantial four-box monoblock design, with a separate power supply for each channel. Its Class A GM-70 output stage, custom transformers, multiple dedicated power supplies, filter chokes, and soft-start circuitry indicate a purpose-built engineering approach, though the reviews offer little direct commentary on long-term durability or finish quality.
Value for Money
77/100
At a reported $139,290 for the four-box system, this is firmly a cost-no-object purchase. Although reviewers portray its performance as exceptional and unusually complete, Audio Federation explicitly calls it 'too darn expensive,' making the price difficult to overlook even within the ultra-high-end market.
Reviews & Sources
Professional reviews and sources for this product's Watt'n Potatoes analysis.
Online Reviews & Mentions

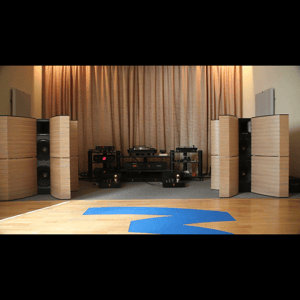

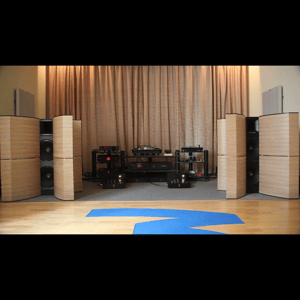

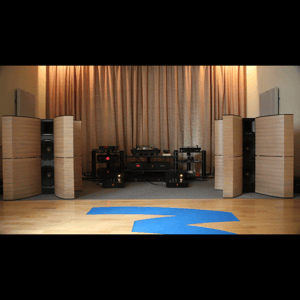

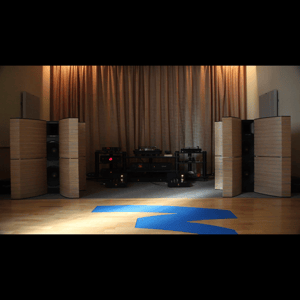

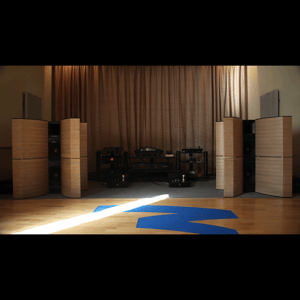

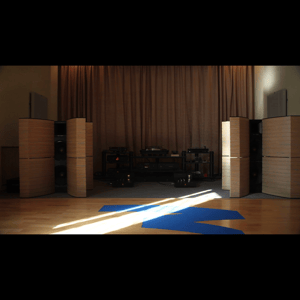

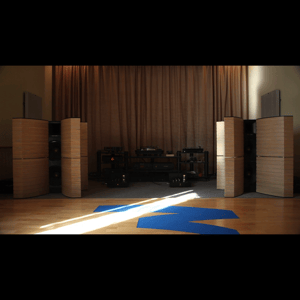

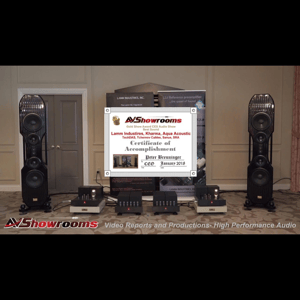

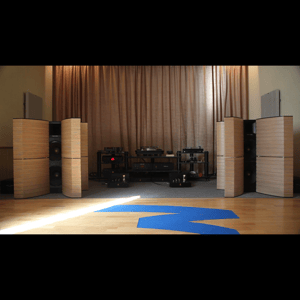

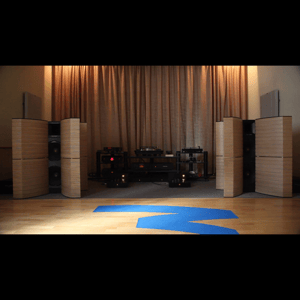

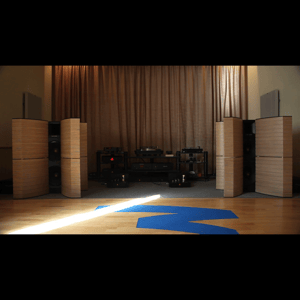

YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Pure class A operation
- No overall feedback
- Specification
- Amplifier with a separate power supply
- 32 Watts per channel
- Continuous into 16/8/4 Ohms (max. 37 Watts)
- Utilizes a very powerful direct-heated triode GM-70
- 125W plate dissipation
- Specification
- 6 filter chokes
- Specification
- 7 separate power supplies
- One GM70 (GM-70)
- Tube per channel
- Four 6N30P (6H30П)
- Tubes per channel
- One 12AX7/ECC83
- Tube per channel
- Six 12AX3
- Tubes per channel
- Pseudo-balanced XLR and RCA inputs
- Connected in parallel
- Multi-turn trimming potentiometer
- For setting the nominal value of plate current of the output tube
- Custom-made toroidal power transformer
- Assures absolutely unique clarity and micro-resolution during sound reproduction
- Custom-made output transformer
- Specially designed for handling high current low impedance output tubes and assuring reproduction of a full spectrum of audio frequencies at any level of output power up to the maximum specified
- Specification
- Custom-made filament transformer
- “Soft-start" circuit & vacuum tube rectifiers
- Protects power supply components from large in-rush currents when the amplifier is turned on
- 20-20,000 Hz (-1.5 dB)
- Frequency response
- Specification
- Operates on all world AC line voltages
- Height
- 8.25" (21cm)
- Width
- 15" (40.64cm)
- Depth
- 20.375 inches (51.75cm) Add 1.4375 inches (3.7cm) of depth for handles located on rear panel
- Weight (ML3)
- 79 lbs (35.9 kg)

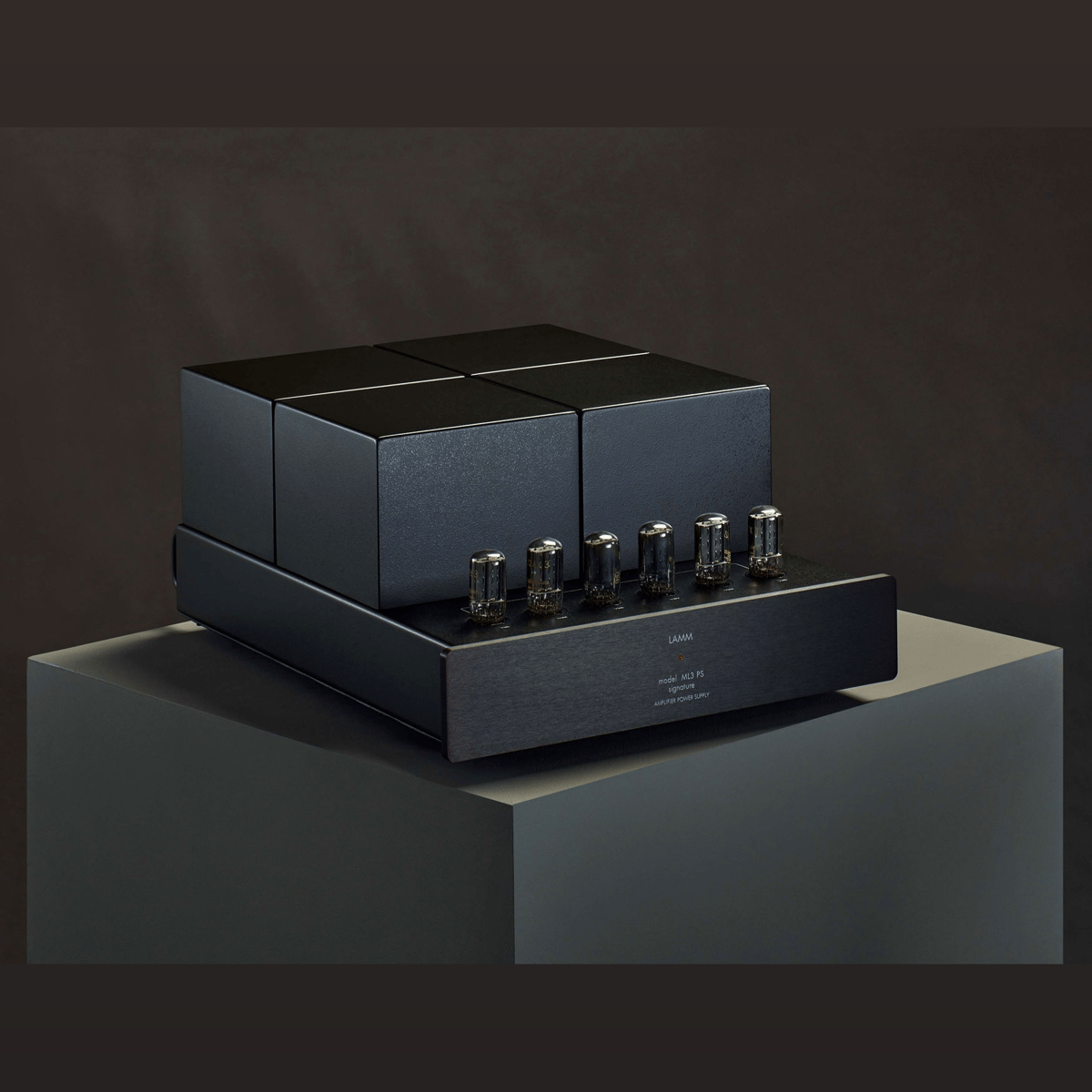

- Weight (ML3-PS)
- 80.2 lbs (36.4 kg)
Manufacturer's Description — Lamm Industries
Unrivaled in the World of Amplifiers
The ML3 Signature is a single-ended (SE) tube amplifier utilizing a very powerful direct-heated triode GM-70 (125W plate dissipation) and a separate power supply. Combining the most sophisticated electronic technology with a graceful design reminiscent of the classic era of tubes, the ML3 Signature is unparalleled.
Design Elements
A 32-watt amplifier that operates in pure class A and utilizes no overall feedback, the topology of the ML3 Signature incorporates one of the most advanced power supplies ever featured in an audio device.
With the ML3 Signature as the centerpiece of a high-end system, recorded musical events are recreated with astonishing verisimilitude. The listener is able to experience an ephemeral, yet tangible, connection to the music. Those who have listened to the ML3 Signature first hand have unanimously acknowledged this phenomenon and reported it to be utterly unique in their collective experience.
SE tube amplifiers have the potential to reproduce music with a greater sense of realism than any other amplifier type or topology. Due to the limitations inherent in most designs, standard amplifiers can sound lovely in the midrange but their low- and high-frequency reproduction leaves much to be desired. The ML3 Signature overcomes these limitations to recreate a sound strikingly similar to the original live event.
Along with the ML2.2, the ML3 Signature is essentially the only SE tube amplifier available on the market capable of reproducing an entire range of audio frequencies – from the exquisite midrange to the most natural and extended bass and high frequencies. The amplifier’s innovative circuitry enables it to recreate the original spectral balance and harmonic structure.
Due to its extraordinary transparency, the ML3 Signature is unmatched in its ability to produce a three-dimensional soundstage. As with the ML2.2, the ML3 Signature brings out the most natural sound performance inherent in the signal and unequivocally demonstrates what a meticulously designed single-ended amplifier can do.
Components
The most advanced technical solutions have been employed in the design of this amplifier —from the custom-made output transformer to the sophisticated power supply and unique front-end and output stages—enabling the ML3 Signature to yield tremendous sonic stability under most dynamic conditions.
The ML3 Signature features:
- Innovative front-end circuitry (this design is unique to LAMM Industries)
- Separate plate and filament transformers
- Six filter chokes
- Six rectifying tubes
- Highest quality film capacitors for the high voltage power supply that feeds the output stage
- Refined soft-start and time-delay circuitries
- An option to turn the amp on/off remotely
Each amplifier is handcrafted from the finest materials, including military-grade Dale and Vishay metal film resistors; PRC wire-wound resistors; Caddock power film resistors; Bourns multi-turn potentiometers; Cornell Dubilier and United Chemi-Con electrolytic capacitors; Electrocube, Elcon and Roederstein film capacitors; Hammond chokes, gold-plated Neutrik and Fischer connectors; heavy-duty, gold-plated binding posts; and military-grade, low-noise, long-life vacuum tubes.
Special attention was given to designing the plate, filament, and output transformers. They have no mechanical contact with either the transformer cover or the chassis and are suspended in a special encapsulant that almost completely absorbs residual mechanical vibrations. This plays a significant role in ensuring the consummate clarity and micro-resolution of the ML3 remain intact during sound reproduction.
The ML3 Signature has no overall feedback loop, but the amplifier features an option that allows the user to introduce a small amount of local feedback in the output stage. Also, there is a choice of two amounts for such feedback: NFB1 and NFB2, which differ in their levels. Therefore, there are three options regarding feedback use in the amplifier: no feedback, NFB1 or NFB2.
A multi-turn trimming potentiometer, accessible through a special opening in the amplifier’s chassis, along with a set of test points, allows the user to adjust and measure the plate current of the output tube via an external voltmeter.
The ML3 Signature works on all world AC line voltages (100/120/220/230/240 V).
NOTE TO ML3 SIGNATURE OWNERS
We strongly recommend that you have a high quality digital voltmeter on hand in order to properly adjust and control the parameters of the ML3 Signature. We use and recommend Fluke model 87-V. Using a cheap voltmeter is likely to give the wrong reading of the parameters resulting in improper adjustment, and, in the end, malfunction of the amp.
TUBE REPLACEMENT
12AX3/ 12BE3 tubes should be replaced every 1.5-2 years. GM-70 tubes should be replaced every 1.5 years to maintain the best performance of the amplifier.
Features
Custom-made output transformer, unique front-end and output stages, and sophisticated power supply
Enables the ML3 to drive to most real-world speakers and yield tremendous sonic stability under most dynamic conditions.
One of the only single-ended tube amplifiers that reproduces the entire spectrum in the audio frequency range
Delivers the greatest potential of reproducing music with maximum fidelity to live sound.
Offers 3 different levels of local feedback to suit the listener's preference
No feedback, NFB1 or NFB2.
Multi-turn trimming potentiometer and designated test points
Allows the user to adjust and measure the plate current of the output tube via an external voltmeter.
