A milestone In high-end amplification

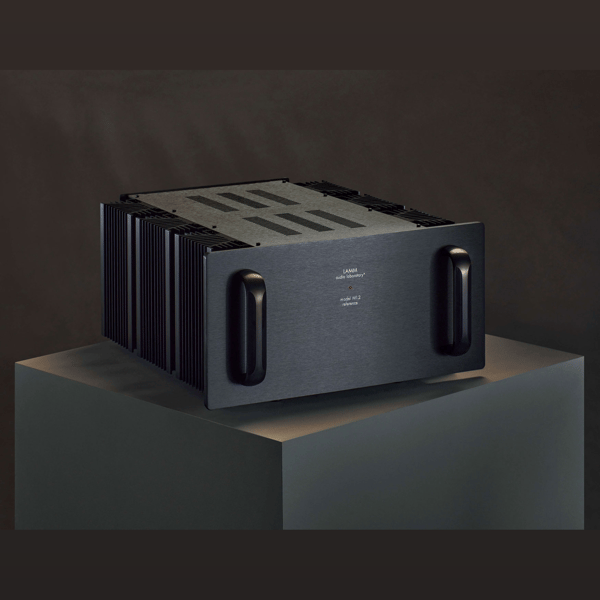

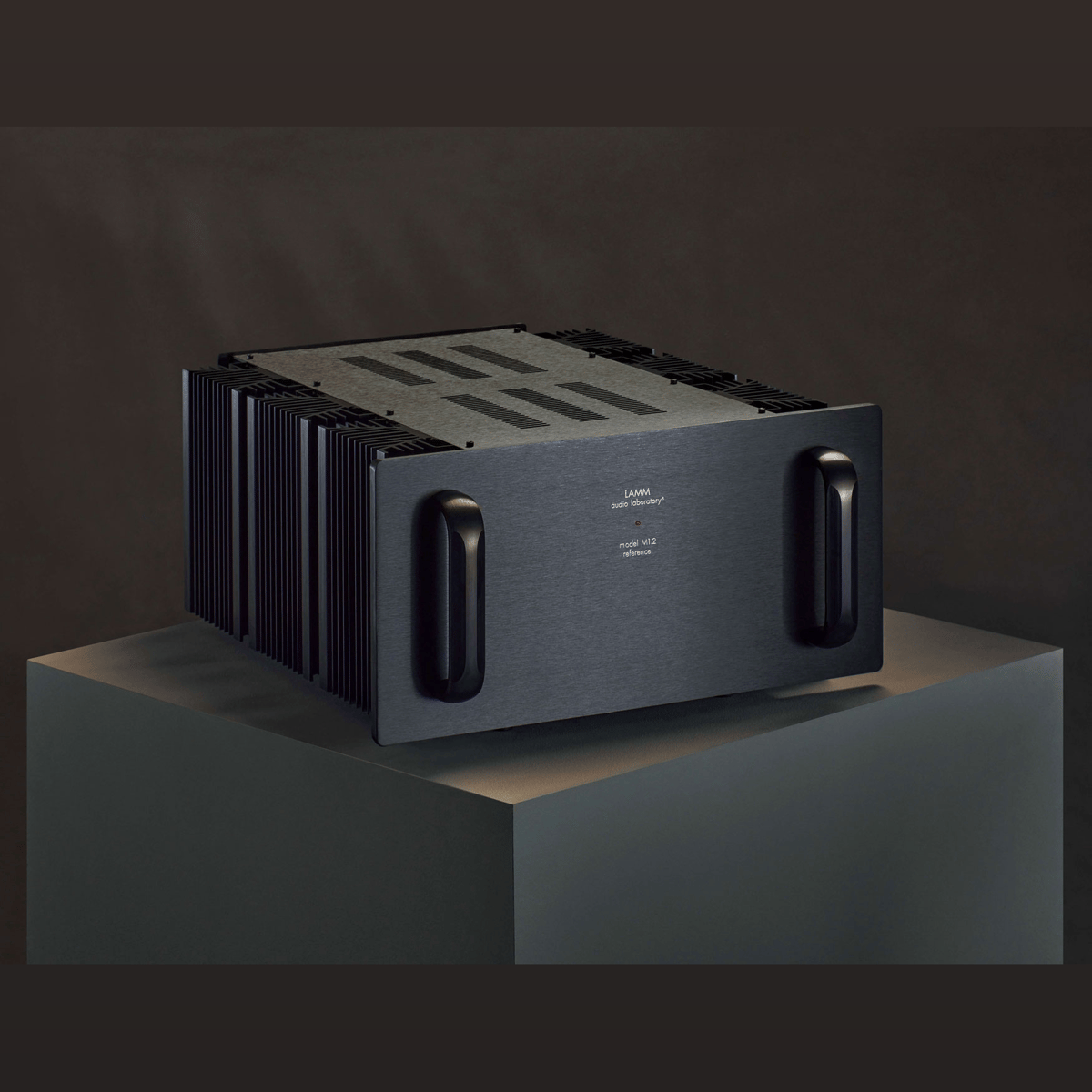

The M1.2 Reference monoblock power amplifier represents a top of the line product in LAMM hybrid and solid-state audio equipment. It is the pinnacle of its designer’s professional career and a result of years of intensive research directed solely at attaining the most accurate reproduction of recorded music. Unique topology and application of the most advanced technological resources and processes bring the M1.2 Reference to a threshold of excellence in sound reproduction.

Design Elements

A distinctive feature of the M1.2 Reference is its presentation of the extraordinary transparency of perceived sound which in turn assures the recreation of a three dimensional soundstage in the home, recording studio, etc. without boundaries and limitations. The M1.2 Reference is a masterful blend of design and engineering simplicity. It is a pure class A amplifier featuring high-speed MOS-FET transistors in the output stage with no overall feedback and special switch-selectable bias/voltage settings for 8- or 4-Ohm operation.

The bias setting switch assures the pure class A operation of the M1.2 Reference when matched with a speaker load of either 4 or 8 Ohms, whereas conventional class A designs double the power into 4 Ohms resulting in one fourth of the doubled power in class A and the rest in class AB (learn more about this in FAQ section of our website at lammdev.wpengine.com/faq/switch.html).

The M1.2 Reference is a hybrid design with one specially selected 6922 vacuum triode in the second stage.The M1.2 Reference is conservatively rated to deliver 110 Watts into 8 and 4 Ohms in pure class A operation (high and low impedance settings, respectively); 220 Watts into 2 Ohms, and 400 Watts into 1 Ohm (low impedance setting), continuous. The M1.2 Reference can drive any known speaker. The harmonic structure remains intact regardless of the speaker load, while the extreme clarity is maintained at all power levels.

Components

Each amplifier is carefully constructed and hand-crafted with the finest materials and parts currently available, some of which include military graded low noise DALE metal film resistors; PRC wire wound resistors; ELECTROCUBE and ROEDERSTEIN film capacitors; high frequency switching grade CORNELL DUBILIER electrolytic capacitors; BOURNS multi-turn potentiometers; HAMMOND filter chokes; military graded low noise long life vacuum tubes; high quality heavy duty gold-plated binding posts and RCA jacks; gold-plated NEUTRIC XLR connectors, and CAMAC-type coaxial connectors from FISCHER.

Special attention was given to designing the toroidal power transformer, which has no mechanical contact with either the transformer cover or the chassis and is suspended in a special encapsulant that almost completely absorbs even the residual mechanical vibrations. This plays a significant role in assuring the absolutely unique clarity and micro-resolution during sound reproduction.

The M1.2 Reference works on all world AC line voltages. U.S. Patent No. D368,261; U.S. Patent No. 5,470,795; other patents pending.

Features

Drives to any known speaker

The harmonic structure remains intact regardless of the speaker load, while the extreme clarity is maintained at all power levels.

Ultra low-noise power transformer

Custom-made toroidal power transformer has no mechanical contact with either the transformer cover or the chassis, assuring the absolutely unique clarity and micro-resolution during sound reproduction.

Transformer hum reducer

Special circuit reduces power transformer core saturation and residual mechanical hum.

Bias setting (load) switch

Switch-selectable biasing circuit maintains pure Class A operation of the output stage for all load conditions between 4-16 Ohms.
