2-channel microphone preamplifier in premium quality

The F-Series from Lake People includes absolutely high-quality audio products with unusual features, the best technical data and perfect workmanship.

The practical, clear and simple precision tool ensures exact signal transmission, which amplifies incoming signals but does not alter them negatively.

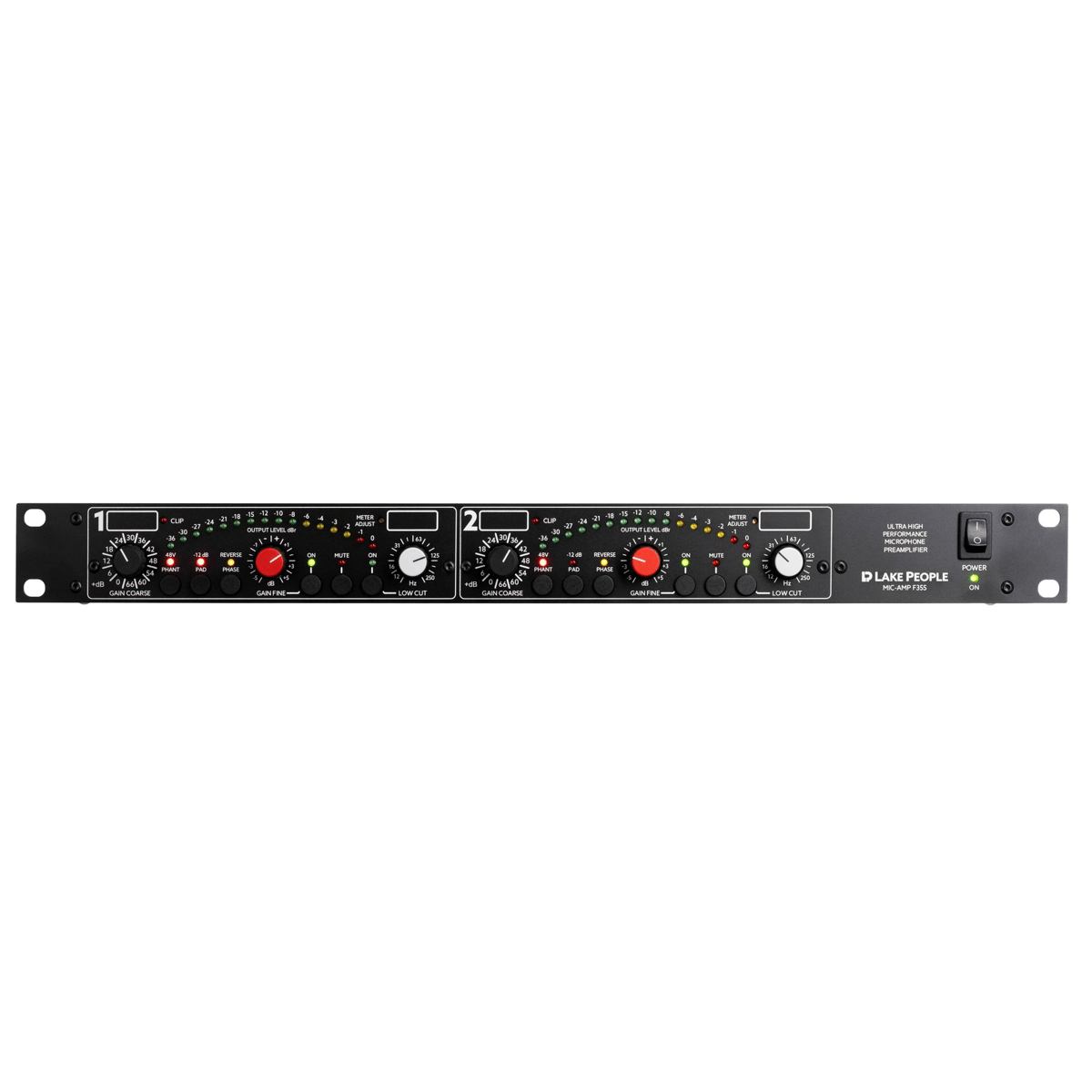

The 19-inch housing is made of pure stainless steel with a gray front and is designed for installation in a rack. This protects the preamplifier from external mechanical influences.

The dynamic values of the outputs are further improved by the active feedback Class A inputs

Features per channel:

• Electronically balanced input via XLR
• Gain 0...+66 dB switchable in 12 steps of 6 dB
• Deactivatable gain fine adjustment with center detent potentiometer +/- 5 dB
• Deactivatable lo-cut, 12 dB/oct, with variable insert 12...250 Hz
• Noise -129 dB at 60 dB gain
• Pad switch for -12 dB pre-attenuation
• Programmable intelligent muting system
• Phantom power 48 V switchable
• Phase inversion switchable
• 16-step fast level display, 0 ... -36 dBr calibratable on the front
• Additional separate clip display
• 2 x balanced outputs via XLR

Lake People - solutions for the highest standards of sound and reliability

The entire development and production takes place in the factory in Constance, and even the suppliers are largely from Germany.This results in A/D and D/A converters, microphone, headphone and phono amplifiers as well as a wide range of signal converters with the well-deserved “Made in Germany” seal of quality

Features

• 16-step fast level meter, 0 ... -36 dBr calibratable on the front panel
• Deactivatable lo-cut, 12 dB/oct., with variable insert 12...250 Hz
• Deactivatable gain fine adjustment with center detent potentiometer +/- 5 dB
• Gain 0...+66 dB switchable in 12 steps of 6 dB each
• Programmable intelligent muting system
• Pad switch for -12 dB pre-attenuation
• Phantom power 48 volt switchable
• Switchable phase inversion
• Separate clip display
• Ultra High Quality Class-A front end
• Optional: GP-IO control
