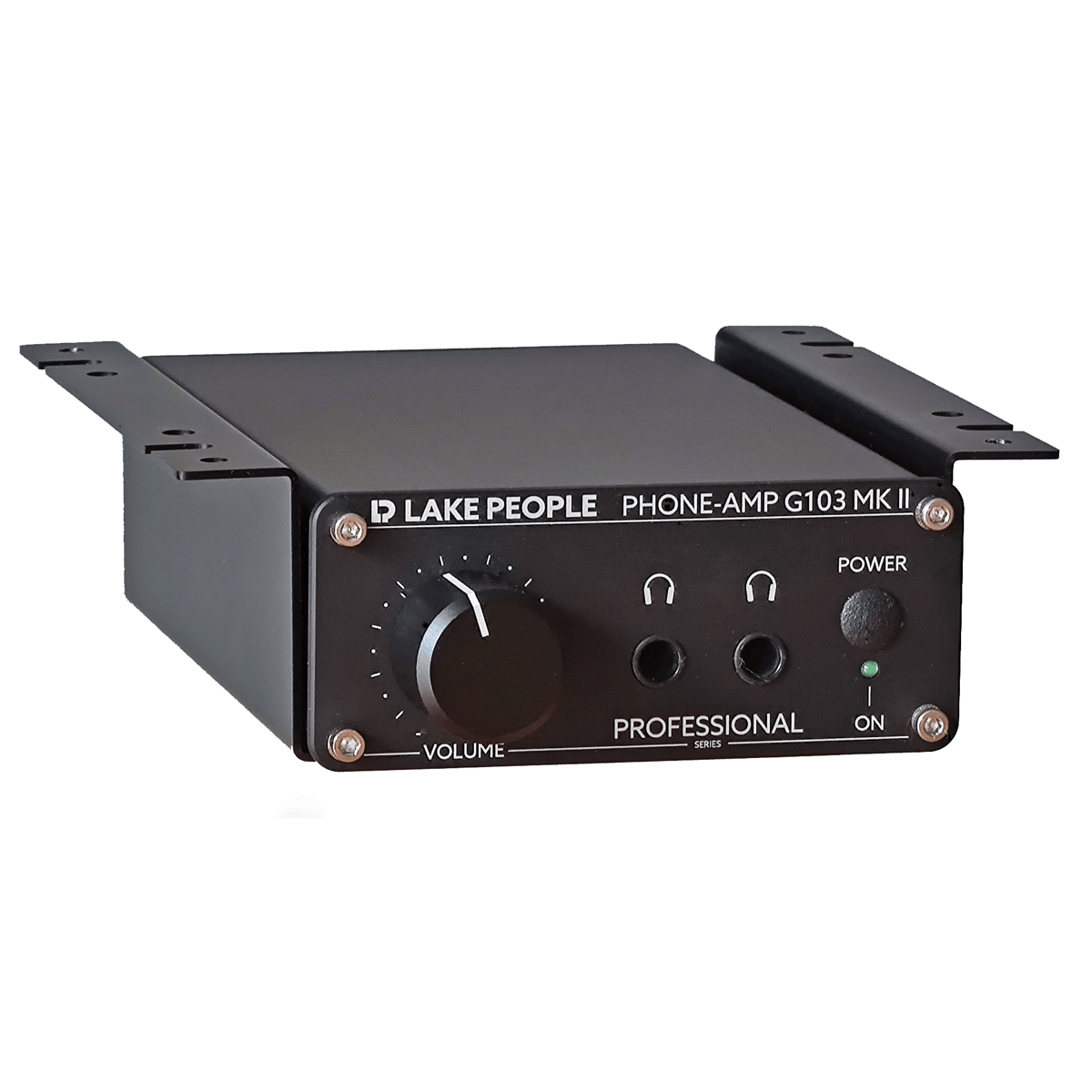

The Lake People Phone-Amp G103P MKII Broadcast Version is the smallest and most powerful headphone amplifier with XLR inputs and is manufactured in Germany. Lake People headphone amplifiers are carefully designed to preserve the fidelity and dynamics of your audio signal in its original, unaltered form.

The G103P MKII Broadcast version can look back on a long line of ancestors, starting with the G3 from 1994 and continuing with the G93 from 2005, with the aim of making the “entry-level” Lake People headphone amplifier sound better, more powerful and more robust.

Over the years, the headphone amplifier has earned a reputation for its robust construction and reliability, and not just among professionals. The broadcast version of the G103P MKII is designed for all applications where the device must not be switched off during operation. For this reason, the power switch function has been deactivated.

The Lake People G103P MKII contains everything that is still important to us today:

• robust, indestructible amplifiers with high transmission quality

• long-term stable Alps RK14 potentiometers for volume control

• 25 mm volume knob milled from aluminum

• more than adequately dimensioned internal power supply


Inputs & outputs

Analog stereo inputs:
1x Neutrik XLR, balanced

Headphone outputs:
2x jack 6.3 mm, unbalanced

Lake People PRE-GAIN

5-way adjustable gain for optimum adaptation to all sources and headphones (internal, -6, 0, +6, +12, +18 dB).

Unlike comparable models, the overall amplification can be adapted to the headphones used via internal jumpers. Thanks to this special Lake People technology, the headphone amplifier can be operated with almost all known headphone impedances from 8 - 600 ohms and is as low-noise and dynamic as possible.

Perfect headphone protection

Lake People headphone amplifiers are equipped with various protective circuits to prevent headphone defects. These circuits protect against overvoltages, sudden current peaks or short circuits that could damage sensitive headphones. The integration of such protection mechanisms ensures that the amplifier always supplies the headphones with safe and stable power, which significantly extends their service life.

Housing and elements of the highest quality

The housing of the G103P MKII is made of black anodized aluminium. This promises high mechanical stability and resistance to harsh environmental influences. The high electrical conductivity of the surfaces results in excellent EMC properties.

The thickness of the front panel is 3 mm.

The solid milled 25 mm aluminum rotary knob is characterized by its clear design and forms the center of the Lake People G103P MKII. Thanks to its balanced weight and the Alps RK14 potentiometer, it provides a smooth, high-precision rotary feel for precise volume control.

Recommended accessories

For the G103P MKII Broadcast Version, you can obtain the mounting bracket (#1008572) for mounting the device under a table top and also the mounting plate (#1008573) for mounting the G103P MKII Broadcast Version on a microphone stand.

Features

• unbalanced Inputs via gold plated RCA connectors
• PRE-GAIN: internal gain adaption in five steps
• Power Stages with power op-amp OPA551
• compact and extremely rugged aluminium case
• Made in Germany
