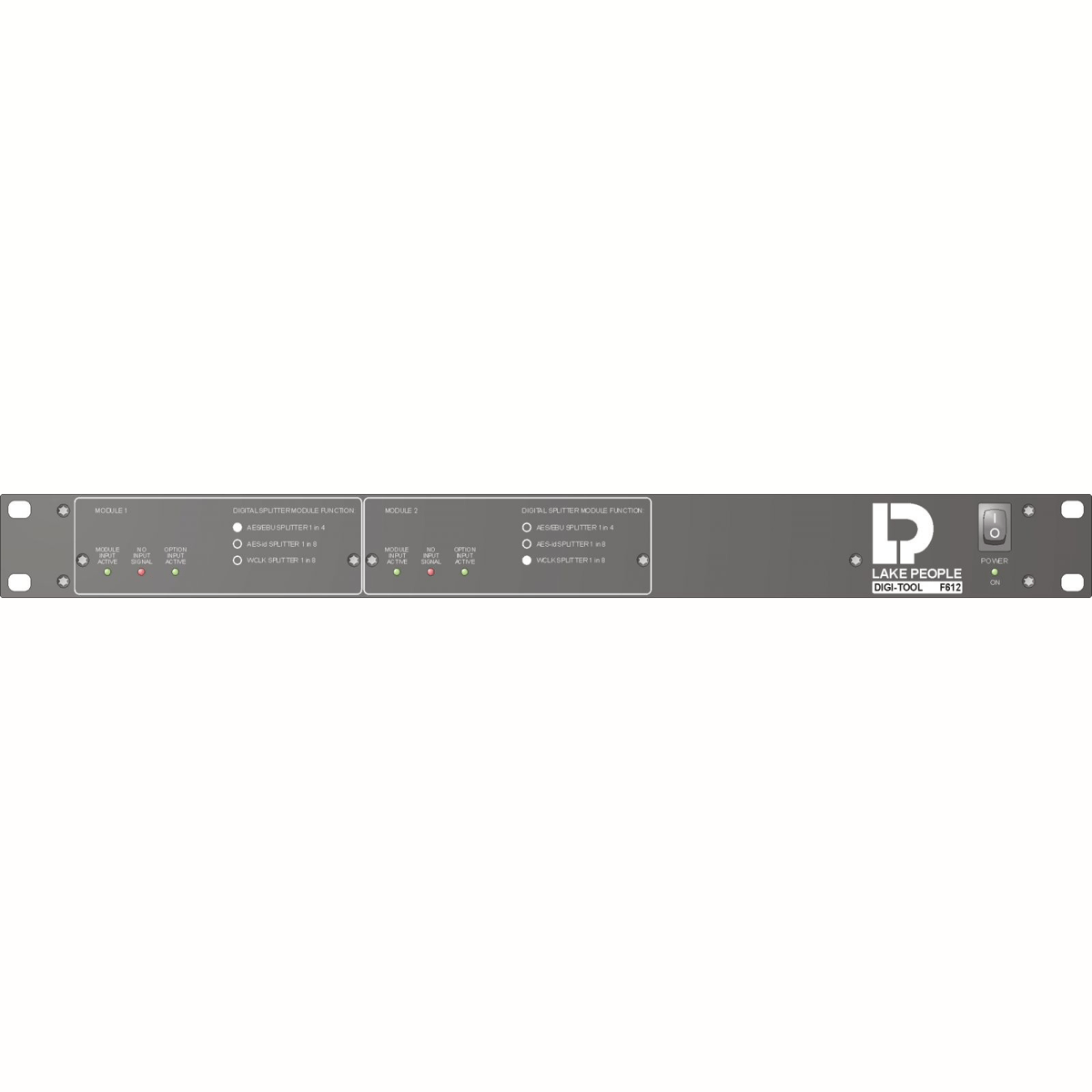

LAKE PEOPLE DIGI-TOOL F612

MODULE 2 (WCLK/AES-id Splitter)
- 1 input and 8 outputs via BNC sockets, unbalanced, impedance 75 ohms
- High sensitive inputs to regenerate unproper or weak input signals
- High output voltages to drive long distances
- Jumpers to switch the output impedance from 75 ohms to 50 ohms to drive improper WCLK inputs
- Jumpers to switch to AES-3id operation
- Jumpers to switch to “Superclock 256 Fs”

- Failsafe operation through switchable Auto-Mode Multimode power supply 90 … 260V AC
- 19”, 1 U stainless steel case, front dark grey

MULTI-SYNC UNIT OPTION:
The MULTI-SYNC UNIT option offers the following features:
- 3 external inputs, sample rate 28 ... 210 kHz, AES/EBU, AES-id, WCLK - 1 AES-EBU sync output
- Internal oscillators with 32, 44.1, 48, 88.2, 96, 176.4, 196 kHz
- Auto-Mode, Format, Key-Lock und Mute switchable
- Displays for: Sync-Source, Sample-Rate, Lock, Error, Mute, Pro/Con- Format, Auto-Mode, Key-Lock

Features

• digitaler Verteilverstärker für AES/EBU, AES-id, WCLK Signale
• 2 Eingängen
• 4+8 Ausgängen
