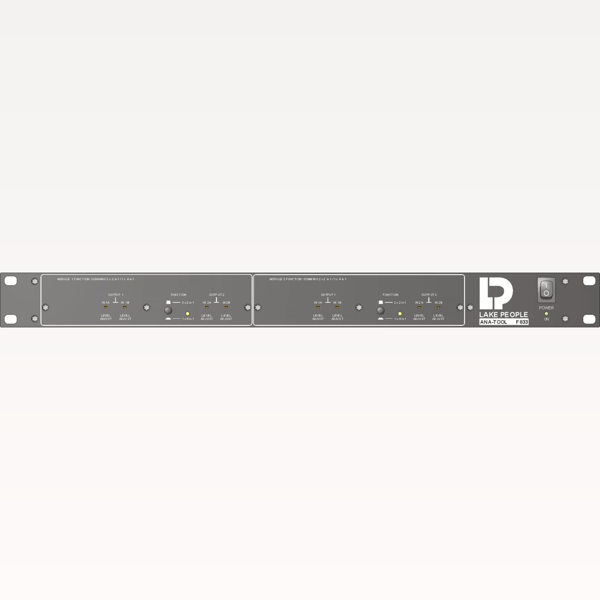

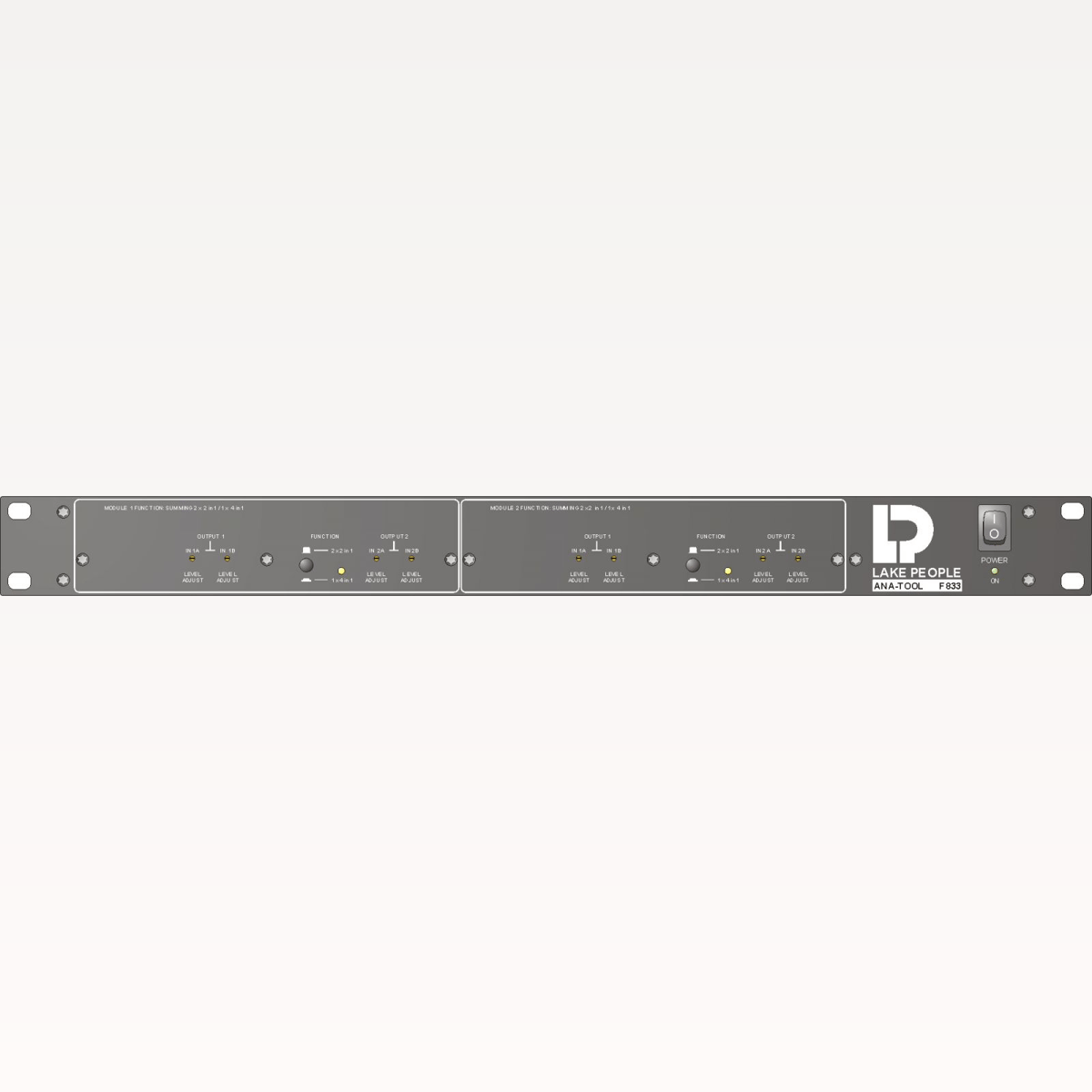

LAKE PEOPLE ANA-TOOL F833

- 2 x 2 identical sections with two balanced inputs and one balanced output each (4 x 2 in 1)
- Front operated switch for 2 x 2 in 1 or 4 in 1 operation In this case
- The output signal then is splitted and present on both outputs
- Rear inputs electronically balanced via XLR
- XLR sockets with gold plated contacts
- Optimized for line-level signals, impedance 20 kohms
- Differencial input circuits specialized for highest common mode rejection ratio (CMRR)
- Internal filters to reduce the bandwidth to a safe and useful range from 5 Hz … 70 kHz (-1 dB)
- Front accessible multiturn trimpots for level adjustment with a range from -12 … +12 dB
- Balancing of the output signals with optimized circuits for highest resistance- and voltage common mode rejection ratio (CMRR)
- Output impedance 30 ohms according to IRT rules
- XLR type output sockets with gold plated contacts
- 19”, 1 U stainless steel case, front color dark grey

Features

• Symmetrierung der Ausgangssignale mit optimierten Schaltungen für höchste Widerstands- und Spannungsunsymmetriedämpfung
• Frontseitige Spindeltrimmer zur Pegeleinstellung im Bereich -12 … +12 dB
• Differenzierung der Eingangssignale mit höchster Gleichtaktunterdrückung
• Optimiert für Line-Level Signale, Impedanz 20 kOhm
• Frontseitig schaltbar von 2 x 2 in 1 auf 4 in 1.
• IRT konforme Ausgangsimpedanz 30 Ohm
• 2 x 2 identische Sektionen
