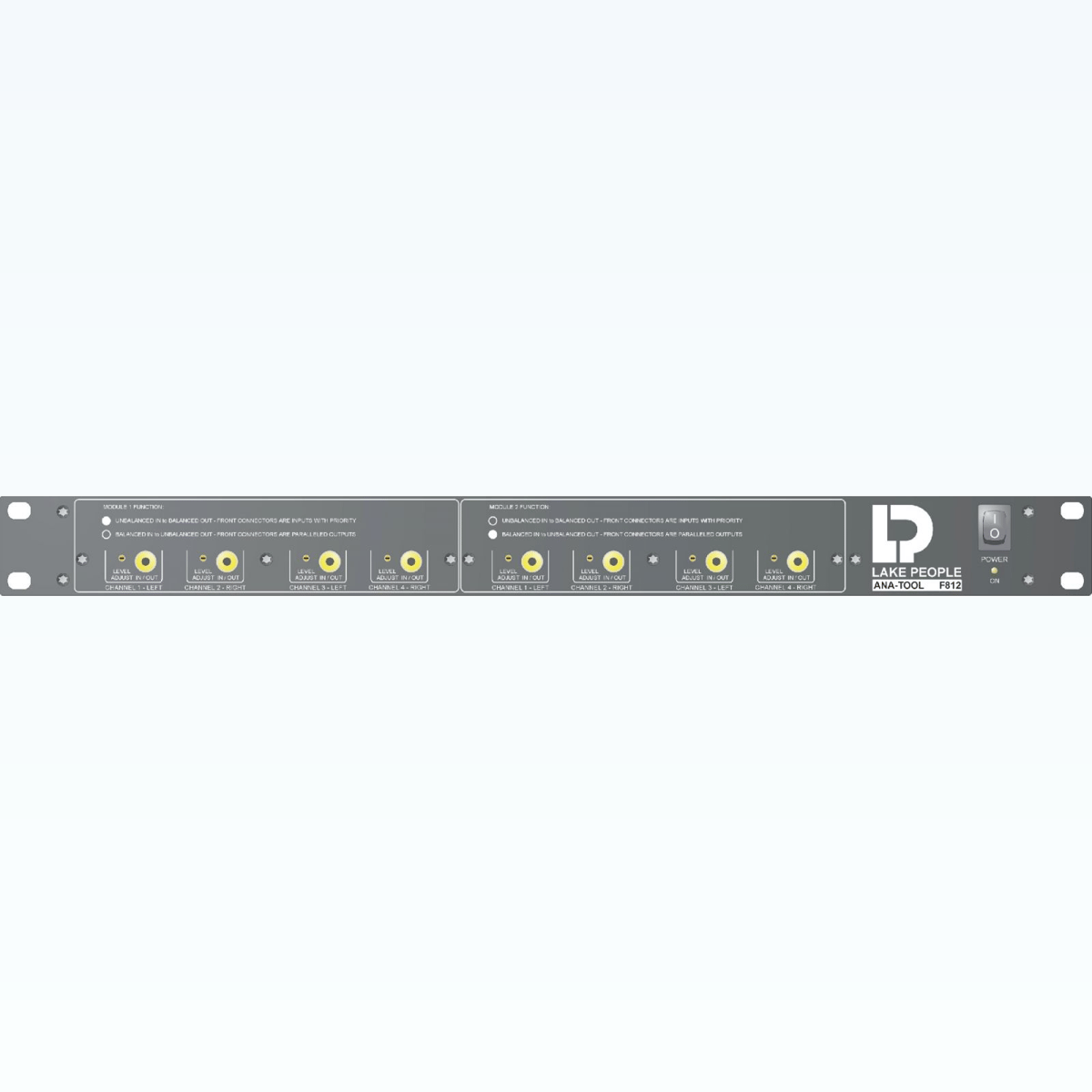

LAKE PEOPLE ANA-TOOL F812

Module 1:
- 4 identical sections from consumer level to “-10 dB” to studio level
- Rear inputs via gold plated Cinch (RCA) sockets
- Front inputs via gold plated Cinch (RCA) sockets with priority
- Front accessible multiturn trimpots for level adjustment
- Balancing of the output signals with highest common mode rejection ratio (CMRR)
- Rear output with gold plated XLR connectors

Module 2:
- 4 identical sections from studio level to consumer level “-10 dB”
- Rear inputs balanced via gold plated XLR sockets
- Unbalancing of the input signal with highest common mode rejection ratio (CMRR)
- Front accessible multiturn trimpots for level adjustment
- Unbalanced outputs on the front- and rearpanel with gold plated Cinch (RCA) sockets

Features

• Symmetrierung der Ausgangssignale mit höchster Unsymmetriedämpfung
• 4 identische Sektionen von Konsumer-Level “-10 dBu” auf Studiopegel
• 4 x Desymmetrier-Verstärker (Differenz-Verstärker)
• Symmetrierung, Impedanz und Pegelanpassung
• Frontseitige Spindeltrimmer zur Pegeleinstellung
• 4 x Symmetrier-Verstärker
