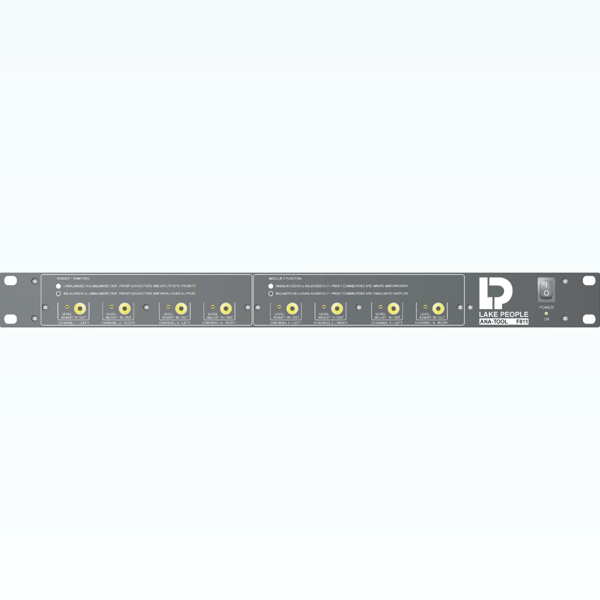

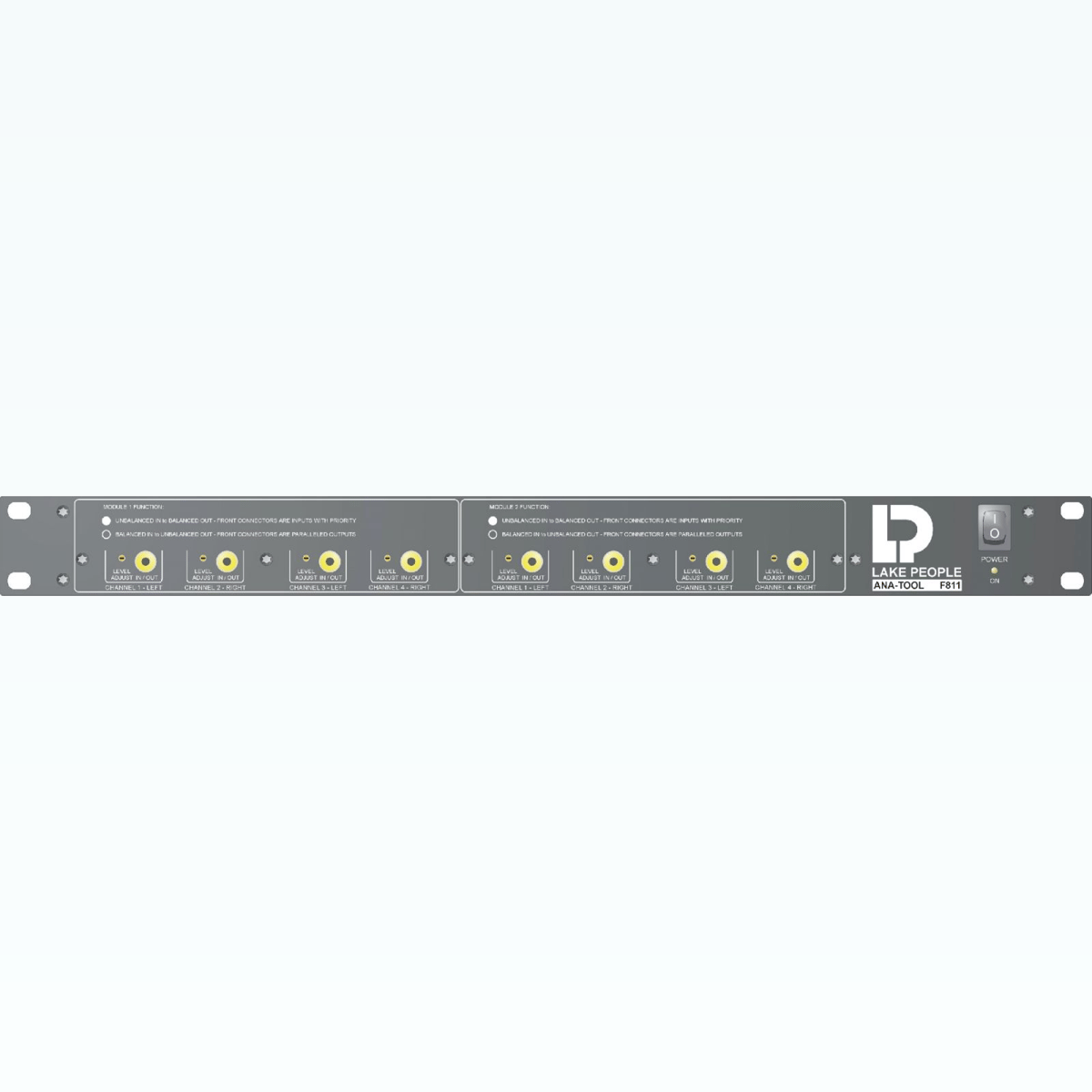

LAKE PEOPLE ANA-TOOL F811
- 2 x 4 identical sections from consumer level to studio level
- Rear inputs via Cinch (RCA) sockets
- Front inputs via Cinch (RCA) sockets with priority
- All inputs with gold plated contacts
- Inputs optimized for “-10 dBu” signals
- Impedance 50 kohms
- Internal filters to reduce the bandwidth to a safe and useful range: 5 Hz … 70 kHz (-1 dB)
- Front accessible multiturn trimpots for level adjustment with a range from -3 … +21 dB
- Balancing of the output signals with optimized circuits for highest resistance- and common mode rejection ratio (CMRR)
- Output impedance 30 Ohms according to IRT rules
- XLR type output sockets with gold plated contacts
- 19”, 1 U stainless steel case, front color dark grey
Option:
Outputs with “active feedback” transformers (up to 8 tranformers may be installed)
Features
- Frontseitige Spindeltrimmer zur Pegeleinstellung im Bereich -3 … +21 dB
- 2 x 4 identische Sektionen von Konsumer-Level auf Studiopegel
- Symmetrierung, Impedanz und Pegel-Anpassung
- IRT konforme Ausgangsimpedanz 30 Ohm
- Eingänge optimiert für “-10 dBu” Signale
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Item number:
- 1006212
- Max. Input Voltage
- > +21 dBu
- dimensions
- 483 x 44 x 166 mm (WxHxD)
- housing form
- 19" / 1 HE
- output impedance
- 30 Ohm
- Input Impedance
- 50 kOhm
- Line I/O
- 8 / 8 (XLR/RCA)
- max. output level
- > +25 dBu
- power supply
- Internal 230 V / 115 V AC
- THD+N (@ -1 dBFs)
- < -100 dB
- frequency range
- 5 Hz - 70 kHz ( -1 dB)
- crosstalk
- < -100 dB (@ 15 kHz)
- gain range
- -3 - +21 dB
Manufacturer's Description — LAKE PEOPLE
- 2 x 4 identical sections from consumer level to studio level
- Rear inputs via Cinch (RCA) sockets
- Front inputs via Cinch (RCA) sockets with priority
- All inputs with gold plated contacts
- Inputs optimized for “-10 dBu” signals
- Impedance 50 kohms
- Internal filters to reduce the bandwidth to a safe and useful range: 5 Hz … 70 kHz (-1 dB)
- Front accessible multiturn trimpots for level adjustment with a range from -3 … +21 dB
- Balancing of the output signals with optimized circuits for highest resistance- and common mode rejection ratio (CMRR)
- Output impedance 30 Ohms according to IRT rules
- XLR type output sockets with gold plated contacts
- 19”, 1 U stainless steel case, front color dark grey
Option:
Outputs with “active feedback” transformers (up to 8 tranformers may be installed)
Features
- Frontseitige Spindeltrimmer zur Pegeleinstellung im Bereich -3 … +21 dB
- 2 x 4 identische Sektionen von Konsumer-Level auf Studiopegel
- Symmetrierung, Impedanz und Pegel-Anpassung
- IRT konforme Ausgangsimpedanz 30 Ohm
- Eingänge optimiert für “-10 dBu” Signale
