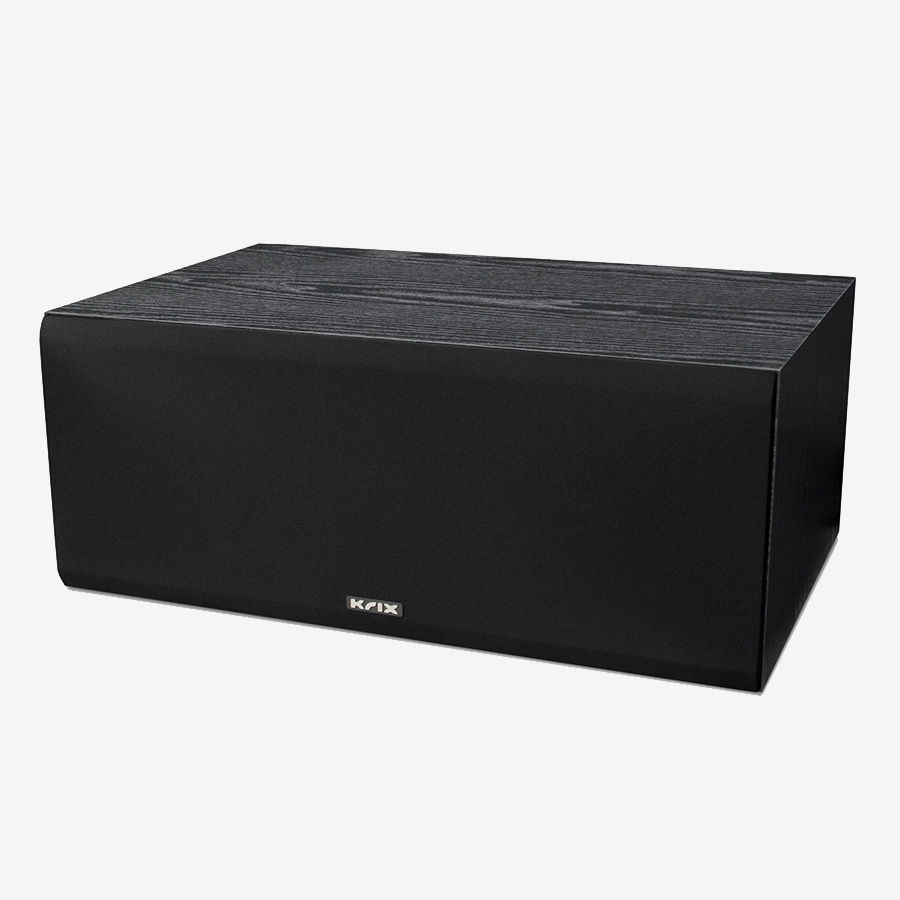

Krix GRAPHIX Mk2
Placed above or inside cabinetry, the dynamic range and bass extension of the Graphix Mk2 will bring your multi-channel system to life.
The Graphix centre channel delivers precise timbral matching to the Krix Acoustix Mk2 main speakers. Working together, the speakers produce a seamless, dynamic and acoustically intricate multi-channel surround experience.
Dual 130mm bass/mid-range drivers, each with heavy-duty voice coils and a high powered magnet assembly, combine to deliver a powerful bass response. Highs are provided by a 26mm high frequency driver, with a wave-guide centre plug for controlled directivity and improved intelligibility and transparency.
A compact centre, also perfectly matched to any of the Krix main speaker range, the Graphix Mk2 gives you the ultimate flexibility to choose a home theatre system that suits your room. Thanks to its dual front firing vents, the Graphix can be placed inside cabinets and AV furniture, eliminating any ‘boomy’ bass resonance.
For the ultimate sound experience at home, play it through Krix.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Forum Mentions
Specifications
- Frequency range
- 45Hz-40kHz in room response
- Power handling
- 20 – 160 Watts RMS recommended amplifier power
- Sensitivity
- 89dB for 2.83 volts at 1 metre
- Impedance
- Nominally 6 Ohms (minimum 4.3 Ohms)
- Configuration
- D-Appolito, 2-way
- Enclosure type
- Bass reflex, front vented
- Low frequency drivers
- Fibre reinforced moulded polymer baskets with 2 x nominal 130mm (5″) doped paper cones. 25mm (1″) voice coil wound on high powered aluminium former, with vented magnet assembly
- High frequency driver
- 26mm (1″) dual concentric diaphragm with wave guide centre plug for controlled directivity. Neodymium magnet
- Input terminals
- Gold plated binding posts
- Dimensions
- 180mm high x 450mm wide x 300mm deep
- Weight
- 10kg each
Manufacturer's Description — Krix
Placed above or inside cabinetry, the dynamic range and bass extension of the Graphix Mk2 will bring your multi-channel system to life.
The Graphix centre channel delivers precise timbral matching to the Krix Acoustix Mk2 main speakers. Working together, the speakers produce a seamless, dynamic and acoustically intricate multi-channel surround experience.
Dual 130mm bass/mid-range drivers, each with heavy-duty voice coils and a high powered magnet assembly, combine to deliver a powerful bass response. Highs are provided by a 26mm high frequency driver, with a wave-guide centre plug for controlled directivity and improved intelligibility and transparency.
A compact centre, also perfectly matched to any of the Krix main speaker range, the Graphix Mk2 gives you the ultimate flexibility to choose a home theatre system that suits your room. Thanks to its dual front firing vents, the Graphix can be placed inside cabinets and AV furniture, eliminating any ‘boomy’ bass resonance.
For the ultimate sound experience at home, play it through Krix.
