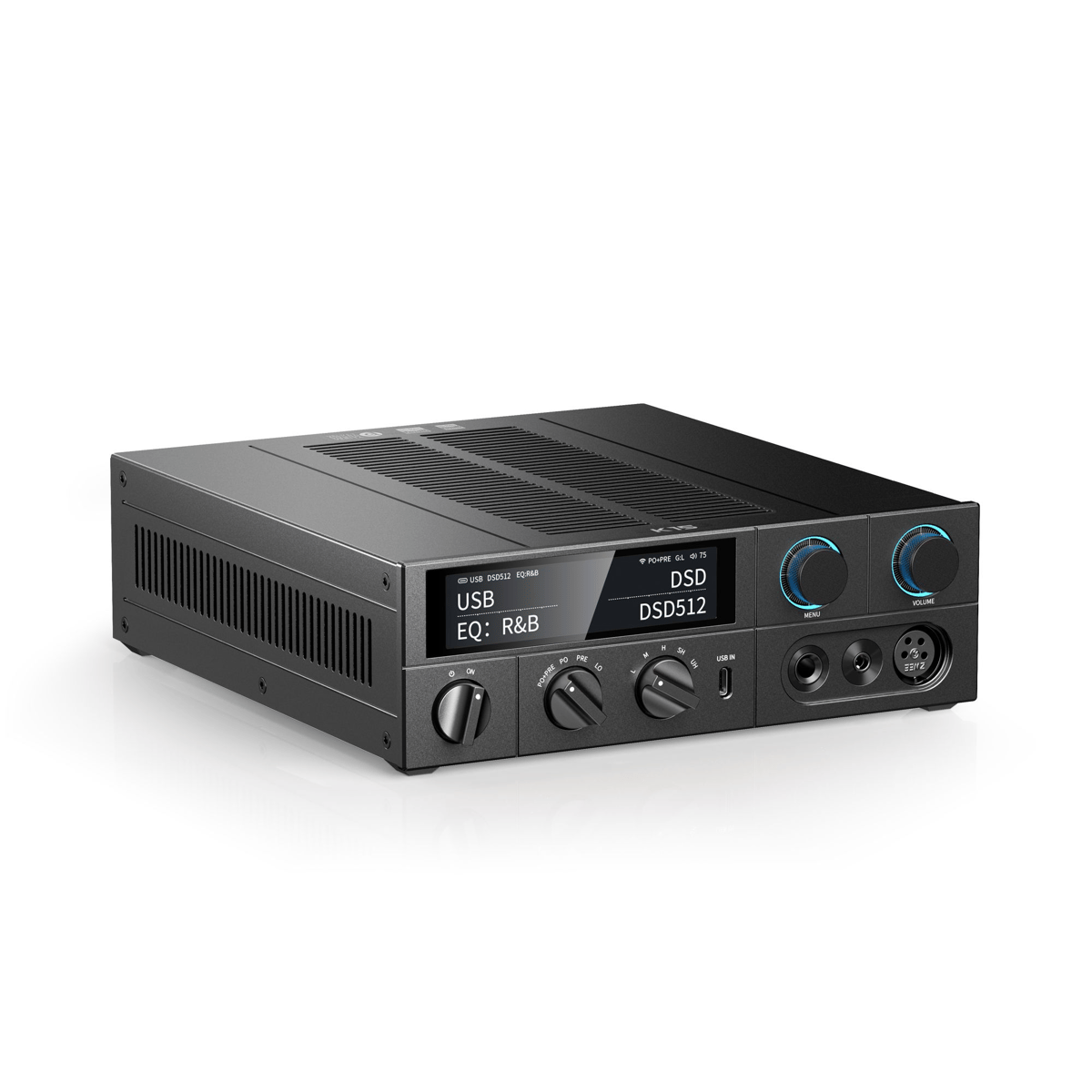

FiiO K17

*Pictures are for reference only. The real product may vary.

Exploring new frontiers Symphony of retro elegance and modern technology

This is the next generation desktop decoding headphone amplifier, aiming to be a unique and excellent performer. It is a symphony of retro elegance and cutting-edge technology, featuring a unique design and rich functionality all wrapped in a powerful package. The FIIO K17 is not only the upgraded successor to the K9 Pro, it is also an exploration of new possibilities for a high-end desktop DAC and headphone amplifier.

A mixing console for desktop HiFi

Specialty chips for specialty uses Exceptionally strong

The K17 features an M21586Q DSP chip which is capable of double- precision 64-bit floating-point calculations, and runs at a high 360MHz clock frequency. This chip is complemented by a high-performance ES9821Q ADC as well as a specially customized ultra-low phase noise femtosecond crystal oscillator. These three components allow the user, in all modes, to utilize the 31-band high-precision lossless PEQ. The PEQ is designed to ensure the audio signal is still of high fidelity even after being processed. The chip also allows for robust output protection functionality, ensuring that headphones and other connected audio equipment are fully protected.

31-band high-precision lossless PEQ

DEL (Dual Engine Limiter) technology together with proprietary algorithms allows the K17’s PEQ to be capable of dynamic range compression(DRC)/ dynamic range expansion (DRE), limiter, and compressor adjustment functions. PCM 44.1k~96k signals can be processed in the PEQ without sample rate conversion. Fine adjustments of audio parameters are thus possible, allowing for adjustments such as a gain range of +12~-24dB and a Q value range of 0.4dB~128dB. The PEQ allows the user to simulate or correct the frequency response curve PEQ settings can be easily exported,  imported, shared, and saved - making it easy for anybody to use the PEQ and correct or simulate various frequency response curves of different headphones.

Discrete class AB transistor current amplification headphoneamplifier

An important part of the K17 is a carefully crafted fully discrete amplifier circuit for headphones. This discrete circuit is of an OP+ transistor current amplification design, equipped with the classic pair of ON Semiconductor MJE243/253 transistors. It is capable of producing high current with low output impedance. The result is up to 4000mW+4000mW output power in balanced mode, nearly double that of the K9 Pro ESS. This allows it to easily drive various kinds of headphones and IEMs and to produce smooth, pleasant, and natural sound.

Powerful output

AKM flagship DAC AK4191+AK4499EX*2

In the K17 is the flagship AKM DAC chip combination - AK4191+AK4499EX*2. Two AK4499EX chips handle each channel. The 8-channel to 4-channel LPF design reduces common mode interference, resulting in better channel separation and dynamics. It also features a newly designed architecture with fully separated digital/analog portions, which also incorporates the newly developed “DWA ROUTING” technology for an even cleaner audio background and improved resolution.

Eight operating modes

Fully balanced design

From the DAC, to the I/V conversion, to the low-pass filtering, and to headphone amp, the entire audio circuit is of a fully differential circuit architecture design. This ensures both high dynamic ranges of the signals as well as significantly reduced crosstalk. Various parts of the audio circuit, including the I/V conversion and LPF stages, use multiple low-noise precision operational amplifiers OPA1612 to ensure dynamic audio output.

Physically separated boards

The various sections of the internal power supply, digital, and analog sections are all located on physically separated circuit boards to avoid interference between them. This ensures the accuracy and integrity of signal processing for purer, cleaner audio output.

Precision power supply design

35W low-noise linear power supply Five large 4700μF electrolytic capacitors

Powering the K17 is a custom high-quality low-noise transformer, ensuring the purity of the power supplied. Additionally, five 4700μF electrolytic capacitors provide ample power reserves to ensure a steady supply of power.

Separate power supplies for analog and digital circuits

Separate power supplies for the digital and analog circuits effectively avoid crosstalk and interference between them.

Multi-stage analog power supply

The K17’s analog audio circuit is powered by a multi-stage power supply. Many of the stages have a dedicated power control circuit, including those for the digital-to-analog conversion, LPF, and transistor. Low-noise, high-power supply rejection ratio (PSRR) TPA7A47/7A33 LDO regulators also act as secondary voltage regulators to continuously provide stable and clean power.

Precisely restored audio Every last detail audible

3 ACCUSILICON low phase noise femtosecond audio crystal oscillators

The K17 employs three industry-leading ACCUSILICON ultra-low phase noise femtosecond crystal oscillators, including the AS318-L (45.1584MHz, 49.1520MHz) and AS318-Pro (24.576MHz). These significantly reduce the impact of phase noise on audio signals, allowing audio signals of various sampling rates to be precisely and faithfully restored – resulting in purer and more consistent sound.

High-end parts All for great sound

High-quality Beryl solid capacitors

8 Panasonic film capacitors + 32 wafer resistors

Low temperature drift and low noise mean consistent sound quality in both hot and cold temperatures.

Ultra-low ESR, strong anti-interference capabilities, stable and pure power supply

NEUTRIK gold-plated connectors

4 sets of silver-plated oxygen-free copper connecting cables

Audio signals transmitted between different internal boards are high-quality with minimal loss via the use of silver-plated oxygen-free copper wires.

Tulip-shaped connectors that are anti-oxidation and wear-resistant, allowing for precise and reliable connections.

4 ELNA SILMIC II capacitors 4 Nichicon audio-specific capacitors 6 ELNA RA3 audio-specific capacitors

High-quality sound, grand soundstage

Dual-core design Smooth stable experience

High-performance X2000 multi-core processor: The processor features a unique design consisting of a main XBurst@2 CPU core with two logic CPUs plus an XBurst@ small core. This chip offers excellent computing power with low power consumption. The X200 ensures precise audio signal processing and stable, smooth audio playback. Low-power ESP32-S3 SoC: Within this chip is a high-performance Xtensa 32-bit LX7 dual-core processor capable of running up to 240MHz as well as an ultra-low power consumption co-processor. This SoC allows the K17 to provide a fast and smooth user experience.

Square and circle A surprisingly synergistic combo

The design cleverly blends square and circle into a harmonious whole, combining retro elegance with a modern technological aura, for a refreshing experience. There is thoughtful consideration in both functionality and design: examples include the multiple knobs exist for easier control, and a grid structure for faster heat dissipation.

Easy to use Multiple control methods

Included infrared remote control

5 control knobs

Touch controls

A remote allows you to more conveniently switch between operating modes, pick between EQ settings, and adjust the volume from a comfortable distance.

Going into standby just takes one press. The knobs also allow you to quickly and easily adjust volume, gain output, and other settings.

The custom 3.93-inch LCD screen allows you to quickly adjust various settings and gain access to various functions through touch.

Listen without worry Multiple protection systems

Listen with peace of mind with various protection mechanisms that can intelligently detect abnormal conditions and perform automatic protection to avoid damage to the device, including headphone amp temperature protection, transformer temperature protection, output overload protection, output DC protection, and power input overcurrent protection.

Output DC protection

Power input overcurrent protection

Output overload protection

Transformer temperature protection

Wired or wireless Always online

The Ethernet port supports up to Gigabit speeds for fast and stable data transmission. The AP6256 Wi-Fi module supports 2.4G and 5G wireless networks as an alternative yet equally stable method of transmitting lossless audio.

Many usage scenarios

Scenario 6：K17 receives an analog signal from a digital music player, processes the signal with PEQ, and outputs through headphones or active speakers via the line output.

Scenario 5: K17 is connected to a USB flash drive or portable hard drive, locally playing music through headphones or active speakers.

Scenario 4: K17 is connected to a digital music player via the front panel USB port, with headphones or active speakers connected.

Scenario 2:  K17 is connected to a computer, plays music on a NAS through Roon.

Scenario 1: K17 is connected to a computer via USB, with headphones and active speakers to be connected simultaneously.

Scenario 3:K17 is connected to an amp and passive speakers, receiving music from an iPad through AirPlay.

*The K17 is currently being certified to be Roon Ready. *Maximum current output of the USB-A port is 500mA, enough for USB flash drives. If you need to connect a  portable hard drive, please connect a separate power supply for that drive.

Buttons and ports labeled

Packing list

①---------------------------------------------------K17*1 ②----------------------------------------AC power cord*1 ③---------------------------------------Remote control*1 ④--------------------------------------  XLR4 plugcover*1

⑤-------------------------------------------- ----    Fuse*1

⑥---------------------------------------USB data cable*2 ⑦---------------------------  Headphone plug adapter*1

⑧---------------------------------------- Warranty card*1

⑨-------------------------------------Quick start guide*1
