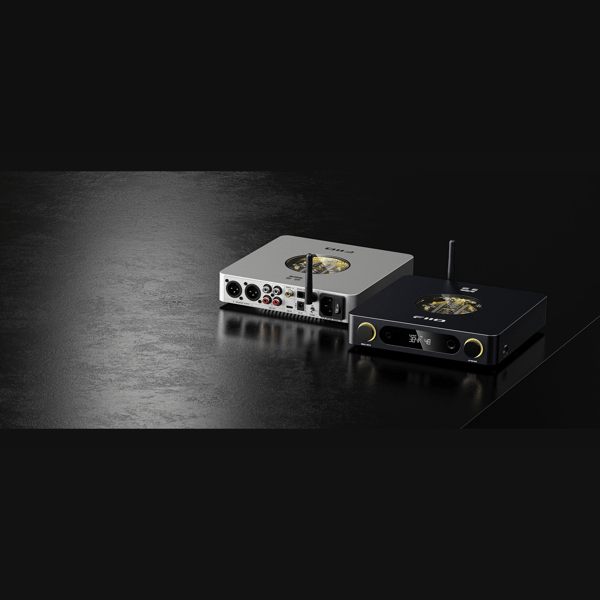

FiiO K13 R2R

*Pictures are for reference only. The actual product may vary.

Fully differential True 24bit

R2R DAC Resistor Arrays

FIIO’s proprietary four-channel fully differential 24-bit R2R resistor array DAC is composed of 48 precision thin-film resistors per channel, for a total of 192 resistors across four channels. Each resistor features 0.1% accuracy and low temperature drift (30ppm). This R2R DAC allows the K13 R2R to deliver a uniquely rich and musical sound.

Comparison between fully differential and typical architectures

The K13 R2R employs a fully differential architecture that leads to lower noise, and fewer FFT harmonics, resulting in a darker music background.

Dual NOS/OS modes Double the fun

NOS (Non-Oversampling) Mode: Maintains the original sampling rate for decoding, preserving authentic sound and allowing you to enjoy an organic and captivating musical experience.

OS (Oversampling) Mode: Upsamples globally to a high sampling rate of 384kHz, for superior audio performance and even more refined, clear sound.

*The K13 R2R supports 1Bit DSD native decoding. When playing DSD tracks, slightly lower volume is a normal phenomenon. It is recommended to adjust the volume to a normal listening level. In this mode, the menu setting SAM:OS will be disabled.

*In different modes, the actual listening experience may vary depending on various subjective and objective factors. Please refer to your own personal listening experience.

NOS (Non-Oversampling) Mode

OS (Oversampling) Mode

Preamplifier + power amplifier output Desktop decoding hub

With a wide variety of inputs and outputs, this unit functions as both a preamplifier and a power amplifier, catering to various listening preferences. It also supports PCM 384kHz/32bit and DSD256 decoding, allowing it to effortlessly process high-resolution audio signals to deliver rich sonic detail and for an outstanding listening experience.

Ten-band high-precision PEQ Effortless sound customization

The K13 R2R, with the help of the XMOS XU316 platform, features specially-developed PEQ*, with support for 10 frequency band adjustments across all operating modes. With FIIO's proprietary tuning algorithm, accessible through their app or web interface*, you can easily utilize preset tunings like "Retro PEQ," or even simulate and correct headphone frequency response curves. It also supports exporting, importing, sharing, and saving EQ curves, and auto-EQ, making sound tuning effortless.

*PEQ can be used to adjust audio signals up to PCM 192kHZ/24bit sampling rate.

*Please visit the following website to access the web version of the PEQ: https://fiiocontrol.fiio.com/. The web version of the PEQ is supported only under USB input with EQ setting to non-off state. When using other modes, the PEQ can be adjusted through the FIIO Control app.

Fully balanced audio amplifier circuit

The entire audio chain, including the R2R DAC, LPF, volume control, and headphone amp, uses fully differential signal processing for excellent interference rejection, minimal distortion, and high dynamic range. The amplification circuit also features gain control, headphone protection mechanisms, and POP noise elimination for a robust and reliable audio experience.

Specially-designed power supply

DC/AC dual power supplies

The built-in 30W switching power supply is protected by an alloy nickel-plated shielding cover, which significantly boosts its anti-interference capabilities and ensures a cleaner power supply. Additionally, it also features an external DC power input*, allowing you to pair it with a higher-performance linear power supply for a different sound experience.

*Supported external DC power supply specifications are 12V-2.5A (or greater than 2.5A) with a 5.5*2.1mm connector.

Multi-rail power supply, Robust performance

With up to 18 low-noise LDOs and 5 DC-DC converters in total, this unit employs a multi-rail power supply to provide strong and clean power for exceptional audio output.

Power Supply Module

Analog power supply

High-quality

ELNA RA3 audiophile-grade electrolytic capacitors

Premium ELNA RA3 series silk-film audio capacitors and specialized audio tantalum electrolytic capacitors work together to ensure a pure, stable power supply for the device, delivering a warm and natural sound.

Robust output Revealing every last detail

Boasting a balanced output power of 2400mW+2400mW into a 32Ω load, the K13 R2R can effortlessly drive both high-fidelity IEMs and headphones, unlocking their full potential and allowing them to render every last detail.

Superior screen

Superior clarity

A custom, high-contrast, long-lasting HD LCD display* clearly shows the device’s current status at a glance, including sampling rate, volume, gain, and output mode.

*Long-lasting LCD display, can always be on without risk of burn-in

Infrared remote control

Minimalist design With technological elegance

FiiO Control App connection

Dual-knob control

The thickened, unibody aluminum alloy casing, paired with a brand-new “skylight” design, not only continues the K11 series’ minimalist design language but also introduces a literal technological window into the R2R resistor series. The flowing light and vibrant colors showcase a unique tech aesthetic.

Adjustable RGB logo lighting

With support for Bluetooth 5.4 and reception for the LDAC/AAC/SBC codecs, the K13 R2R allows you to be immersed in a world of high-quality music even when listening wirelessly.

Precisely designed Perfect performance

Three gain levels, three independent volume curves

Different gain levels mean the K13 R2R is better able to adapt to various kinds of IEMs and headphones for better listening experiences. Moreover, volumes of PO and PRE can be memorized independently.

Overheating protection, overload protection

Protection mechanisms will automatically kick in when abnormal operating conditions are detected to avoid damage to the unit, making it safer to use.

Adjustable RGB lighting

Not only does the RGB lighting indicate the current audio sampling rate, but you can also customize the brightness, colors, and whether it pulses or not.

1-99 minutes timer shutdown

Convenient functionality, meeting your needs

*Timer shutdown works one time after being set each time

Parts list

① K13 R2R*1

② Infrared remote control*1

③ AC power cord*1

④ Quick start guide*1

① K13 R2R*1

⑤ Warranty card*1

⑥ Headphone adapter*1

⑦ USB data cable*1
