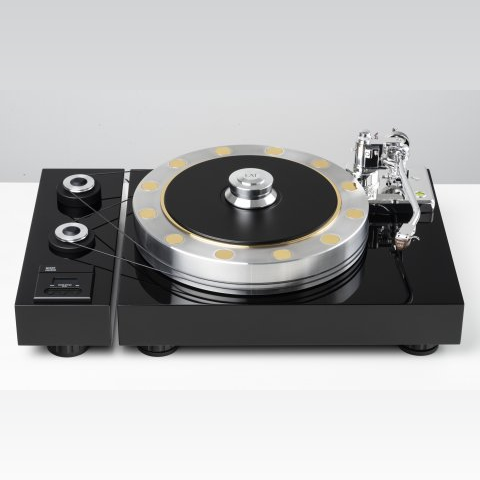

Fortissimo Turntable

Name: E.A.T. - European Audio Team Fortissimo Turntable
Brand: E.A.T. - European Audio Team
SKU: fortissimo-turntable
Price: 11999.00 USD
Availability: InStock

E.A.T. - European Audio Team Fortissimo Turntable #1

E.A.T. - European Audio Team Fortissimo Turntable variant 1

E.A.T. - European Audio Team Fortissimo Turntable variant 2

E.A.T. - European Audio Team Fortissimo Turntable variant 3

E.A.T. - European Audio Team Fortissimo Turntable variant 4

E.A.T. - European Audio Team Fortissimo Turntable variant 5

E.A.T. - European Audio Team Fortissimo Turntable variant 6

E.A.T. - European Audio Team Fortissimo Turntable variant 7

E.A.T. - European Audio Team Fortissimo Turntable variant 8

E.A.T. - European Audio Team Fortissimo Turntable variant 9

E.A.T. - European Audio Team Fortissimo Turntable variant 10

E.A.T. - European Audio Team Fortissimo Turntable variant 11

E.A.T. - European Audio Team Fortissimo Turntable variant 12

E.A.T. - European Audio Team Fortissimo Turntable variant 13

E.A.T. - European Audio Team Fortissimo Turntable variant 14

E.A.T. - European Audio Team Fortissimo Turntable variant 15

E.A.T. - European Audio Team Fortissimo Turntable variant 16

E.A.T. - European Audio Team Fortissimo Turntable variant 17

E.A.T. - European Audio Team Fortissimo Turntable variant 18

E.A.T. - European Audio Team Fortissimo Turntable variant 19

E.A.T. - European Audio Team Fortissimo Turntable variant 20

E.A.T. - European Audio Team Fortissimo Turntable variant 21

E.A.T. - European Audio Team Fortissimo Turntable variant 22

E.A.T. - European Audio Team Fortissimo Turntable variant 23

E.A.T. - European Audio Team Fortissimo Turntable variant 24

E.A.T. - European Audio Team Fortissimo Turntable variant 25

E.A.T. - European Audio Team Fortissimo Turntable variant 26

E.A.T. - European Audio Team Fortissimo Turntable variant 27

E.A.T. - European Audio Team Fortissimo Turntable variant 28

E.A.T. - European Audio Team Fortissimo Turntable variant 29

E.A.T. - European Audio Team Fortissimo Turntable variant 30

E.A.T. - European Audio Team Fortissimo Turntable variant 31

E.A.T. - European Audio Team Fortissimo Turntable variant 32

E.A.T. - European Audio Team Fortissimo Turntable variant 33

E.A.T. - European Audio Team Fortissimo Turntable variant 34

E.A.T. - European Audio Team Fortissimo Turntable variant 35

E.A.T. - European Audio Team Fortissimo Turntable variant 36

E.A.T. - European Audio Team Fortissimo Turntable

View at E.A.T. - European Audio Team

Massive Turntable with Subchassis

Separate Sub Chassis and a mass loaded turntable
Platter has 12 brass inserts and one top brass insert under vinyl top plate for increased speed stability and weight of the platter
Chrome bearing block
Bearing spindle with new coating for lowest friction possible
Optional new F-Note tonearm
Fortissimo Base optionally available: isolates the turntable perfectly from any resonances from the ground
Also available as Fortissimo S, in a smaller turntable configuration

The Platter

The platter has been upgraded with 12 brass inserts and one top brass insert under vinyl top plate add additional weight and further stabilize the platter for even better speed stability. It consists of two parts. The first part uses a soft alloy, the second part, a harder one. This reduces energy flow. The first part also incorporates the neodymium magnets. The platter weighs more than 22 kg. The diameter of the platter is 400 mm (not the usual 300 mm). This means that with the same weight you gain more moving mass on the platter. The platter also incorporates sorbothane damping to make it resonance free.

The Bearing

The bearing is not standard but inverted with an oversized polished shaft. The new platter with its huge mass creates more energy, which has to be absorbed better. Therefore we designed a new bearing block with a chrome alloy able to withstand more energy and damp the entire system more effectively. In addition the bearing spindle has a new "Movic" coating with the lowest friction coefficient possible (6 times less than previous spindle versions). This is the same coating that is used by NASA for bearings in satellites.

A ceramic ball is used on the top because it is very hard and inert. This, in combination with a Teflon plate as a bearing mirror, is also a good damping device. Teflon's accurate satin surface produces perfectly smooth movement without any rumble. The platter has a magnetic suspension using neodymium magnets. By increasing the distance from the bearing to the cartridge, the small neodymium magnets eliminate magnetic influence on the cartridge. Due to the magnets we can still move a large mass allowing the bearing to see virtually no pressure. This avoids rumble. (A mass loaded platter usually causes high levels of rumble.) The pressure of the bearing is adjustable. There are different philosophies about the bearing pressure. With the Forte turntable you can adjust it according your preferences and taste.

The Motor

(applies only to Fortissimo motor, not Fortissimo S motor!)
The motor is a stand-alone, decoupled AC unit. It uses a sophisticated electronic circuit to create 100% clean AC. It is very heavy motor with lot of mass to reduce all the existing vibrations. Motor energy is absorbed by using a sandwich system of metal and MDF. We decided to use a "dual motor design" to eliminate noise in the motor. By using two relatively weak, but silent running motors, we achieve perfect torque.

The Belt

Long belts usually have some amount of wobble. To avoid this we use a special silicon string. This movement is also absorbed by the bearing block and by the huge mass of the platter itself.

The F-Note Tonearm

(optionally available)
The F-Note Tonearm is a new E.A.T tonearm design that mixes a high mass tonearm with a low-friction bearing. Due to the high mass these tonearm usually have to use a bearing that is a little bit "slower". The F-Note goes a different way and innovates on a new level. The tonearm is very easy to set up and also a perfect match for the new Jo No. 8 cartridge.

The Fortissimo Base

(optionally available)
The optionally available Fortissimo Base has been purpose designed for the new Fortissimo turntable. It acts as a perfect subchassis, isolating the turntable in the best possible manner. This design improves on the magnetic feet found in previous turntables, and makes it more silent and less prone to outside interference. The feet have been redesigned and the base uses 6 new magnetic feet, to accomodate the size and weight of the Fortissimo turntable.
