Tangential 90 Degree Pivot Reference Tonearm

If the Reed 3P has taken the traditional radial tonearm design to the highest level of evolution, how can you then improve the sound? The logical progression is to create a well-designed tangential-pivot tonearm!

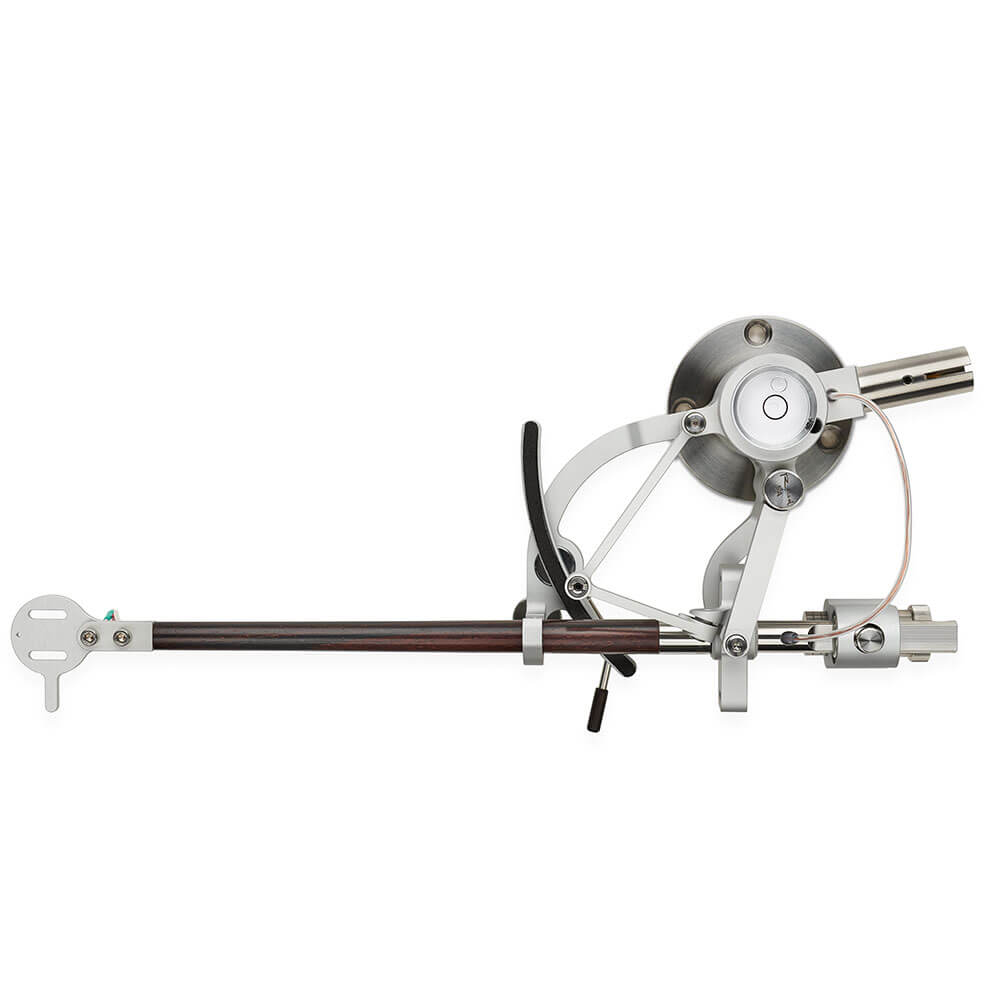

The Reed 5A is the fourth offering in the Reed tonearm range and elevates sonic performance to a rarefied level only possible with tangential tonearm designs which allow the cartridge to track true – at 90° to the grooves. The Reed 5A is based on the Double Birch/Thales geometry which is a very sound approach, however the challenge is that for this tonearm to reach the performance potential that this design is capable of, the design needs to be perfect and the engineering needs to be flawless. This is where Reed’s manufacturing capabilities come to the fore. Below is a diagram showing the Double Birch/Thales geometry. A tonearm that follows this geometry is optimised for minimal tracking error.

To better understand the Double Birch/Thales geometry, please note:

• P1, O1, P3 are Thales’ semicircles
• P1-A1-P3, P1-A2-P3, P1-A3-P3 angles are 90⁰ each
• A1,1B1 = A2,1B2= A3,1B3 segments represent tonearm length
• 1B is the vertical axis of the tonearm
• 1P2 is the center of the circle, which is drawn through three points -1B1,1B2,1B3 – axis of rotation of the back link component
• 2P2 – center of the circle, which is drawn through three points -2B1,2B2,2B3 – axis of rotation of the front link component
• 1B1,2B1 = 1B2,2B2 = 1B3,2B3 – tonearm lever

In the Reed 5A, the armtube suspension system is similar to the one used in Reed 3P tonearm. The tonearm’s back link uses low-noise ceramic rolling bearings. The lever uses a low-noise ceramic rolling bearing and rests on the sapphire / molybdenum carbide thrust bearing. The sapphire / molybdenum carbide thrust bearings are also used for the tonearm’s front link, vertical and horizontal axes. The tonearm has VTA and azimuth setup and can be configured with a Reed or SME (universal headshell connector) headshells.

To make sure the tonearm setup is precisely horizontal, the tonearm has an integrated level and horizontal plane adjuster. In comparison to regular pivot tonearms, the Reed 5A does not require antiskating and has much less absolute tracking error.

For example,

• Regular pivot tonearms measure approx. 1.2 – 2.5 deg of absolute tracking error (Fig.3).
• The Reed 5A has a max. tracking error of ±4 Minute of Angle (MOA) (Fig.2).

Figure 2

Figure 3

Perhaps the greatest feature is that compared to other tangential tonearms, the Reed 5A does not require any additional devices to work (e.g. compressors, electronic controllers) and hence avoids the challenges of introducing those devices. It is also very compact and can be easily mounted on a wide range of turntables.

Like a well-played symphony from one of the masters, the Reed 5A has that rare genius quality, that unmistakable elegant simplicity that belies the sheer talent & know-how that went into its composition. The minimal tracking error performance translates to a clarity and effortlessness to the sound, as if the music flows with no friction or resistance, unleashed to dance around the room with unbridled freedom. Even the sight of a 5A mounted on a great turntable elevates levels of excitement, passion and anticipation. Then, the instant the stylus is gently placed in the groove and the music begins to flow, there’s an acknowledgement of that genius. The tonal beauty, pace, rhythm and timing… the realism and emotional intent that radiates in all directions is hypnotic and reminds you why you got into this hobby in the first place.

Videos

Reed 5A tangential tonearm


How does Reed 5A tonearm work?


Reed Muse 1C Turntable – Reed 5T Tangential Tracking Tonearm – Top Plattenspieler Gramofono


Finish Options

The pictures below are for the purposes of showing the finish options and the tonearm model may differ from the model described above.
