Connected Fidelity Pucks/accessories

FLOAT - PUCKS AND ACCESSORIES.

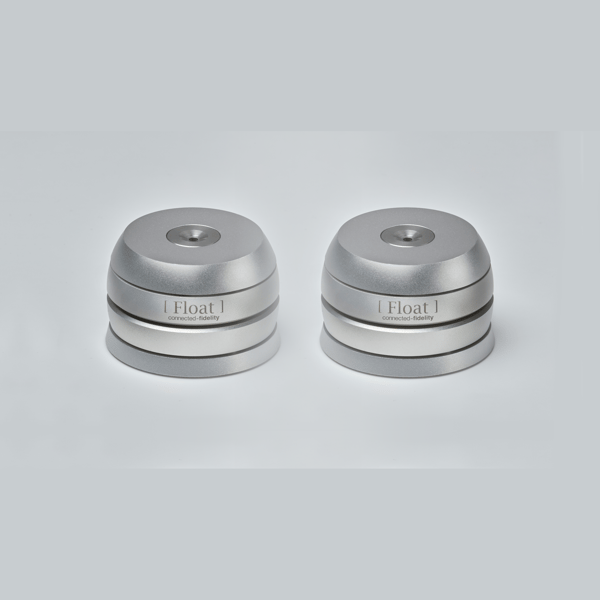

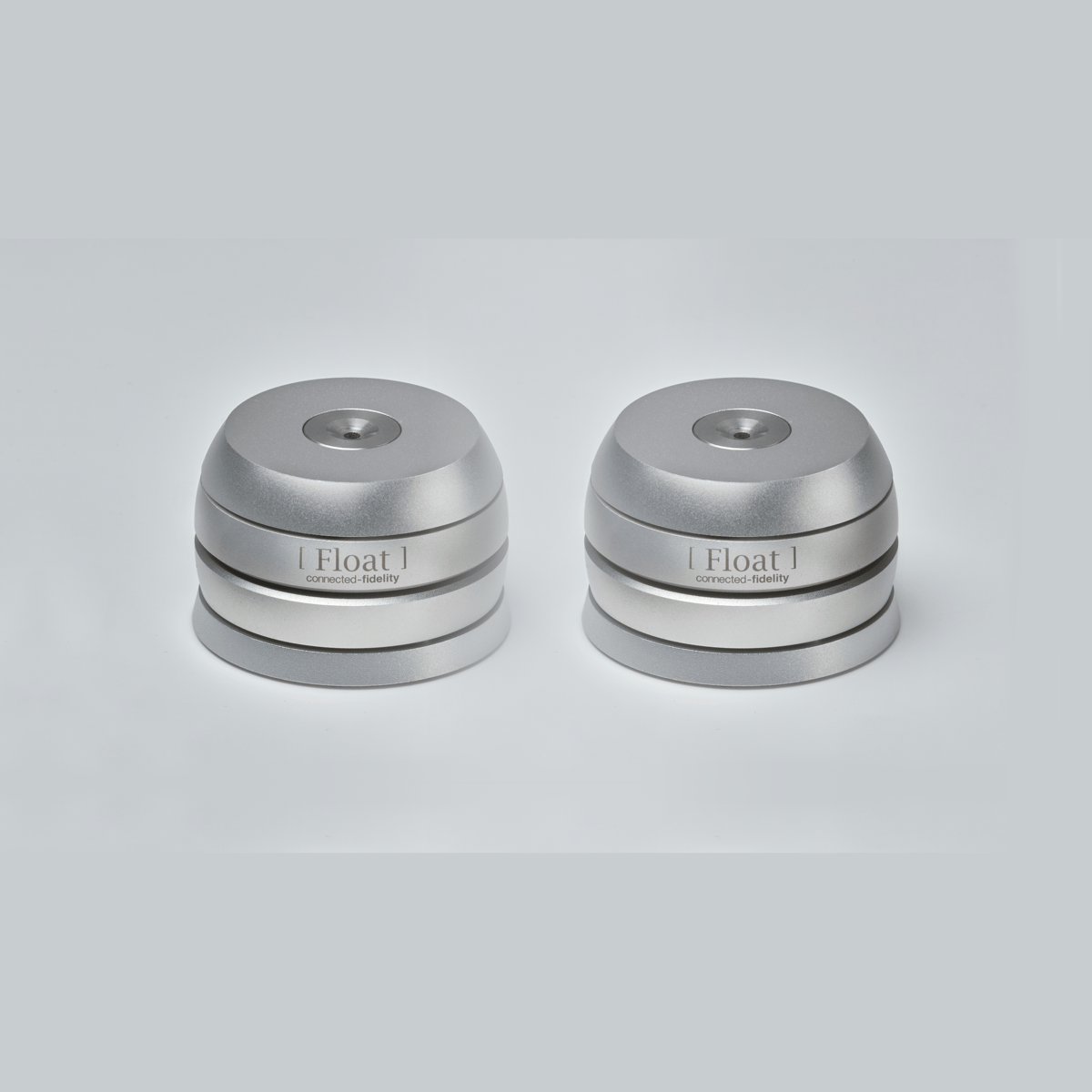

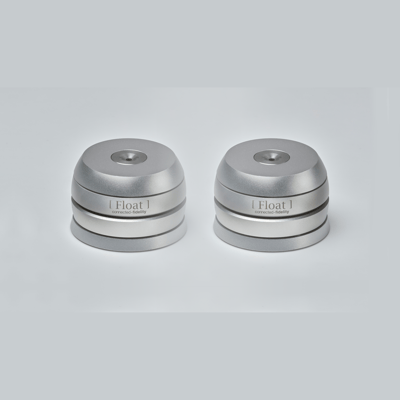

Float pucks are sold boxed in sets of three or four, and each puck comes complete with a coaster for use below or above the puck, depending on your application. Further sets of three or four coasters can be bought if you wish to use both above and below. The pucks and all accessories come in two colours, Silver or Black.

Float pucks are for use under components weighing less than 30 Kilos using 4 pucks, or 22 Kilos using 3 pucks; so suggested uses include amplifiers, CD and other electro-mechanical devices, turntables, smaller stand mounted loudspeakers and stands.

If required, there are three accessory connecting sets that sit on the puck feet, offering flexibility in use.

Components with M6 threaded studs and M8 threaded studs for use where loudspeakers or loudspeaker stands have threaded sockets.

Spike shoe components for use with products that come with integral spike feet.

Float Specifications

• Outside diameter: 49.0mm Dia.




• Height excluding coaster plate: 23.0mm




• Height inc. coaster: 25.5mm




• Height with accessory connector and coaster: 37.0mm




• Height adjustment on Loudspeaker accessory: +8.0mm




• Boxed weight. Set of 3: 0.55Kg




• Boxed weight. Set of 4: 0.66Kg




• Boxed weight. Accessory connecting set of 4: 0.46Kg




• Colourways: Silver & Black.




Ordering:

Float puck sets:

CF-FLP-4-S  Four Silver pucks + four Silver coasters.
CF-FLP-4-B  Four Black pucks + four Black coasters.

CF-FLP-3-S  Three Silver pucks + three Silver coasters.
CF-FLP-3-B  ThreeBlack pucks + three Black coasters.

Coaster sets for Float:

CF-FLC-4-S Four Silver coasters.
CF-FLC-4-B FourBlack coasters.

CF-FLC-3-S Three Silver coasters.
CF-FLC-3-B Three Black coasters.

Connecting sets for Float:

CF-FSMS-4-S Four Silver Spike shoe connectors.
CF-FSM6-4-S Four Silver M6 threaded stud connectors.
CF-FSM8-4-S Four Silver M8 threaded stud connectors.

CF-FSMS-4-B Four Black Spike shoe connectors.
CF-FSM6-4-B Four Black M6 threaded stud connectors.
CF-FSM8-4-B Four Black M8 threaded stud connectors.

CF-FSMS-3-S Three Silver Spike shoe connectors.
CF-FSM6-3-S Three Silver M6 threaded stud connectors.
CF-FSM8-3-S Three Silver M8 threaded stud connectors.

CF-FSMS-3-B Three Black Spike shoe connectors.
CF-FSM6-3-B Three Black M6 threaded stud connectors.
CF-FSM8-3-B ThreeBlack M8 threaded stud connectors.
