Connected Fidelity Float 30

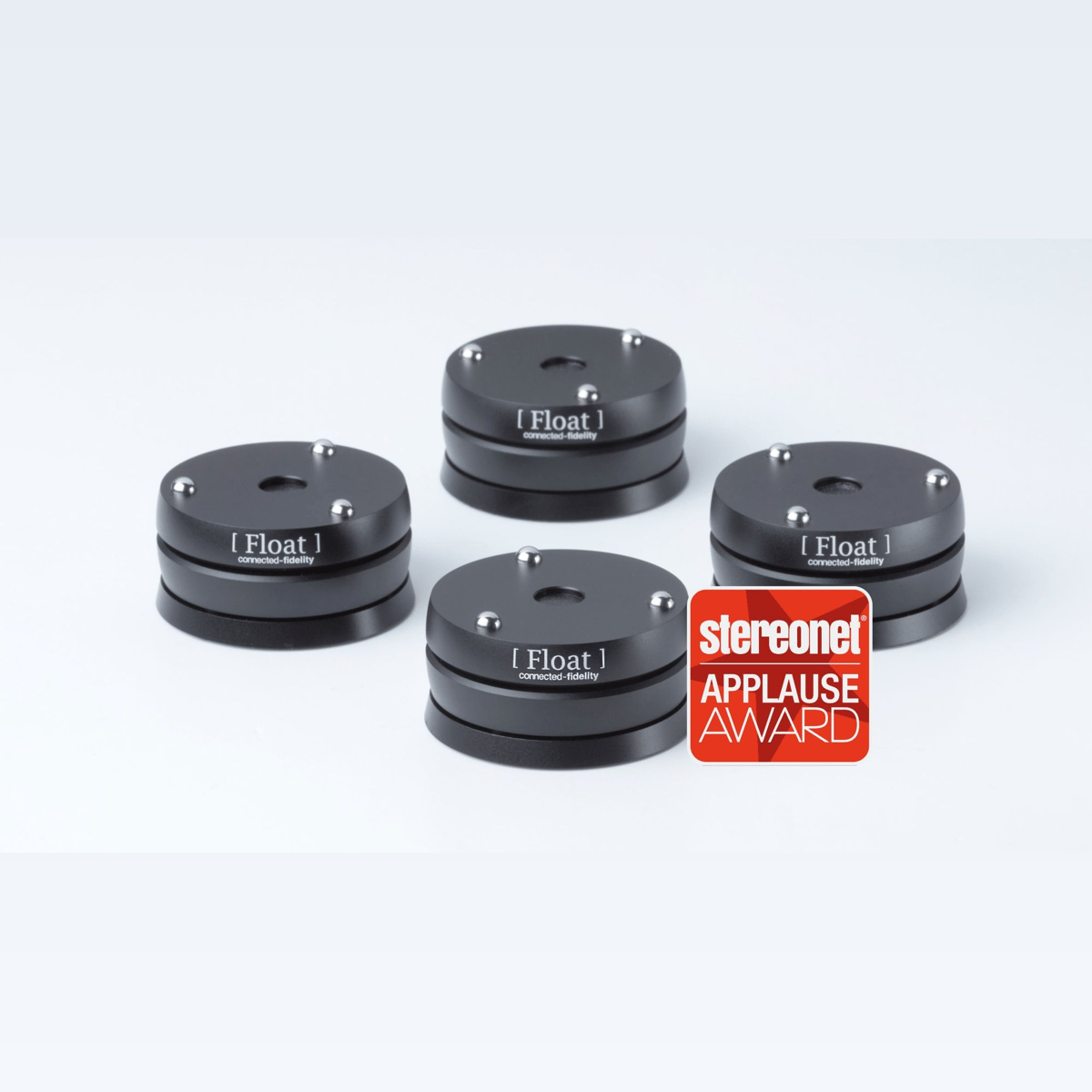

FLOAT 30 - PUCKS AND ACCESSORIES.

Float 30 pucks are for use under heavier components weighing up to 120 Kilos using 4 pucks, or 90 Kilos using 3 pucks; suggested uses include heavy amplifiers and other large electro-mechanical devices, larger turntables, floor mounted loudspeakers, sub-base units, and racks.

Float 30 pucks are sold boxed in sets of three or four, and each puck comes with a coaster for use below or above the puck depending on the application. Further sets of three or four coasters can be bought if you wish to use them both above and below. The pucks and accessories come in two colourways, Silver or Black.

When required, there are three accessory connecting sets that sit on the puck feet, offering flexibility in use.

M6 threaded studs and M8 threaded studs: For use where products are supplied with integral threaded sockets (other threads are available to order).

Spike shoes: For use with products fitted with integral spikes.

Float 30 Specifications

• Outside diameter: 49.0mm Dia.




• Height excluding coaster plate: 23.5mm




• Height inc. coaster: 26.0mm




• Height with accessory component and coaster: 37.5mm




• Height adjustment on threaded accessory: +8.0mm




• Boxed weight. Set of 3: 0.58Kg




• Boxed weight. Set of 4: 0.69Kg




• Boxed weight. Accessory connecting set of 4: 0.46Kg




• Colourways: Silver & Black.




Ordering:

Float 30 puck sets:

CF-FLP30-4-S          Four Silver pucks + four Silver coasters.
CF-FLP30-4-B          Four Black pucks + four Black coasters.

CF-FLP30-3-S          Three Silver pucks + three Silver coasters.
CF-FLP30-3-B          ThreeBlack pucks + three Black coasters.

Coaster sets for Float 30:

CF-FLC-4-S Four Silver coasters.
CF-FLC-4-B FourBlack coasters.

CF-FLC-3-S Three Silver coasters.CF-FLC-3-B Three Black coasters.

Connecting sets for Float 30:

CF-FSMS-4-S Four Silver Spike shoe connectors.
CF-FSM6-4-S Four Silver M6 threaded stud connectors.
CF-FSM8-4-S Four Silver M8 threaded stud connectors.

CF-FSMS-4-B Four Black Spike shoe connectors.
CF-FSM6-4-B Four Black M6 threaded stud connectors.
CF-FSM8-4-B Four Black M8 threaded stud connectors.

CF-FSMS-3-S Three Silver Spike shoe connectors.
CF-FSM6-3-S Three Silver M6 threaded stud connectors.\
CF-FSM8-3-S Three Silver M8 threaded stud connectors.

CF-FSMS-3-B Three Black Spike shoe connectors.
CF-FSM6-3-B Three Black M6 threaded stud connectors.
CF-FSM8-3-B ThreeBlack M8 threaded stud connectors.
