Cayin Pearl 30i

Separate and Independent Power  Supply System

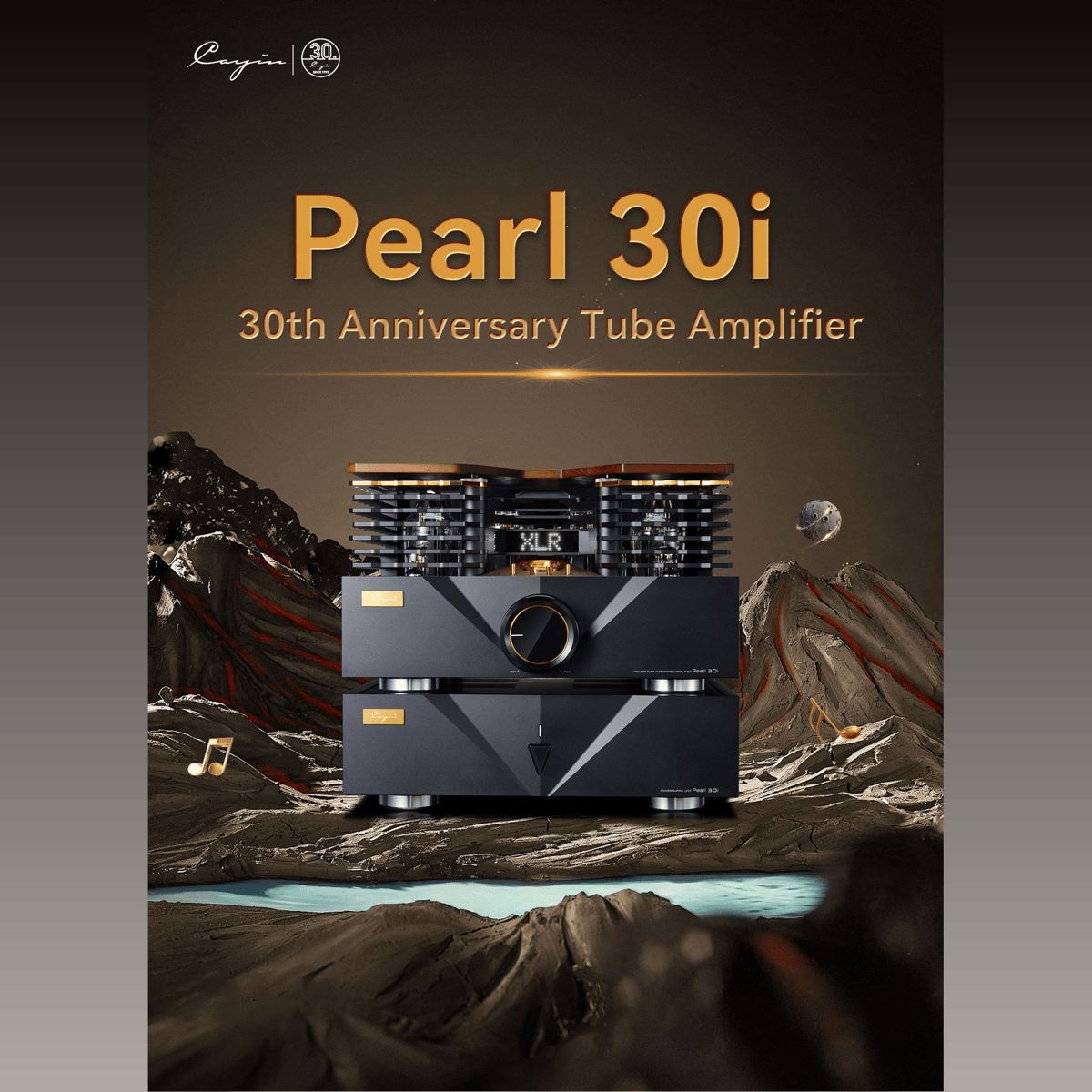

Pearl 30i the 30th Anniversary Tube Amplifier is an Integrated Amplifier in two

cabinets with separate Amplifier Unit and Power Supply Unit. In the Power

Supply unit it is combined by four pieces of Power Transformers, which are

two pieces for the Left Channel and two pieces for Rig ht channel. Each

channel has its own High Voltage Power Supply and Low Voltage Power

Supply.

Customized Power Cables between the

Amplifier Unit and Power Supply Unit.

Left and Right channel take four cables

made out of 6N Copper Silver Plated

Wire

TUNG-SOL KT170 Pearl 30i is designed on basis of Tungsol KT170 Power Tubes. It outputs 230

watts Power in Ultralinear Mode or 145 watts power in Triode Mode per

channel. Designed in Class AB Push-Pull Pearl 30i takes four pieces of powerful

KT170 tube per channel.

Dynamic Auto Bias Pearl 30i takes Auto-Bias Design for the KT170 Power Tubes. With auto bias

design if you changed the Power Tubes you do not need to adjust the bias

manually. Bias can be adjusted automatically and precisely so that all tubes

can be matched which can raise the reliability of the Power Tubes and provide

an extended lifetime of the Power Tubes.

Dual Operation Mode:  Triode/Ultralinear
Pearl 30i offers two operation modes: Triode

and Ultralinear. Change the output mode you

will get a different sound signature instantly.

Dual Timbres： DYNAMIC丨SOFT
choices of two timbres: Dynamic and Soft,

which has been realized by adjusting the

operation current of the KT170 Power Tubes.

High-Precision JRC MUSES 72320V electronic

volume controller to provide low noise, low

distortion and 106-step linear volume control.

With programmed MCU Pearl 30i is designed with a

variety of protection circuits and power-on timing

so that the amplifier works in the best condition:

60s Time Delay during Switch on, Soft Start Circuit

and BMI Function.

Inputs and Outputs Four pairs of line inputs, one pair of Balance Input, one pair of RCA Pre-In and

one pair of XLR Pre-In are located on the rear panel of the amplifier. In our

Pearl 30i Integrated Amplifier not only the Single Ended RCA inputs provided

but also the XLR Balance Input offering you multiple choices to connect with

various of Audio Systems.
