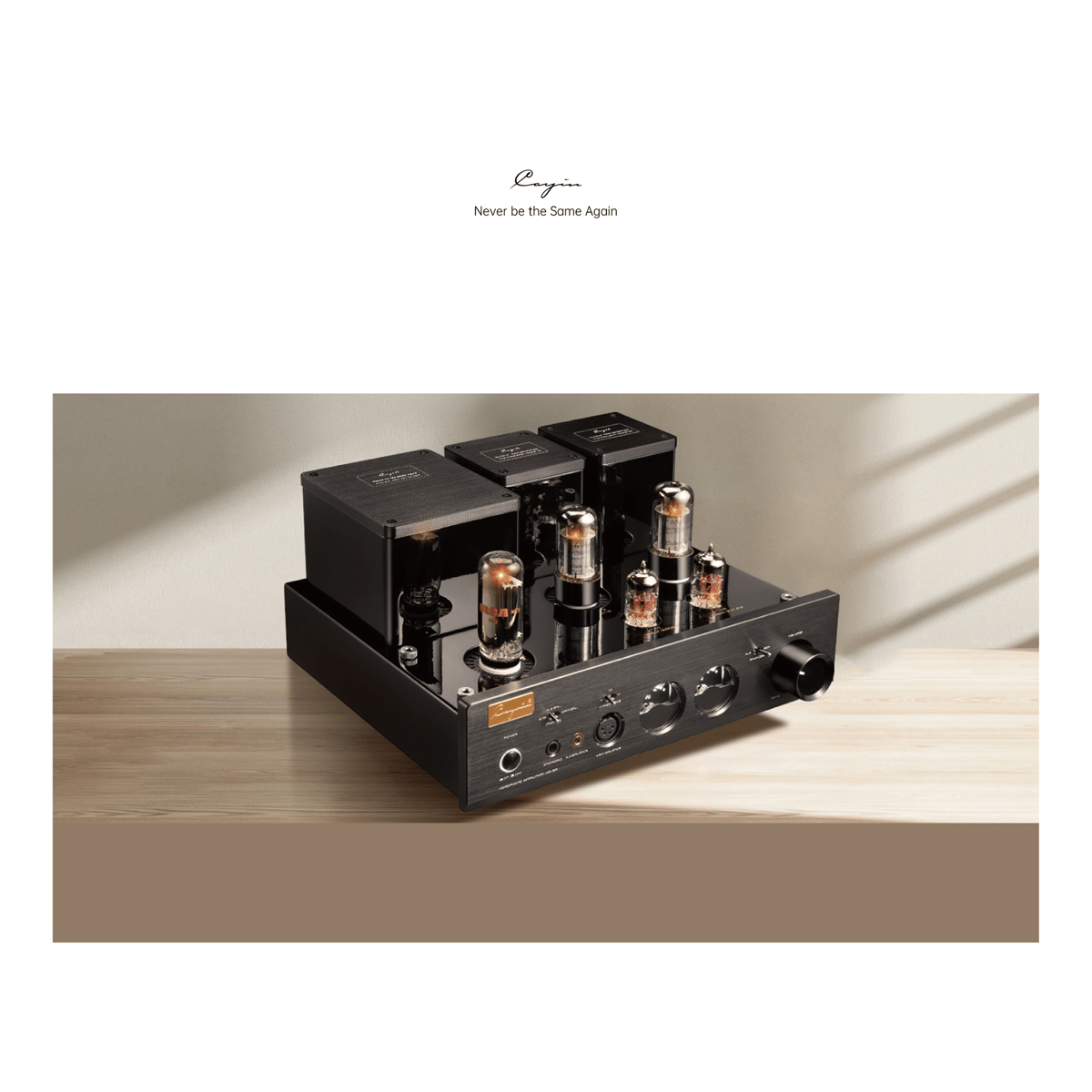

HA-3A

Transformer Coupled, Balanced Driven Vacuum Tube Headphone Amplifier

4-Pin XLR, 4.4mm, and 6.35mm Headphone Output ~A4 Footprint, Desktop Friendly Design Low, Mid, High Impedance Matched Headphone Outputs

HA-3A

When exquisite design accomplished

by first class engineering,  when aesthetic backed up

by rigorous production.

The HA-3A vacuum tube headphone

amplifier let you enjoy your beloved

music through your choice of headphones

or earphones in a dedicated, engaging,

and indulging retreat.    HA-3A might look compact and simple,

but Cayin has devoted our renowned

engineering, decades of audio

equipment manufacturing and carefully

selected performance-based components

to make this happen.

Clean Power with Minumum Interference

HA-3A uses an RCA 25AX4GT as rectifier tube, one of  the best versions of 25AX4GT available in tube market.

While converting imcoming power source to DC

current the 25AX4GT rectifier tube minimises

interference and provides clean power to

the amplification circuit.

Carefully Selected and Hand-matched Vacuum Tubes

Driver Tubes Dual 12AU7/ECC82(Matched Pair) from JJ*

Output Tubes Dual 6V6GT（Matched Pair）from Electro Harmonix*

Single-ended Vacuum Tube Circuit

The HA-3A vacuum tube amplification is designed as

a 2-stage single-ended circuit.

The 12AU7/ECC82 driver tubes will amplify the

voltage level of the incoming audio signal so that

the 6V6 output tubes will perform its amplification

at a very linear condition.

Single-ended circuit design displaces the beautiful

tone of your vacuum tubes without any cancellation.

Single-ended uses matched pair instead of matched  quad-set tubes, you can enjoy greater flexibility when  you perform tube rolling.

Transformer-coupled, Balanced Driven

The 6V6 output drives a pair of proprietary output  transformers that supports single-ended and balanced

headphone outputs.

The secondary winding of the output transformer  provide an alternative phase and compose a balanced

output, enables balanced driver from a single-ended

vacuum tube amplification circuit.

Both single-ended and balanced headphones are  “original” outputs from the transformers.

Impedance Matched  Phone Output

Our engineers have optimized HA-3A’s output to handle the headphone loading according to three headphone impedance settings:  Low: 8Ω ~ 64Ω Medium: 65Ω ~ 250Ω  High: 251Ω ~ 600Ω

Carefully Optimized  Headphone Outputs

6.35mm Single-ended 4.4mm Balanced 4-Pin XLR Balanced

The 4-Pin XLR output is a full-fetched output but  the 4.4mm output is optimized for wider range of  headphones,including high sensitivity portable  headphones.

The Hidden Details

The chassis and transformer pots are treated by our proprietary 14 rounds of crafting process composed of scratch, spray, sanding and baking.

The high gloss final finishing endows a refined and delicate texture as well as protecting the amplifier  during years of long service.

Dual Inputs

Balanced (XLR) and Single-ended (RCA) to cover a variety of inputs.

Balanced input will go through a pair of input  transformers, the + and - half cycle will merge to  become a single-ended signal.

Point-to-Point Wiring with Craftmanship

Time consuming, shortest signal path, better

attention to detail, the entire circuitry is

handwired by skillful craftmen.

Implement circuit design with high-level of

transparency and refinement, improves

overal efficiency and conductivity.

In-house Designed Premium Power Transformers

Cayin always design, wind and use high inductance,  high efficiency power transformers in our products.

Reinforcing shielding design minimizes the interference  and noise while ensure HA-3A to work in the best  condition.

High Quality Volume Control

High performance 50KA*2 Dual Unit smooth  potentiometer from ALPS offers durable,  high-precision volume control with excellent  operational fee.

Anti-inference Design

Special shielding and anti-shock design removes microphonic effectively.

Three XL Aluminum Foot Pads

A set of three 39x18mm XL shock-absorbing  aluminum foot pads to provide firm and stable  amplifier placement at any hard flat surface.

2-rear & 1-front self-levelled placement to handle  the extra weight on the back of the amplifier  due to the power and output transformers.
