Cayin CS-100A

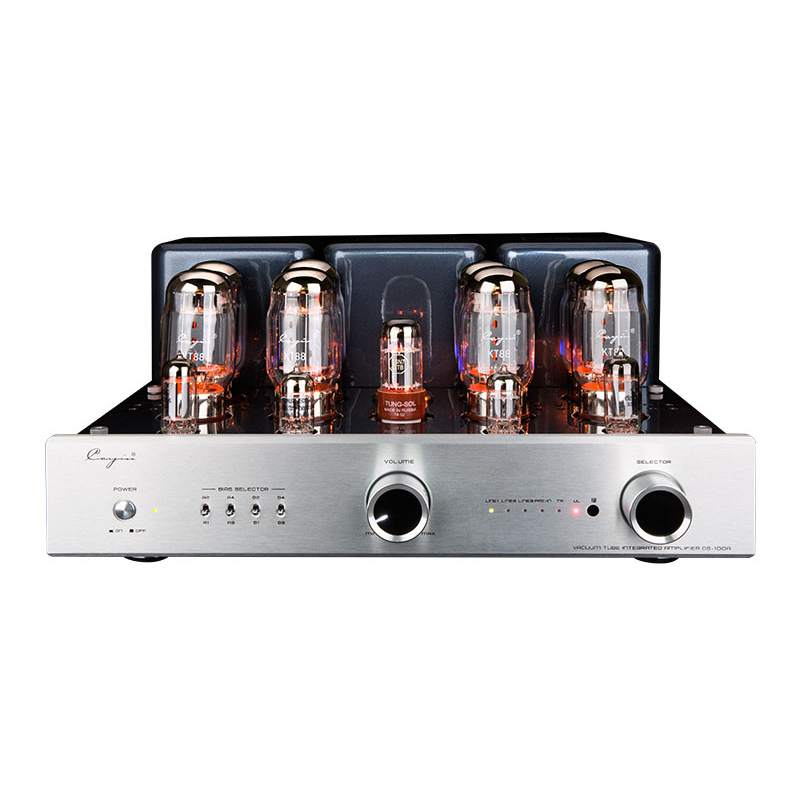

The new dual-mode Cayin Audio CS-100A tube amplifier

is rated at 80 watts per channel in Class AB Ultra-linear mode

and 50-watts per channel in triode mode. With an on-board bias meter,

the integrated amplifier can run either KT-88 or EL family tubes and uses silver internal wiring.

The CS-100A incorporates a 6SN7 tube for voltage amplification,

12AU7EH for phase inversion/voltage amplification

and 12BH7EH for voltage amplification and driver stages, with KT-88 or EL-34 output valves.

Soft-Start circuitry protects the amplifier and extends the life of internal components and tubes.

A high grade Alps volume control, audio-grade capacitors, carbon film resistors, toroidal transformer for power supply

and wide-bandwidth EI output transformers are all standard.
