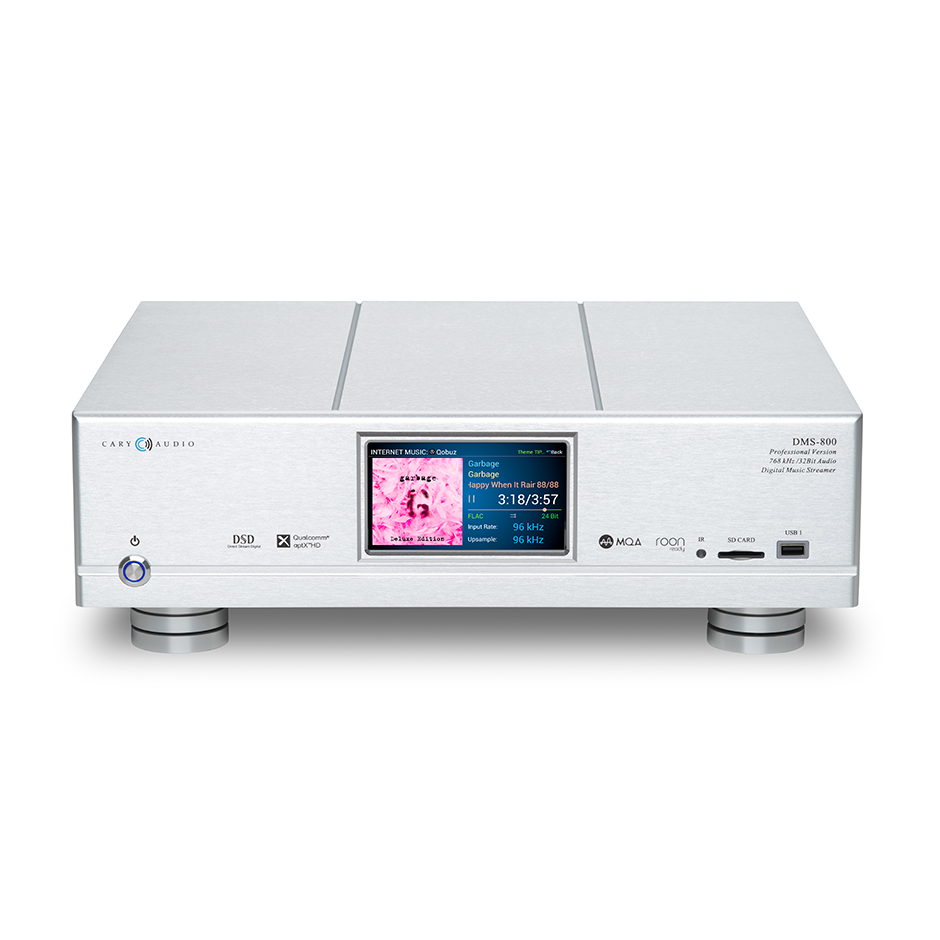

Cary Audio DMS-800 Professional Version (PV) Network Audio Player
ABOUT THE DMS-800PV NETWORK AUDIO PLAYER
Inside the DMS-800PV, you’ll find a dual mono design of the DMS-700 on steroids, boasting doubled DACs, digital boards, and analog circuit boards for entirely separate, independent Right and Left channels. Enhanced with a Crystek Oscillator Clock, dual DSP driver stages, and 14 groups of independent regulated power supplies, the DMS-800PV pushes the boundaries of audio excellence. With a larger 5″ high-resolution display and a distinctive stance, it captivates both visually and aurally, creating a vivid, lush musical landscape that immerses you in every note and nuance. These limited-edition masterpieces won’t last long—once they’re gone, they’re gone. Experience the pinnacle of audio perfection with the DMS-800PV and elevate your listening experience to unprecedented heights.
Indulge in an unrivaled audio experience with the DMS-800PV, featuring four original AKM AK4499EQ DACs and an array of premium features. Stream your favorite music with Spotify Connect, TIDAL Connect, and Qobuz Connect, while enjoying versatile playback options with vTuner, Airplay, and aptX Bluetooth support. With Roon Ready certification, DLNA compatibility, and USB-HDD/SD Card playback, the DMS-800PV offers a comprehensive solution for all your audio needs. Revel in pristine sound quality with MQA support, Ethernet or WiFi connectivity, PCM & DSD selectable upsampling, selectable PCM to DSD conversion, and more. Elevate your audio experience to new heights with the DMS-800PV and immerse yourself in a world of unparalleled sonic excellence.
MQA (Master Quality Authenticated)
MQA is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download.
The MQA logo is a trademark of MQA Limited. © MQA Limited 2024
MQA (Master Quality Authenticated)
The DMS-800PV includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording. The DMS-800PV LED glows green or blue to indicate that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. It glows blue to indicate it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner.
Roon is the most engaging, enjoyable way to browse your music.
Being RoonReady means that Cary Audio network players transparently discover and connect to Roon, with no network configuration, with bitperfect delivery of audio to your dac.
Together, Roon and Cary Audio deliver the power, flexibility, and performance benefits of networked audio, with the easiest setup and highest reliability available.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Master Clock Jitter
- Below measurable levels
- Digital Sampling Rates (Fs)
- 44.1 kHz to 768 kHz, DSD64 to DSD512
- Digital Filter
- 32-Bit 8x Oversampling Digital Filter
- Digital/Analog Converters
- 2 – 4 channel AK4499EQ for working on true balanced output
- BLUETOOTH
- CSR Bluetooth v 4.0 with aptX® HD for 24 Bit / 48 kHz high definition audio decoder
- Analog Filter
- 3rd Order Bessel
- Analog Outputs
- Balanced XLR, Single – Ended RCA
- Digital Outputs
- Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 24 bit, DSD64, DSD128, DSD256 Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 bit to 24 bit, DSD64
- Digital Inputs
- USB x 3, SD Card x 1 BLUETOOTH x1 AES/EBU x1, Coaxial x2, Toslink x1
- Digital Input Sample Rate
- USB/HDD operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 32 bit, DSD 64, 128, 256 and 512. BLUETOOTH Sample Frequency (Fs) 48 kHz, 24 bit. AES/EBU, Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16bit to 24 bit, DSD64 to DSD256 Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16bit to 24 bit, DSD64
- Control
- Trigger input 12VDC x1 IR control x1
- Communication
- Ethernet RJ45 full remote configuration interface Wi-Fi 802.11 b/g/n/ac support MU-MIMO
- Power Input
- Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
- AC Power Requirements
- 55 Watts
- Finish
- Custom aluminum chassis and faceplate available in either Silver or Black anodized finish
- Weight
- 39.50 lbs
- Dimensions
- 4.25” H x 17.25” W x 16.25” D
- Frequency Range
- 2 Hz – 22 kHz (44.1 kHz)
- Amplitude Linearity
- 0.1 dB (20 Hz – 20 kHz)
- Phase Linearity
- 3 degrees (20 Hz – 20 kHz)
- Dynamic Range
- 129 dB (1 kHz) XLR OUT
- Signal-to-Noise Ratio
- 127 dB (1 kHz)
- Channel Separation
- 107 dB (1 kHz)
- Total Harmonic Distortion
- 0.0001% (1 kHz)
- Audio Output Level
- 2.0V RMS (220 Ω output impedance) for Volume at 0.0dB 3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
- Balanced XLR Output
- +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB +/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
- Playback Format Supply
- .dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf
- Frequency Range
- 2 Hz – 100 kHz +/- 3.0 dB
- Signal System
- 16, 20, 24, & 32 bit PCM and 1 bit DSD
- Sampling Frequency
- 44.1 kHz to 768 kHz PCM and 2.822MHz – 22.5792 MHz DSD
- Dynamic Range
- 129 dB @1kHz XLR OUT
- DSD System Clock
- Frequency 22.5792 MHz
- Signal-to-Noise Ratio
- 127 dB
- Audio Output Level
- 2.0V RMS (220 Ω output impedance) for Volume at 0.0dB 3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
- Balanced XLR Output
- +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB +/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
- Frequency Range
- 2 Hz – 100 kHz +/- 3.0 dB
- Signal System
- 16, 20, and 24 bit
- Sampling Frequency
- 44.1 kHz to 768 kHz PCM, DSD64, DSD128, DSD256
- Dynamic Range
- 129 dB @1kHz XLR OUT
- System Clock
- Frequency 22.5792 MHz
- Signal-to-Noise Ratio
- 127 dB
- Audio Output Level
- 2.0V RMS (220 Ω output impedance) for Volume at 0.0dB 3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
- Balanced XLR Output
- +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB +/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
Manufacturer's Description — Cary Audio
ABOUT THE DMS-800PV NETWORK AUDIO PLAYER
Inside the DMS-800PV, you’ll find a dual mono design of the DMS-700 on steroids, boasting doubled DACs, digital boards, and analog circuit boards for entirely separate, independent Right and Left channels. Enhanced with a Crystek Oscillator Clock, dual DSP driver stages, and 14 groups of independent regulated power supplies, the DMS-800PV pushes the boundaries of audio excellence. With a larger 5″ high-resolution display and a distinctive stance, it captivates both visually and aurally, creating a vivid, lush musical landscape that immerses you in every note and nuance. These limited-edition masterpieces won’t last long—once they’re gone, they’re gone. Experience the pinnacle of audio perfection with the DMS-800PV and elevate your listening experience to unprecedented heights.
Indulge in an unrivaled audio experience with the DMS-800PV, featuring four original AKM AK4499EQ DACs and an array of premium features. Stream your favorite music with Spotify Connect, TIDAL Connect, and Qobuz Connect, while enjoying versatile playback options with vTuner, Airplay, and aptX Bluetooth support. With Roon Ready certification, DLNA compatibility, and USB-HDD/SD Card playback, the DMS-800PV offers a comprehensive solution for all your audio needs. Revel in pristine sound quality with MQA support, Ethernet or WiFi connectivity, PCM & DSD selectable upsampling, selectable PCM to DSD conversion, and more. Elevate your audio experience to new heights with the DMS-800PV and immerse yourself in a world of unparalleled sonic excellence.
MQA (Master Quality Authenticated)
MQA is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download.
The MQA logo is a trademark of MQA Limited. © MQA Limited 2024
MQA (Master Quality Authenticated)
The DMS-800PV includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording. The DMS-800PV LED glows green or blue to indicate that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. It glows blue to indicate it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner.
Roon is the most engaging, enjoyable way to browse your music.
Being RoonReady means that Cary Audio network players transparently discover and connect to Roon, with no network configuration, with bitperfect delivery of audio to your dac.
Together, Roon and Cary Audio deliver the power, flexibility, and performance benefits of networked audio, with the easiest setup and highest reliability available.
