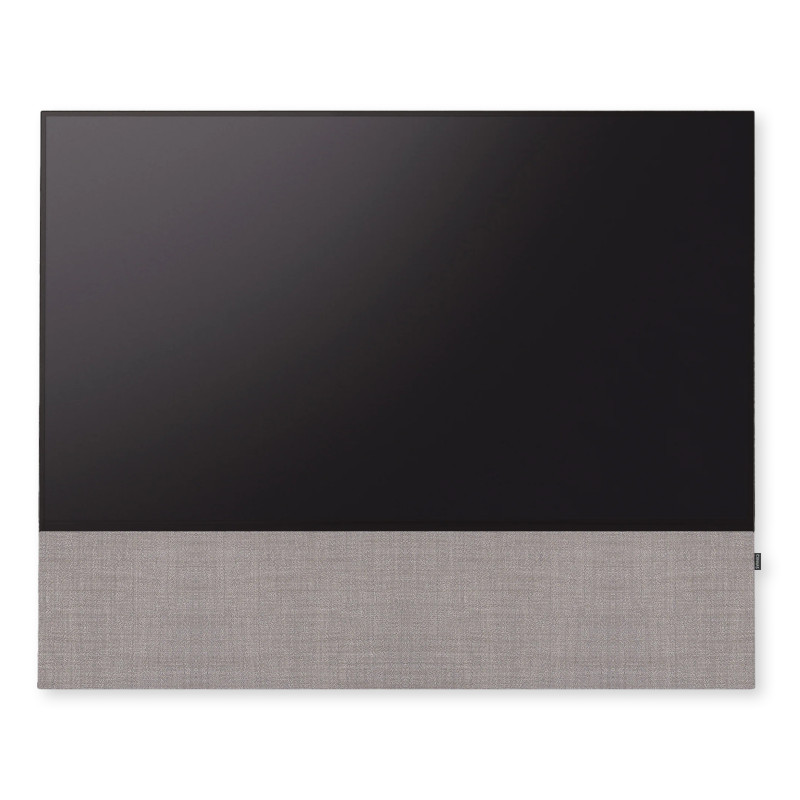

Canvas CANVAS 85

Specifications

Delivery and returns

CANVAS offers free shipping on all orders over 2000 euros, with all taxes and import costs included. If you wish to return a product, you can learn more about our return policy here

3 year warranty

Even after our extended 3-year warranty, CANVAS with its extraordinary service-friendly construction will be easily supported, just as CANVAS guarantees not only future upgrades of software but also of hardware

Weight

Weight (2 packages): CANVAS: 26.5 kg / 58.4 lbs (without packaging) | 33 kg / 72.8 lbs (with packaging)\nWood front 85 + bracket: 12.2 kg / 26.9 lbs (without packaging) | 26.8 kg / 59.1 lbs (with packaging)\nFabric front 85 + bracket: 11.2 kg / 24.7 lbs (without packaging) | 22.8 kg / 50.3 lbs (with packaging)

Dimensions

Wall-mounted, including wall bracket and front (W x H x D): 189.9 x 36.9 x 12.6 cm / 74.8 x 14.5 x 5.0 in\nFloor-standing, including stand and front (W x H x D): 189.9 x 36.9 x 19.8 cm / 74.8 x 14.5 x 7.8 in\nCANVAS with TV (W x H): ~189.9 x ~145.2 cm / ~74.8 x ~57.2 in\nCANVAS unit (W x H x D): ~121,0 x ~33,0 x ~12,0cm (11,0cm without bracket) / ~47.6 x ~13.0 x ~4.7 in (4.3 in without bracket)

Voltage

AC 100-240V, 50-60 Hz

TV COMPATIBILITY

Universal TV mount, for all brands (Samsung, Sony, Panasonic, LG etc) in 55, 65, 75, 77, 83 and 85 sizes or choose CANVAS SOLO for all other TV sizes which can hang by itself under the TV

STAND / WALL MOUNT

Hybrid, works on both floor and wall

FRONT GRILLES

Interchangeable magnetically attached in 12 finish options, including Kvadrat fabrics and real wood, in 55, 65, 75, 77, 83 and 85 sizes

CABINET

Rock solid 24 liters, MDF with CANVAS BridgeBrace technology

BASS / MIDRANGES

2 x High End SB Acoustics paper cone, long excursion 6,5 die-cast aluminium chassis

TWEETERS

2 x High End SB Acoustics 29mm silk dome with CANVAS designed waveguide die-cast aluminium frontplate

PASSIVE RADIATORS

2 x High End SB Acoustics low-loss high precision, long excursion

CROSSOVERS

DSP tuned in a Klippel system for linear frequency response and perfect phase responce, custom high order

AMPLIFIERS

4 channel Class D HiFi amps with a total of 250 watts, but with greater sound pressure than traditional soundbars with 1000 watts\nMany customers have wondered why CANVAS HiFi plays deeper and more powerfully than traditional soundbars, which indicate they have a much higher power output amplifier\nA large number of factors comes into play here, but an essential factor is that CANVAS has a whopping 24 liters of effective acoustic volume, in combination with 2 x 6.5 bass/midrange drivers and 2 x 5x8 slave bass drivers, which gives 592 cm2 radiating surface area, which corresponds to a 12 bass driver

DACs

Burr-Brown 24 Bit / 192 kHz

FREQENCY RESPONSE

28 Hz - 24.000 Hz

SIGNAL TO NOISE RATIO

100 Hz > 104 dB\n1 KHz >103 dB\n10 KHz >105 dB

THD+N

100 Hz <0.04 %\n1 KHz <0.04 %\n10 KHz <0.05 %

DSP

Powerful Analog Devices 300 MIPS quad-core with BACCH 3D filter

ROOM CORRECTION

Through iOS app, uses iPhones built in microphone or optional Zen Mic

CONNECTIVITY

HDMI eARC, Toslink, Analog, Apple AirPlay 2 (multi-room), Google Cast (multi-room), Roon, Tidal, Spotify Connect, DLNA\nIn addition, automatically activated input via control unit that can be hidden in CANVAS for connection with existing control systems such as Sonos app, Bluetooth, B&O App, Bluesound, HEOS, Bose App, Samsung App or other control units

UPDATES

Software automatic OTA. Hardware electronics upgradable
