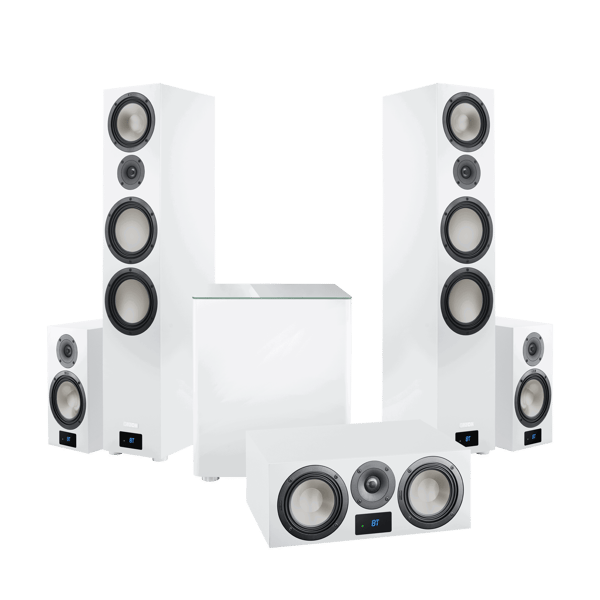

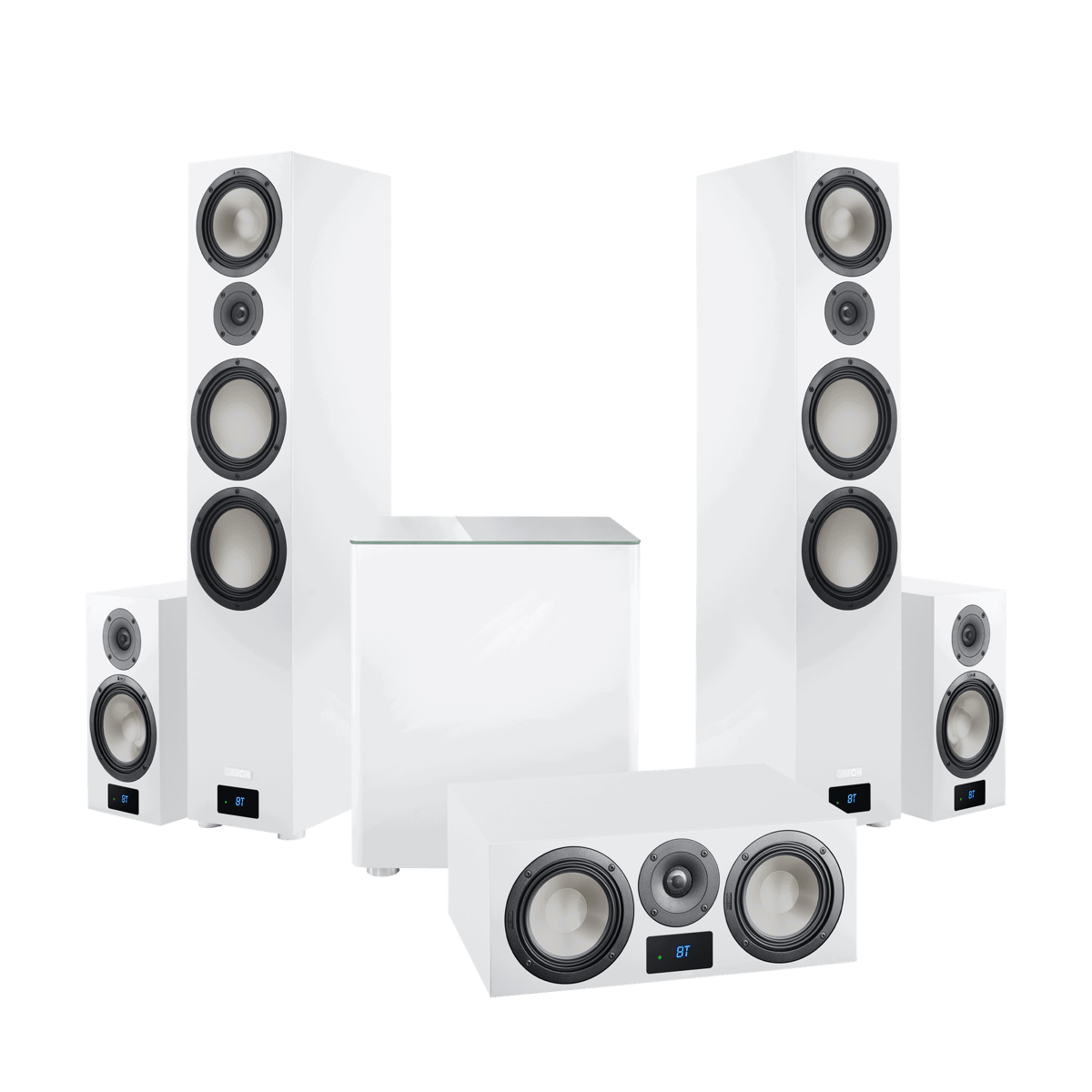

Canton Smart GLE 9 5.1 Set

Specifications

Acoustic principle

3-way bass reflex

Principle passive resonator

Bass reflex

Radiation direction resonator

Backfire

Tweeter quantity

1

Tweeter size

25 mm

Tweeter material

Aluminium-manganese

Midrange driver quantity

1

Midrange driver size

174 mm

Midrange driver material

Titanium (Wave surround)

Woofer quantity

2

Woofer size

192 mm

Woofer material

Titanium (Wave surround)

Transmission range

25...30.000 Hz

Crossover frequencies

3.000 Hz

System performance

350 watts

Standby power consumption ECO/NSB/AUT/MAN

0,35 / 1,2 /.../ 0,35 watts

Connections

1 x Analogue input (chinch) 1 x Bluetooth 3.0 Interface (apt-X Decoding for transmission in CD quality) 1 x Digital Input (coaxial) 1 x Digital Input (optical) 1 x USB-Input with XMOS technology 1 x XLR (Balanced)

Bluetooth Standard

3.0

Bluetooth profile

A2DP 1.2, AVRCP 1.3

Supported codecs

apt-X/ SBC

S/PDIF input (coaxial)

1 x Cinch 24 Bit/96kHz

S/PDIF input (optical)

1 x TOSLink 24 Bit/96kHz

USB input

USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS

Balanced (symmetrical)

1x Mono 2V effektiv XLR

S/PDIF OUT (coaxial)

1 x Cinch 24 Bit/96kHz

Subwoofer output

1x Cinch Mono 2V effektive/No

Wireless network for connecting additional Smart Loudspeakers (Cantonet)

5 GHz / 2 Audio-Kanäle 24Bit/96kHz / 3-8 Audio-Kanäle 16Bit/48kHz

Woofer Wave surround

yes

Midrange Wave Bead

yes

Double Cone

yes

Transmission Front Plate

yes

Unit feet

yes

Supported sound formats (S/PDIF)

Dolby Audio, DTS Digital Surround, PCM 24Bit 96kHz

Virtualizer

DTS TruSurround

Maximum possible output configuration

5.1

Volume adjustment per speaker

yes

Setting the listening level per speaker

yes

Voice function - for better voice reproduction in stereo & surround

yes

Equalizer - adaptation to spatial conditions

yes

Integrated bass management

yes

Dynamic Range Control - Setting the dynamic range

yes

Sleep timer - setting the switch-off time

yes

IR learning function - controllable with TV / system remote control

yes

Input-direct selection - ideal for system remote controls

yes

Configuration of the inputs - Input renaming

yes

LipSync function - for exact speech synchronisation

yes

System volume - setting the maximum level

yes

Restore factory settings - Reset function

yes

Wireless Speaker Pairing - Pairing the wireless speakers

yes

Bluetooth Select - Selects BT input automatically

yes

Autoplay function - Automatic Bluetooth playback

yes

USB Soundcard use

USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS

Fabric cover with magnetic holder

yes

Sound settings can be saved to presets

yes
