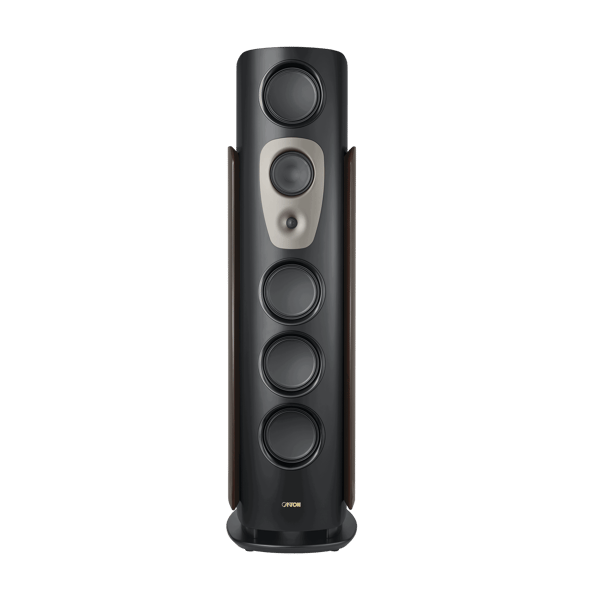

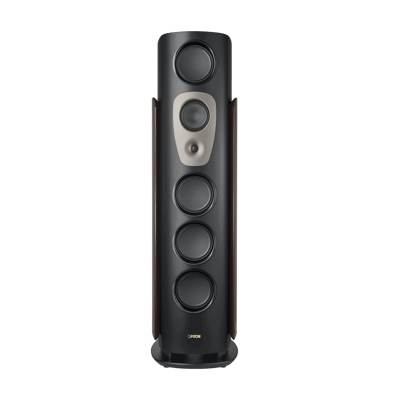

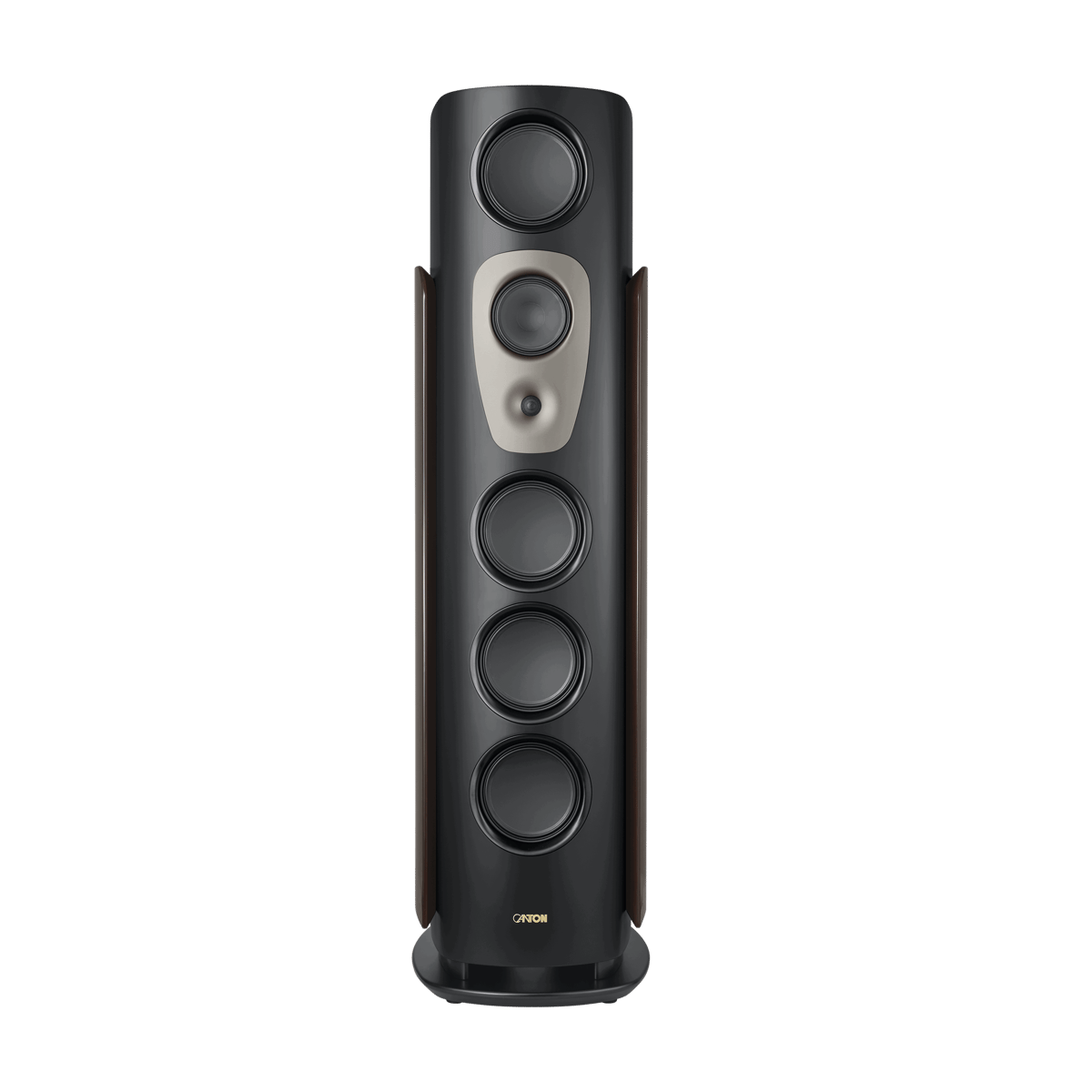

Canton - Germany Reference GS Edition

High End Standlautsprecher

Informations

• 3-way bass reflex system
• Black Ceramic tungsten technology
• 950 watts
• 46 x 163 x 72 cm (W x H x D)

Dimensions

46 x 163 x 72 cm (W x H x D) including base construction

Performance

950 watt music load capacity

Weight

155 kilogram

High-End Sound

Iconic sound for the highest quality demands

BCT diaphragm

Chassis with new BCT diaphragm (Black Ceramic Tungsten)

Cabinet shape

Sweeping cabinet shape for unlimited listening pleasure

WBT-nextgen™

WBT terminals for optimal signal connection

Fabric cover

Acoustically neutral cover with magnetic attachment

Warranty

10 years warranty on Reference passive loudspeakers

Uncompromising technology

Round baffles were designed for the Reference GS, as they are also used in the new Reference series. These 81 millimetre thick baffles are manufactured on a special 5-axis CNC milling machine. The elaborately curved side panels, bases and lids are made of multi-layer, 30-millimetre-thick wood laminate, which ensures that the cabinets are extremely stable. In addition, the side panels with fine real wood veneer, which are firmly attached to the side panels, significantly increase the weight of the enclosures. This further stiffens the enclosures and significantly reduces the natural resonance behaviour of the speaker enclosure. The sweeping curves enable an acoustically optimised enclosure design, whose freedom from edges effectively prevents edge reflections. Six speaker chassis are responsible for music reproduction in the 155 kg 3-way loudspeaker: four 218 mm BCT woofers, strategically positioned on the baffle, deliver an impressive performance in the large cabinet volume in combination with the efficient bass guide system. The 174 mm diameter BCT midrange driver, which is positioned high up, ensures a lively and authentic reproduction of the sound. For the first time in Canton's history, a diamond dome tweeter has been used for the 25 mm tweeter. This cone material enables substantial tweeter reproduction with the finest detail. The tweeter retains its accuracy and natural reproduction even at the highest volumes - completely effortless and stress-free.

Unique design

The Reference GS are a statement: the mighty floor-standing loudspeakers with a height of more than 160 centimetres and a weight of 155 kilograms impress with high-quality materials and genuine craftsmanship. Despite their imposing dimensions, the Reference GS loudspeakers, which are painstakingly handcrafted, are elegant in design and spoil you with their exquisite workmanship and impressive surface finish. The designers of the Reference GS harmoniously combine elements of wood, metal and lacquer to create an irresistible work of art. The result is a speaker that not only fulfils the highest demands in terms of sound, but also aesthetically.

Contact-friendly

The Canton Reference GS has a solid aluminium panel on the back of the housing, covering almost the entire height, which provides an adequate space for the high-end connection terminals from WBT and underlines the quality of the speaker. The nextgen connections from the renowned German manufacturer WBT from Essen offer the best possible sound quality as well as a long-term stable contact to the speaker cables used. The Reference GS can be operated in bi-wiring or bi-amping mode to explore the sound. If you do not want to use the bi-wiring or bi-amping mode, you can also operate the Reference GS in single-wiring mode. For this purpose, high-quality cable bridges consisting of WBT nextgen cable lugs and CantoLink 600 cables (manufactured by the renowned cable manufacturer in-akustik) are included in the scope of delivery. The Reference GS has controls for Canton's RC (Room Compensation) technology. This function allows the sound pressure levels of the mid-range and tweeters to be sensitively adjusted in 1.5 decibel increments. In addition, the bass range can be influenced in 1.5 decibel steps in order to adapt the speakers to the room acoustics and to cater for personal sound preferences.

Technology
