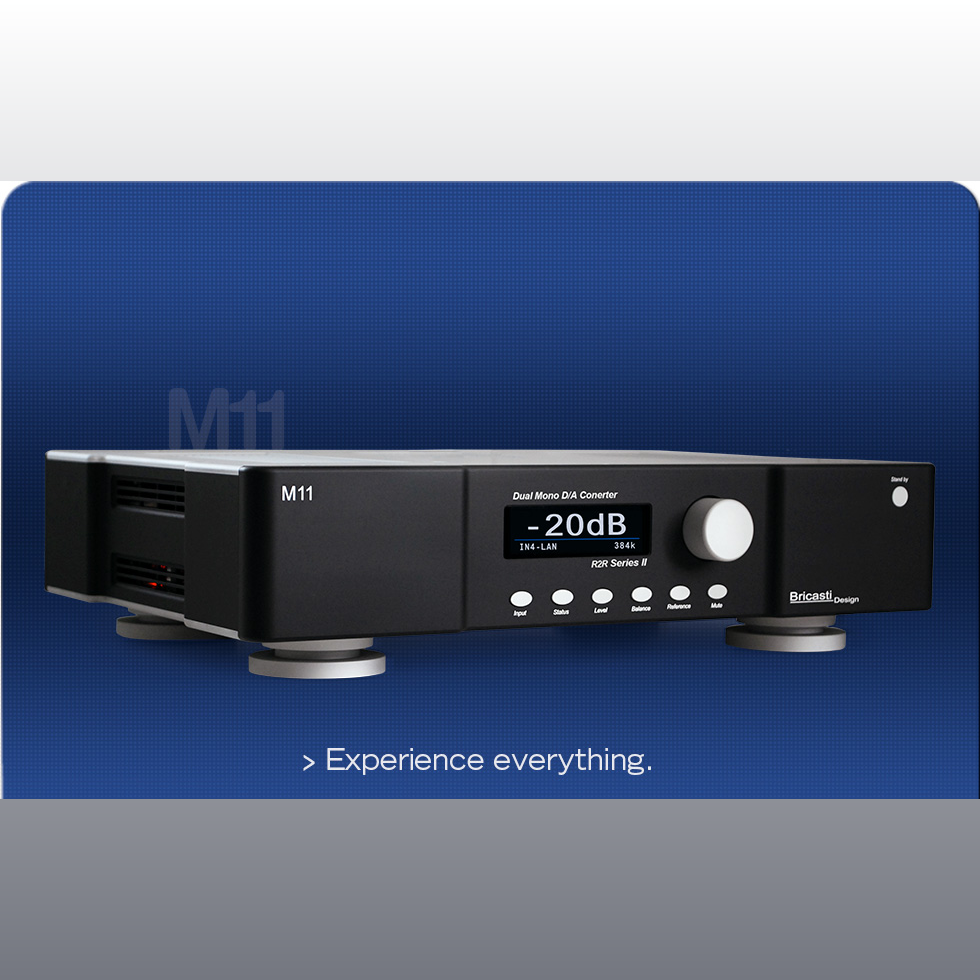

Bricasti Design M11 Series II D/A
The Bricasti Design
Model 11 Series II R2R D/A Converter
The M11 R2R Series II is the concentration of the Ladder D/A technology found in the flagship Bricasti Design M21 without compromise. The M11 R2R Series II features the fit, finish and sonic qualities of the Series II analog design, chassis and MDx processor.
Elegant and refined
The M11 utilizes resistor ladder D/A technology coupled with the latest proprietary MDx digital platform, clocking algorithms and filter technology for exceptional performance without the use of SRC's so signals stay native and true. The digital section is coupled with a pristine analog path with the goal to deliver the truest possibly representation of tonality, precision and dimension.
Superb Analog
A high-performance linear power architecture allows for a clean signal with extremely low noise and expansive headroom. Featuring Point-to-point wiring and stillpoint isolation integrated directly into the chassis, you will experience new depth, detail and dimensionality in your music. Improved spacial cues and separation create a truly immersive experience.
Network Player
The optional Network player offers one of the most sonically advantages avenues for audio playback created in the last decade, with pristine data transmission over long distances, without loss of signal or degradation from cable runs. This means your server can be located anywhere on the network rather than in your listening space, creating a clutter-free listening environment and ground-breaking performance.
Masterfully connected
The M11S2 digital input selection is well appointed to fit most any system. It also features a fully differential design which creates a less resistant output signal path, ideal when matched with fully differential M20 preamplifier and the Bricasti M28 and M25 amplifiers.
Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Digital Inputs
- XLR: AES/EBU 24 bit Single Wire, BNC: SPDIF, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2
- Sample Rates AES, SPDIF, AUX in
- 44.1 kHz, to, 192khz
- Sample Rates USB
- 44.1 kHz, to, 384kHz, DSD 64fs 128Fs 256Fs Native or DoP
- Sample Rates Ethernet (optional)
- 44.1 kHz to 384kHz PCM, 64x 128x Native and DoP
- Jitter
- 8 psec @ 48k / 6psec @ 96k
- Balanced Analog Outputs
- XLR balanced (pin 2 hot)
- Impedance
- 40 ohm
- Output
- Internally selectable +13.5 dbm or +10 dbm
- D/A Conversion
- 20 bit Ladder type
- Frequency Response @44.1k
- 10 hz- 20 kHz +0dB, -.2 dB
- Dynamic Range
- >120dB A-Weighted
- THD+N @ 1k
- THD+N @ 1k: .0020% @ 0dbfs<
- Unbalanced Analog Outputs
- RCA
- Impedance
- 40 ohm
- Output level
- +8 dbm (2V RMS)
- D/A Conversion
- 20 bit Ladder type
- Frequency Response @ 44.1k
- 10 hz- 20 kHz -.2 dB
- Dynamic Range
- >120dB A-Weighted
- THD+N @ 1k
- .0020% @ 0dbfs
- General Specifications
- EMC: Complies with: EN 55103-1, EN 55103-2, FCC part 15 and Class B
- RoHS
- Complies with: EU RoHS Directive 2002/95/EC
- Safety
- Certified to: IEC 60065, EN 55103-2
- Operating Temperature
- 32 F to 105 F (0 C to 40 C)
- Storage Temperature
- -22 f to 167 F (-30 C to 70 C)
- Finish
- Anodized aluminum, nickel plating with brass knobs and buttons.
- Dimensions
- 17” x 12“ x 4.5”
- Weight
- 15 lbs
- Shipping Weight
- 18 lbs
- Shipping Dimensions
- 22”x 17”x 7”
- Mains Voltage
- -100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set
- Trigger out
- TRS mini jack, Tip ground, Sleeve 5V
- Power consumption
- 28 Watts (6W standby)
- Warranty parts and labor
- 2 yrs non-transferable.
Manufacturer's Description — Bricasti Design
The Bricasti Design
Model 11 Series II R2R D/A Converter
The M11 R2R Series II is the concentration of the Ladder D/A technology found in the flagship Bricasti Design M21 without compromise. The M11 R2R Series II features the fit, finish and sonic qualities of the Series II analog design, chassis and MDx processor.
Elegant and refined
The M11 utilizes resistor ladder D/A technology coupled with the latest proprietary MDx digital platform, clocking algorithms and filter technology for exceptional performance without the use of SRC's so signals stay native and true. The digital section is coupled with a pristine analog path with the goal to deliver the truest possibly representation of tonality, precision and dimension.
Superb Analog
A high-performance linear power architecture allows for a clean signal with extremely low noise and expansive headroom. Featuring Point-to-point wiring and stillpoint isolation integrated directly into the chassis, you will experience new depth, detail and dimensionality in your music. Improved spacial cues and separation create a truly immersive experience.
Network Player
The optional Network player offers one of the most sonically advantages avenues for audio playback created in the last decade, with pristine data transmission over long distances, without loss of signal or degradation from cable runs. This means your server can be located anywhere on the network rather than in your listening space, creating a clutter-free listening environment and ground-breaking performance.
Masterfully connected
The M11S2 digital input selection is well appointed to fit most any system. It also features a fully differential design which creates a less resistant output signal path, ideal when matched with fully differential M20 preamplifier and the Bricasti M28 and M25 amplifiers.
Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.
