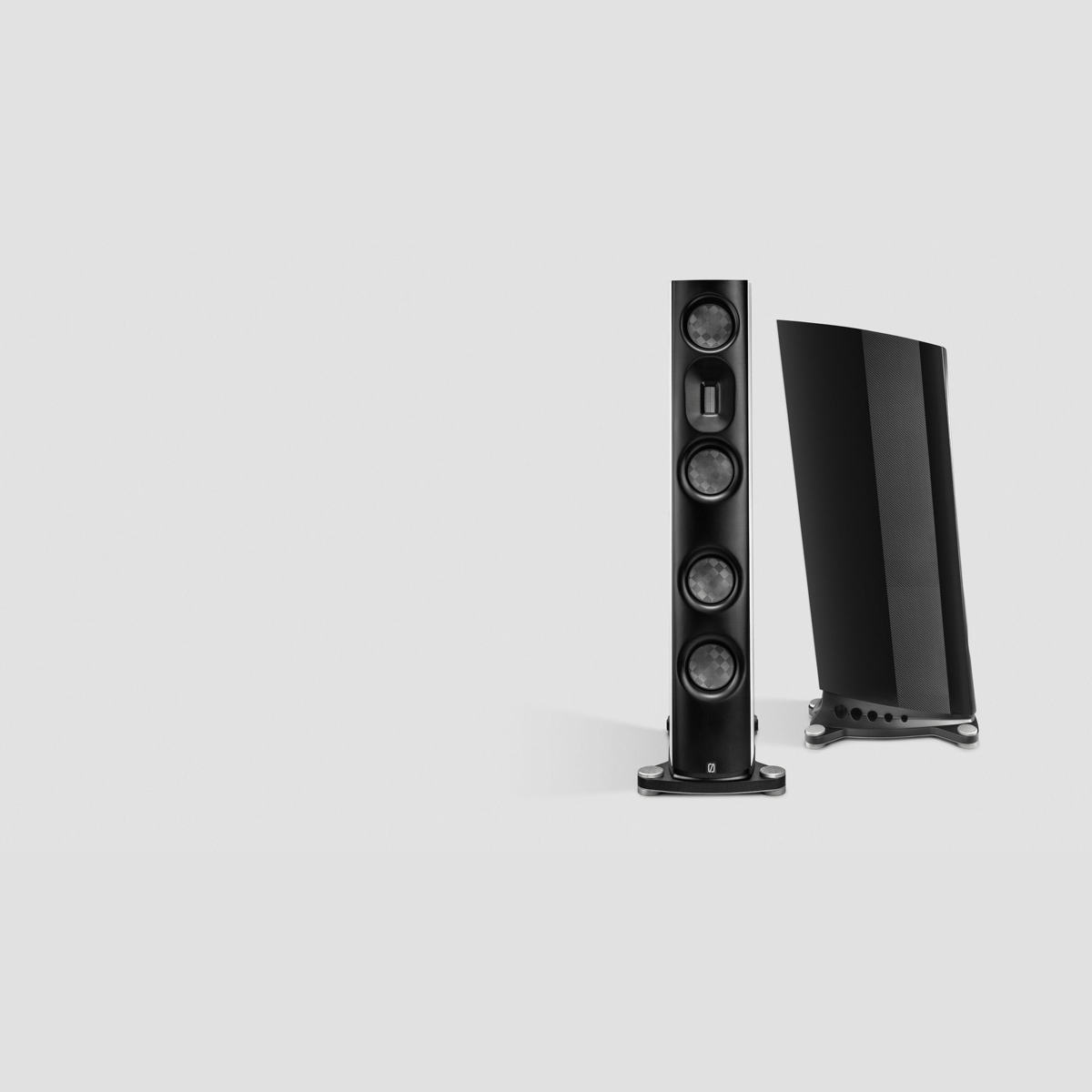

Borresen Acoustics Børresen C3

Precision Engineering and Elegant Design

Inspired by the groundbreaking innovations of the 0-, T-, and M-series, the C-series is equipped with meticulously crafted drivers, precisely engineered crossovers, and cabinets optimized for acoustic performance are combined with anti-resonance technologies to create a loudspeaker that balances refinement and power in perfect harmony.

Technologies and Components

Bass/midrange Drivers: Børresen DCC5 Neo

At the core of the C-Series performance is the Børresen 5-inch CC Neo bass/midrange driver, meticulously crafted to deliver superior clarity and dynamics.

The Membrane The membrane consists of three layers, laminated into a single unit: an aramid honeycomb core between two carbon fiber skins. The combination of these materials result in a moving surface with exceptional properties. Carbon fiber layers provide optimum stiffness in many different directions. This unique characteristic reduces vibrations and resonances to incredibly low levels.The Magnetic Motor System The C-Series features a sophisticated magnetic motor system with double copper caps on the pole rings. This design, adapted from higher-end Børresen drivers, minimizes electromagnetic resonance and lowers inductance, easing the load on the amplifier.

The Børresen Ribbon Tweeter: Speed and Precision

The C-Series is equipped with Børresen’s renowned RP94 Ribbon Planar Tweeter, a signature feature of the Børresen brand. With a remarkable efficiency of 94 dB and an ultra-light moving mass of just 0.01 grams, this closed ribbon tweeter is capable of incredible speed and responsiveness. Operating from 2.5 kHz and above, it captures the finest sonic details with precision and is robust enough to handle high transient peaks without distortion. This level of detail and clarity allows listeners to experience music with a level of subtlety and refinement rarely achieved.

Crossover

The Børresen C3 loudspeaker is based on serial crossover networks, which provide the same phase-locked electric current flow to transducers in the filtering region. Although this crossover topology is significantly more difficult to implement, as it divert the out-of-band currents, it creates a much more coherent filtering system.

Designed with bi-wiring with the option of bi-ampingThe Bi-wiring terminal on the rear support the ability to work with two independent amplifiers. This enables each section (bass and midrange/treble) to receive sufficient power, enhancing precision, clarity, and spatial depth. The speakers can be controlled, and room optimized very precisely with the Aavik active crossover found in a variety of Aavik amplifiers.

Cabinet: Designed for acoustic excellence

Thick milled hard-wood laminatesExcellent mechanical self-damping properties

1mm-thick carbon fiber panels applied to the sidesSignificantly increases the rigidity of the enclosure

Speaker base designed for Ansuz Darkz technologyTo control resonance, enhancing sound quality and visual appeal

Black or white high gloss lacquer and enhanced with optical carbon fiber inserts

Designed by Michael Børresen and Flemming Erik Rasmussen:Where meticulous engineering meets creative artistry

Internal Cabinet Design

The cabinet houses internal 5mm-thick block-milled wood supportsMinimize distortion, standing waves, and external resonances.

5-inch midrange drivers in semi-open chambersEnhance decompression and eliminate resonances, delivering improved openness and expansive imaging.

The Tesla coil principle

The principle is to have two coils that are wounded in each direction / a coil and a counter coil. In Ansuz words: “A double inverted coil” – the two coils are both carrying voltage – and when the Tesla coil encounters a voltage spike a counter spike is activated in order to eliminate the noise. As Noise spikes are pure voltage and carries virtually no charge, the cancelation is quite good, but not 100%. By adding more P-TC coils in parallel the performance increases. By implementing this the perceived blackness in the music improves significantly. Ansuz Tesla coils are available in various types as they complement each other in terms of strengths /weaknesses.

Analog dither technology 3rd generation

A 3rd generation of the Ansuz analog dither technology has been developed. Analog dither technology originated in radar, where it ensured a stronger signal and thus greater range. The active Tesla coils send pulsating signals at precisely defined frequencies. These signals are sent in anti-phase. This significantly amplifies the musical signal and eliminates the background noise floor.

Analysis and studies have led to new options – and a lot of listening has resulted in this 3rd generation design which is a further optimization of the most effective frequencies which opens the soundscape even more and with the tiniest details when it comes to reproduction of the recordings.

Internal Ansuz wiring

The speaker drivers are wired using Ansuz wiring technology to ensure a high level of electrical conductivity for authenticity in sound reproduction.
