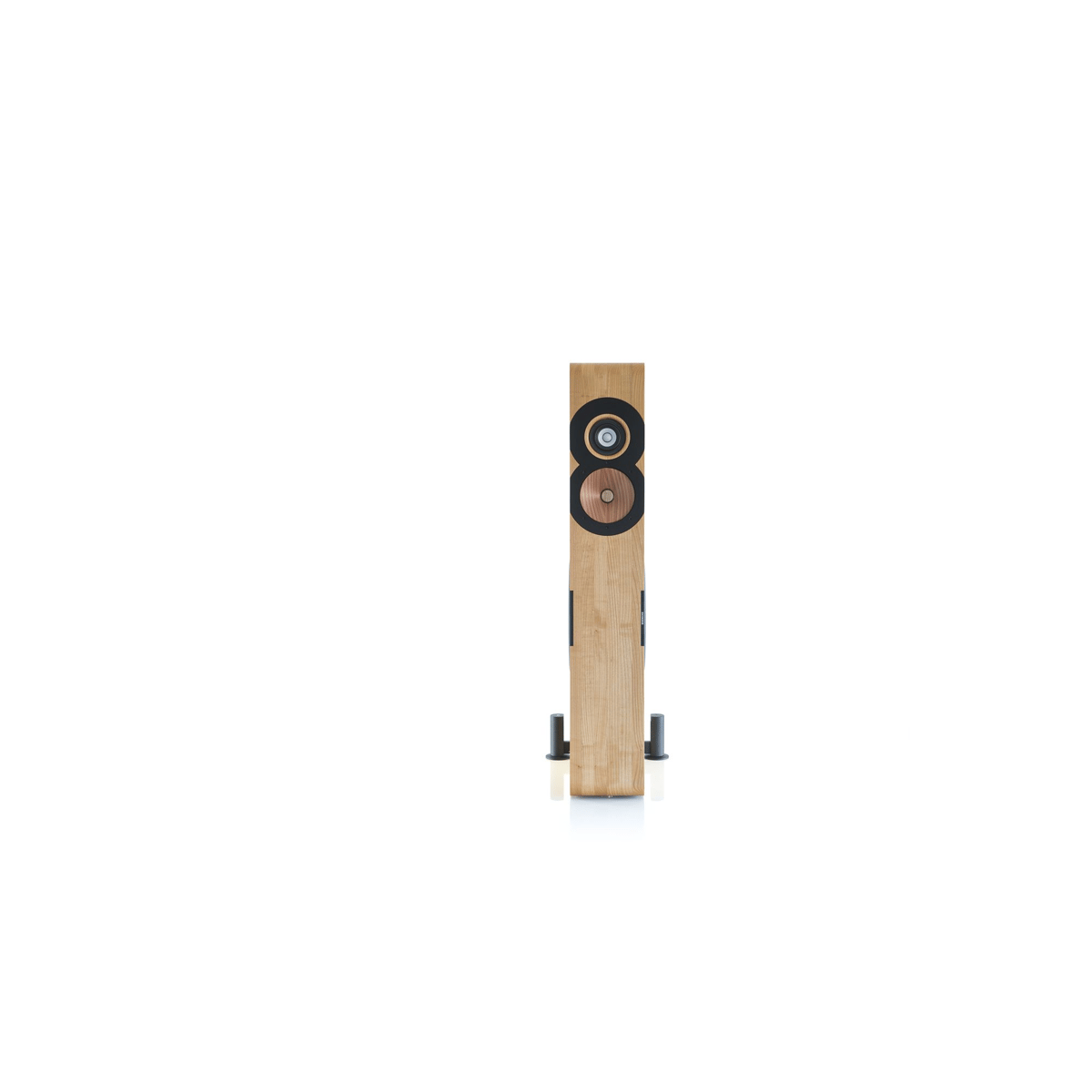

Boenicke W13

SE Version

• Twin 13″ long throw bass drivers with ultra hard injection moulded diaphragm in sealed enclosure, driven by 2 x 350 W Class D amplifier module with programmable DSP and 4 user-selectable presets for optimal integration in any listening room
• 6″ custom-made woodcone bass-midrange driver with 2-cm copper gold electromechanical parallel straight resonator, 1st order low pass filter, no high pass filter, ash tree phase plug, magnet structure force fit mounted to the whole wooden mass of enclosure
• Green Harmonia laser-informed wooden information carrier mounted on all magnets
• 3″ custom-made widebander, 1st order high pass filter, 2-cm copper gold electromechanical parallel straight resonator
• Added spiral resonators mounted to magnets of both wideband and bass driver
• Lessloss C-Marc internal wiring
• KLEI Classic Harmony Silver binding posts with cherry tree Terminal Tightening Nut
• Rear ambient tweeter
• Added latest generation Bybee Quantum Purifiers
• Added proprietary phase linearization network
• Mundorf Silver Gold Oil capacitor for widebander
• Added Duelund Tinned Copper Foil 0.01 uF bypass capacitor
• Swing Base included
• Harmonisation included

SE+ Version

• 2-cm copper / 2-cm copper gold straight resonator combination installed at both widebander and bass driver in series, in addition to the parallel device
• Added spiral resonators mounted to magnets of both wideband and bass driver
• 18.5 cm spiral EMF resonator coil at positive singnal wire
• Added Steinmusic Speaker Match Signature
• Added Harmonix RF 5700 Tuning Bases to widebander
• One more Bybee Quantum Purifier added, now directly placed before positive driver terminal
• Audio Consulting custom-made main capacitor for widebander
• Green Harmonia laser-informed wooden information carrier mounted on all magnets
• KLEI Classic Harmony Silver binding posts with cherry tree Terminal Tightening Nut with Green Harmonia G-Point technology
• Glue joints in widebander structurally perfected by Green Harmonia technology
• Mundorf Silver Gold Oil capacitor for rear tweeter
• 3 Lessloss Firewall for speakers filters installed
• C37 lacquer on rear side of wood cone and inner side of voice coil former
• Swing Base included
• Harmonisation included

Trees

Choose from walnut, ash, core ash and cherry. Oak upon request.

Dimensions

105 x 18 x 39 cm, weight approx. 40 kg per piece (depending on version and wood)
