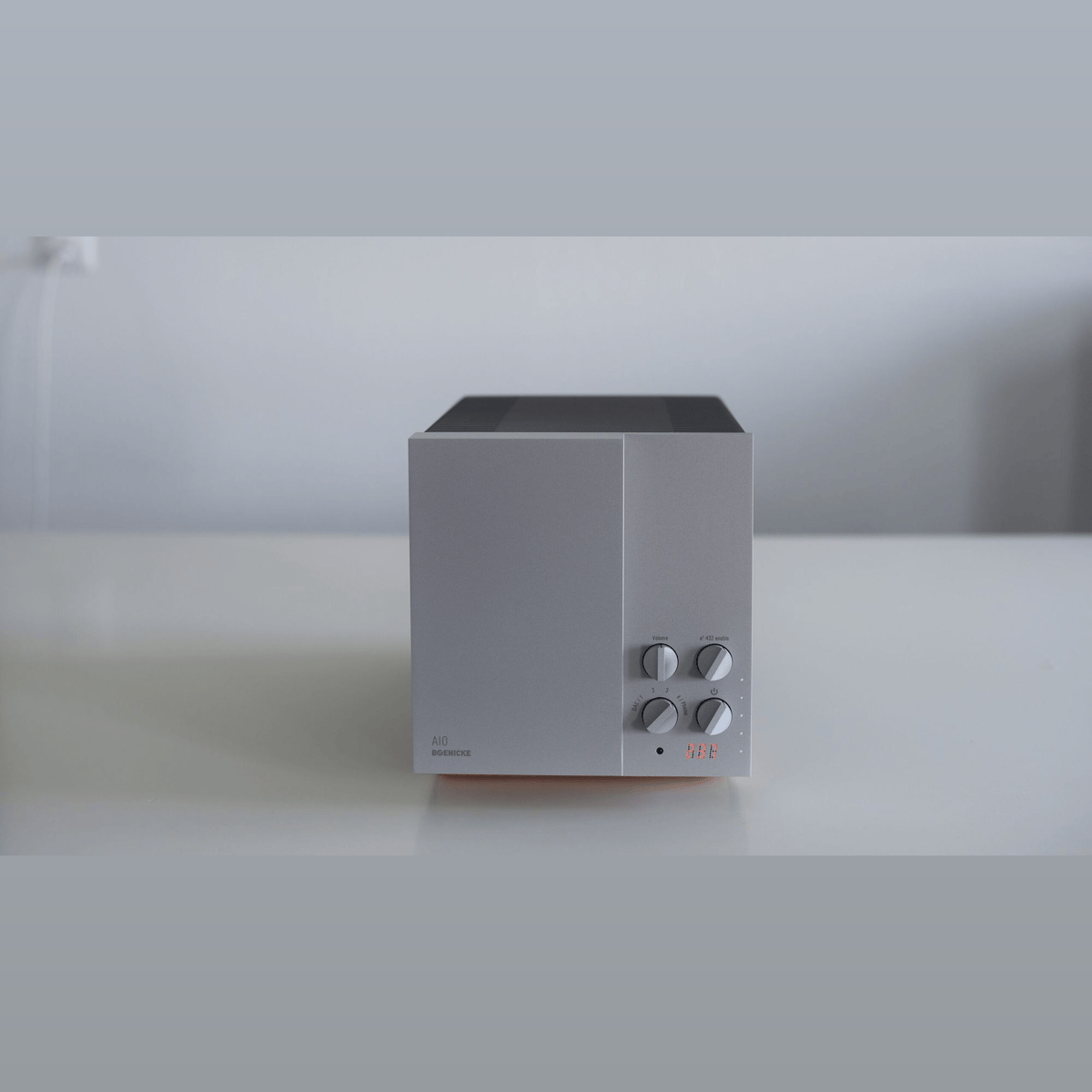

Boenicke AIO

Finally: Thank you all for having been so patiently awaiting the release of our new electronics. A lot has been happening in the last years, and the result of all our efforts in this field we present now:

aio. All-In-One.

Available as a power amp, preamp, DAC or network switch, and any combination of those four.

For now we will only say: The wait was worth it.

Poweramp Section:

• 125 / 190 / 260 W into 8 / 4 / 2 Ohm
• Gain: 26 dB
• Signal to Noise Ratio: 100 dB @ 10W
• THD+N : 0.006 %
• Frequency Response : 10 Hz ~ 50 kHz +- 0.2dB @ 8 Ohm
• Input Impedance: 15 kOhm
• Output Impedance: 20 mOhm

Buffer (Preamp) Section:

• 4 line inputs, of which 2 inputs can be internal DAC and / or phono pre pre
• Input impedance: 15 kOhm
• Output impedance: < 2 Ohm

DAC section:

• Automatically switches to active source
• USB, SPDIF coax, 2 x TOSLINK optical
• Source
• more info to follow

Network Switch section:

• The only network switch on the market featuring six (!) switches in series.
• more info to follow

General Features:

• Dimensions: 22 x 22 x 35.5 cm
• Cherry wood bottom and rear plate
• Black Ravioli Pad footers
• Each section is housed in a cnc-milled, solid Cherry wood enclosure, copper spray shielded
• Lessloss internal wiring
• IEGO High Grade AC inlet
• Green Harmonia Fuse
• Softstart module on resonator-length-trimmed FR2 pcb with double series and one parallel power resonator
• KLEI Classic Harmony RCA sockets and binding posts
• Fully Harmonised
