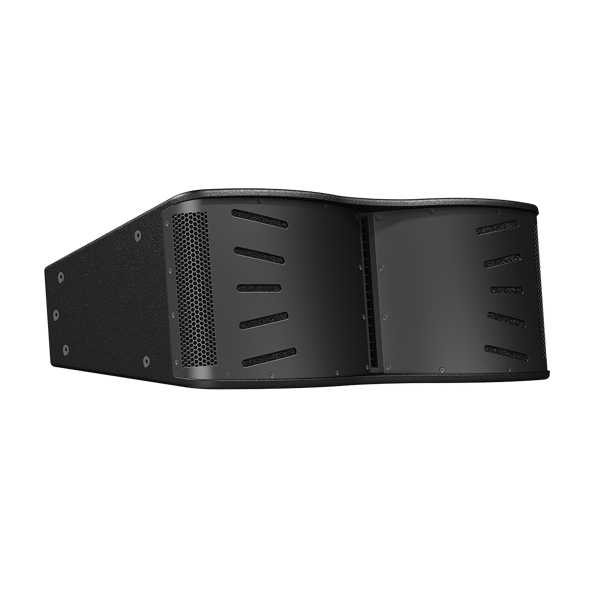

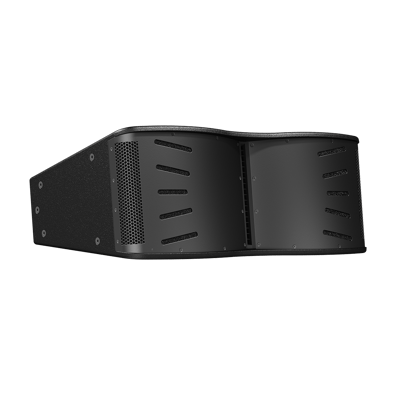

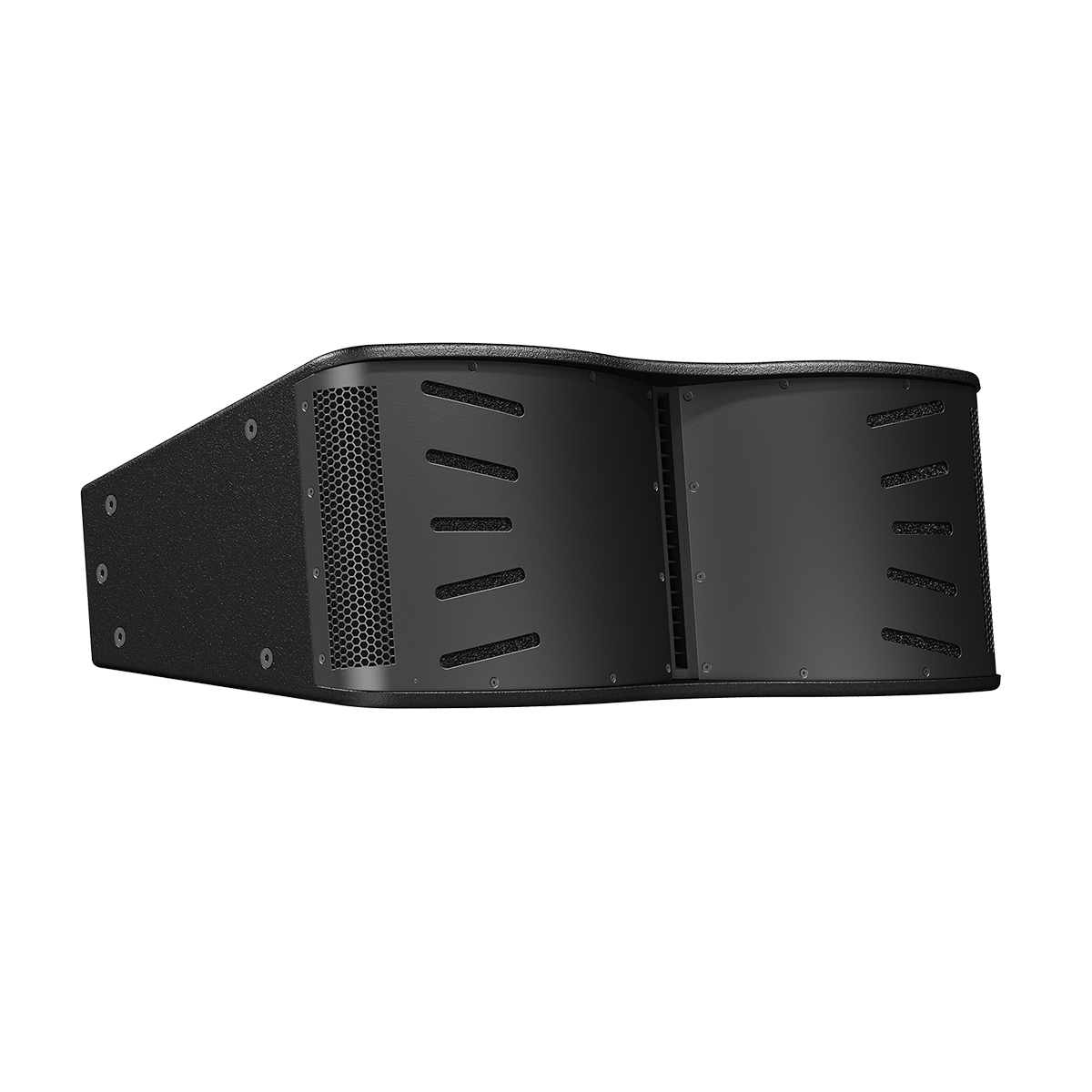

Blaze CCA10i

Constant Curvature Array, Scalable 20° Vertical

The CCA10i is a compact, arrayable point source loudspeaker designed for medium-sized venues to large distributed systems that need a flexible, scalable speaker solution.

Mounted horizontally with tight acoustic centers to minimize comb filtering, each CCA10i enclosure provides a fixed 20° vertical coverage and can be flown with additional enclosures in vertical arrays.

Featuring a coaxial compression driver that uses separate midrange and high-frequency polymer ring-shaped diaphragms, the compression driver delivers an extremely wide response from 420 Hz to 18,000 Hz.

Two 10” high-excursion ultra-low distortion drivers offer reduced power compression, providing efficient and accurate bass reproduction down to 52 Hz.

Features

• 3-way Arrayable Point Source, designed for Bi-Amping.
• Constant Curvature waveguide for unprecedented array coherence.
• Precision 160° symmetrical horizontal pattern control.
• Variable vertical coverage in 20° increments (one enclosure 20° and max 12 enclosures).
• Dual 10” ultra-low distortion, high excursion drivers.
• System range 52 Hz – 18 kHz.
• Exceptionally high SPL.
• Rugged Polyurea coating for extreme durability.
• System integration with Blaze Audio amplifiers.
