Blaze CBL523

Passive, 2-way Constant Beamwidth Loudspeaker

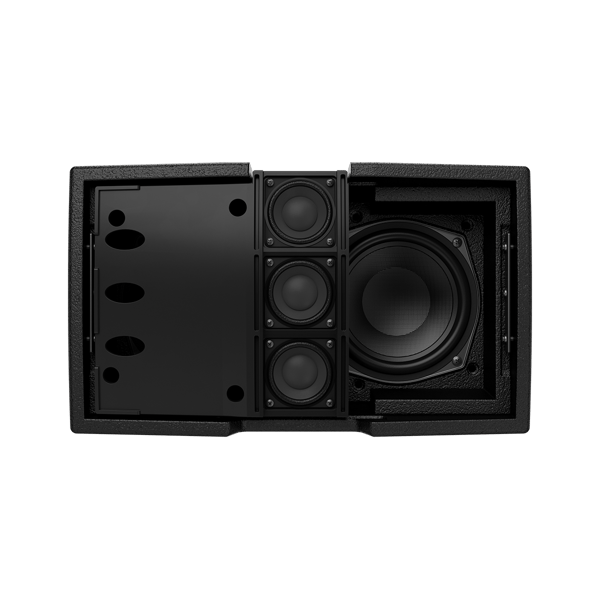

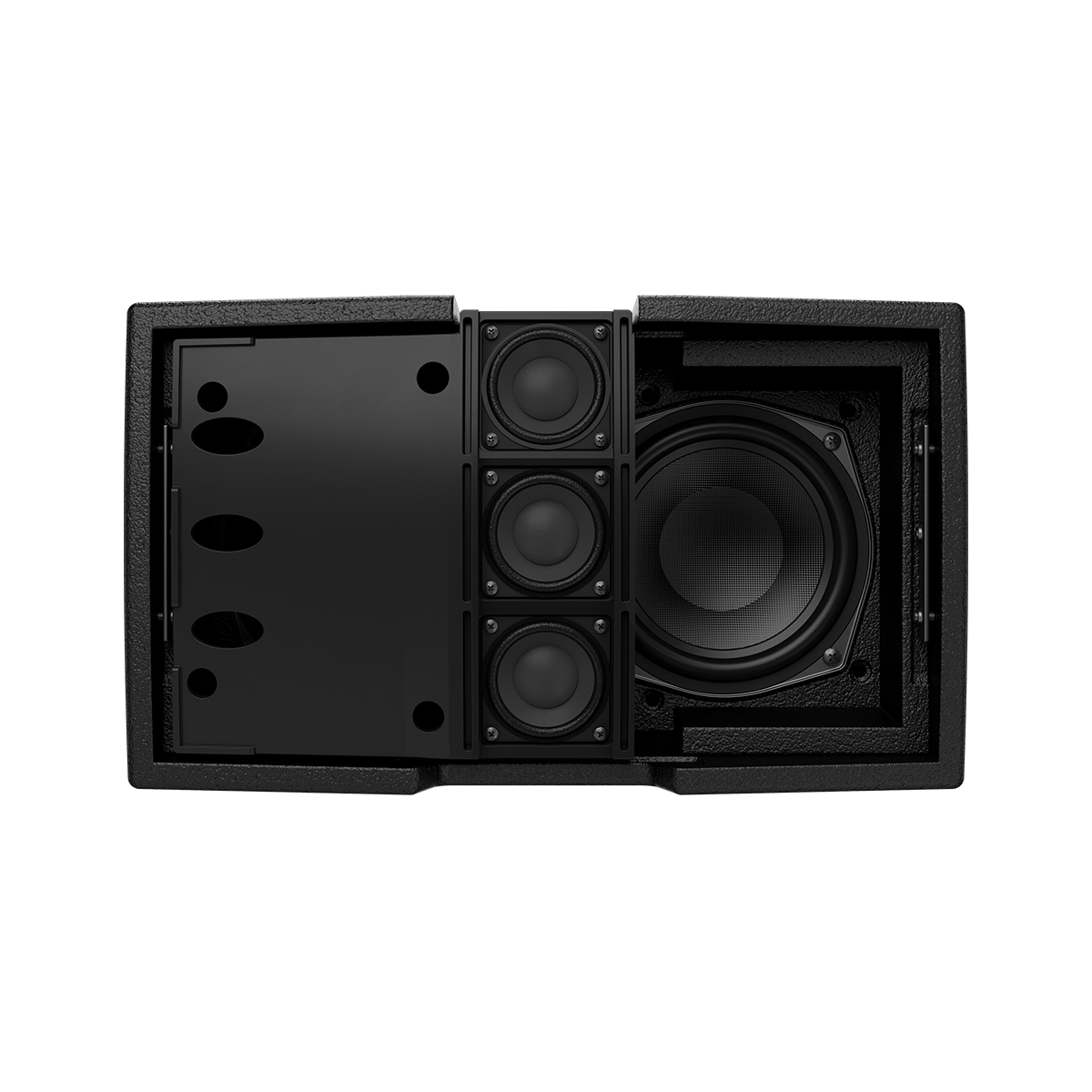

The ultra-compact and innovatively designed CBL523 is a perfect fit where on-wall distributed audio is needed.

The 20.5 x 35 cm (8″ x 14″) enclosure features two 5” low-frequency drivers complemented by a vertical constant directivity array of three 2” high-frequency drivers, delivering 119 dB of maximum SPL in a focused 160° (horizontal) x 55°* (vertical) pattern.

The CBL523 has versatile mounting options with custom-designed hardware, as well as the ability to stack and suspend two units together for increased SPL and an increased vertical pattern.

Features

• Two x 5” custom low-frequency drivers.
• Three x 2” mid-high frequency drivers.
• 160° x 55°* Constant Beamwidth pattern.
• 119 dB maximum SPL.
• Symmetrical and compact trapezoidal design.
• Powder coated steel grille with a high transmission ratio.
• Tuned with a passive crossover and integration with Blaze Audio.
