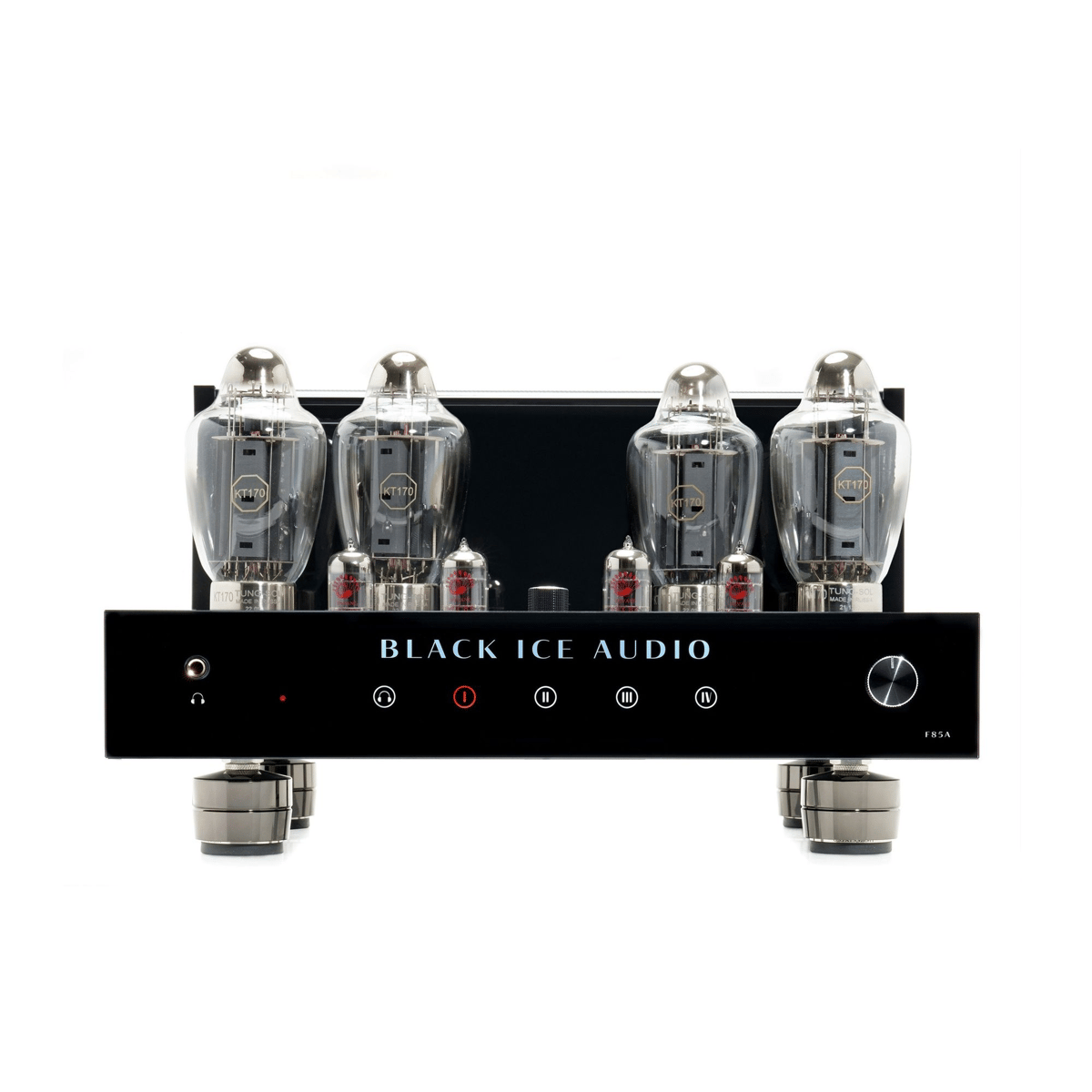

Black Ice Audio Fusion 85A Integrated Tube Amplifier - 95WPC* (Reference)
The Black Ice Audio F85A is the next level of Black Ice Audio and is built in Maryland. We have gathered and tested components for the last 10 years to find the best combination to supercharge our beloved F35.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
No reviews found yet

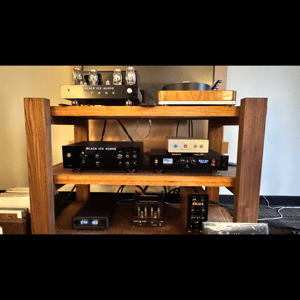

YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Maximum Power Output
- 95 WPC at 8 ohms, 1KHz with KT170 Tubes 85 WPC at 8 ohms, 1KHz with 6550, KT88 Tubes 75 WPC at 8 ohms, 1KHz with EL34, KT77, 6CA7 Tubes
- Continuous Rated Output Power
- 85 WPC at 8 ohms, 1KHz with KT170 Tubes 70 WPC at 8 ohms, 1KHz with 6550, KT88 Tubes 60 WPC at 8 ohms, 1KHz with EL34, KT77, 6CA7 Tubes
- Frequency Response
- 8Hz to 130KHz + 1dB (at 1 watt into 8 ohms)
- Bandwidth
- 15Hz to 80KHz + 3dB; 0dB 60 W 1KHz
- Distortion THD
- Less than 1% at 20 V output, 28Hz to 15KHz
- Circuit Type
- Fully Balanced differential push-pull
- Inputs
- 2 x XLR/RCA and 2 x RCA only
- Input Impedance
- 100Kohms
- Input Sensitivity
- 1V at 1KHz for 60/70 watt output
- Output Impedance
- 4 ohms and 8 ohms
- Negative Feedback
- Less than 4.5 dB
- Noise and Hum
- 95dB below rated output
- Tube Complement
- 4 x 6CA7, 6550, KT88, or KT170 power output tubes; 4 x 12AX7A/ECC83 signal tubes
- Power Requirements
- 110V-120 VAC 60Hz 6 watts-standby, 450 watts maximum (220 VAC 50Hz option)
- Dimensions
- 17 inches (43cm) wide by 15 inches (38cm) deep by 10 inches (19 cm) high
- Weight
- 49 pounds (22 Kg) net, approximately 60 pounds (27 Kg) packaged
- Warranty
- 5 year limited parts and labor. 1 year or 1000 hours whichever comes first on Black Ice Audio Tubes
- Bias Settings
- 40 milliamps + 5 mA for EL 34s, 50 milliamps + 5 mA for 6550s
- Fuse
- 110 - 120 VAC, 6.3 Amp Slow Blow; 200 - 240 VAC, 3.15 Amp Slow Blow Size 5mm X 20mm
XLR Input
Balanced Output
Pre-Out
Manufacturer's Description — Black Ice Audio
The Black Ice Audio F85A is the next level of Black Ice Audio and is built in Maryland. We have gathered and tested components for the last 10 years to find the best combination to supercharge our beloved F35.
