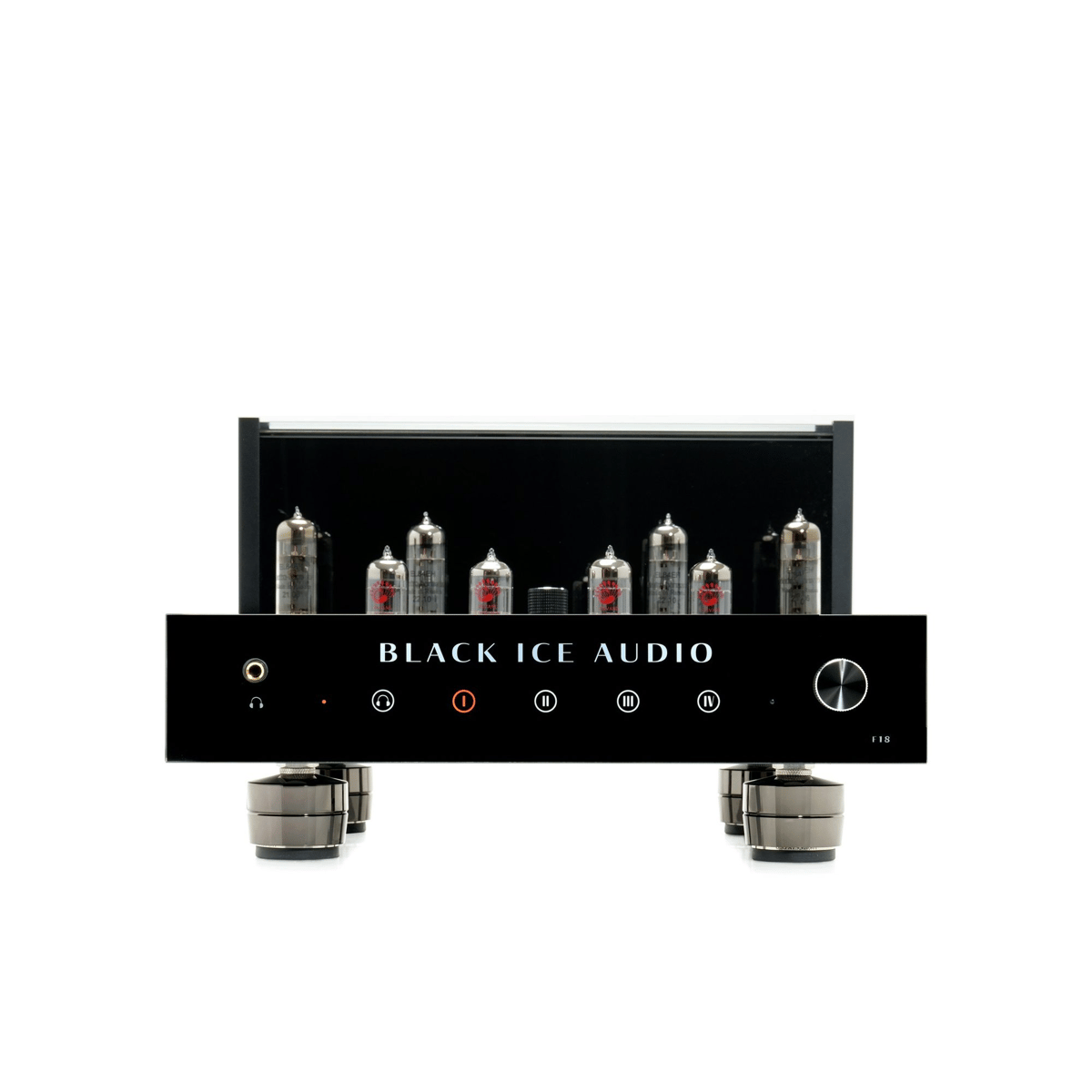

Black Ice Audio Fusion 18A Integrated Tube Amplifier 25 WPC* (Reference)
The Black Ice Audio F18A is the next level of Black Ice Audio and is built in Maryland. We have gathered and tested components for the last 10 years to bring the F11 to a new level.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
No reviews found yet
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Maximum Power Output
- 23 W per channel at 8 ohms, 25Hz to 60KHz with EL84 Tubes 25 W per channel at 8 ohms, 25Hz to 60KHz with 7189 Tubes
- Continuous Rated Output Power
- 18.5 W per channel at 8 ohms, 25Hz to 60KHz with EL84 Tubes 20.5 W per channel at 8 ohms, 25Hz to 60KHz with 7189 Tubes
- Frequency Response
- 8Hz to 130KHz + 1dB (at 1 watt into 8 ohms)
- Bandwidth
- 15Hz to 80KHz + 3dB; 0dB 19W 1KHz
- Distortion THD
- Less than 1% at 20 V output, 28Hz to 15KHz
- Circuit Type
- Fully Balanced differential push-pull
- Inputs
- 4x RCA
- Input Impedance
- 100Kohms
- Input Sensitivity
- 1V at 1KHz for 19 watt output
- Output Impedance
- 4 ohms and 8 ohms
- Negative Feedback
- Less than 4.5 dB
- Noise and Hum
- 95dB below rated output
- Tube Complement
- 4 x EL84/7189 power output; 4 x 12AX7A/ECC83
- Power Requirements
- 110V-120 VAC 60Hz 6 watts-standby, 350 watts maximum (220 VAC 50Hz option)
- Dimensions
- 14.5 inches (37cm) wide by 11.5 inches (29cm) deep by 9.25 inches (23.49cm) high
- Weight
- 32 pounds (14.5 Kg) net, approximately 43 pounds (19.5 Kg) packaged
- Warranty
- 5 year limited parts and labor. 1 year or 1000 hours whichever comes first on Black Ice Audio Tubes.
- Bias Settings
- 30 milliamps + 3 mA for EL84 / 6BQ5
- Fuse
- 110 - 120 VAC, 6.3 Amp Slow Blow; 200 - 240 VAC, 3.15 Amp Slow Blow Size 5mm X 20mm
Balanced Output
Manufacturer's Description — Black Ice Audio
The Black Ice Audio F18A is the next level of Black Ice Audio and is built in Maryland. We have gathered and tested components for the last 10 years to bring the F11 to a new level.
