Ayon audio Ayon CD-35 II HF #1
Ayon audio Ayon CD-35 II HF variant 1
Ayon audio Ayon CD-35 II HF variant 2
Ayon audio Ayon CD-35 II HF variant 3
Ayon audio Ayon CD-35 II HF variant 4

Ayon audio Ayon CD-35 II HF

Austria flag

AXPONA Show Winner – Positive Feedback Editors Choice

“Audio Oasis” Award!

“Best Sound” Cost No Object LA Audio Show  – The Show Newport

Robert Harley & Neal Gader

The Absolute Sound Magazine Award

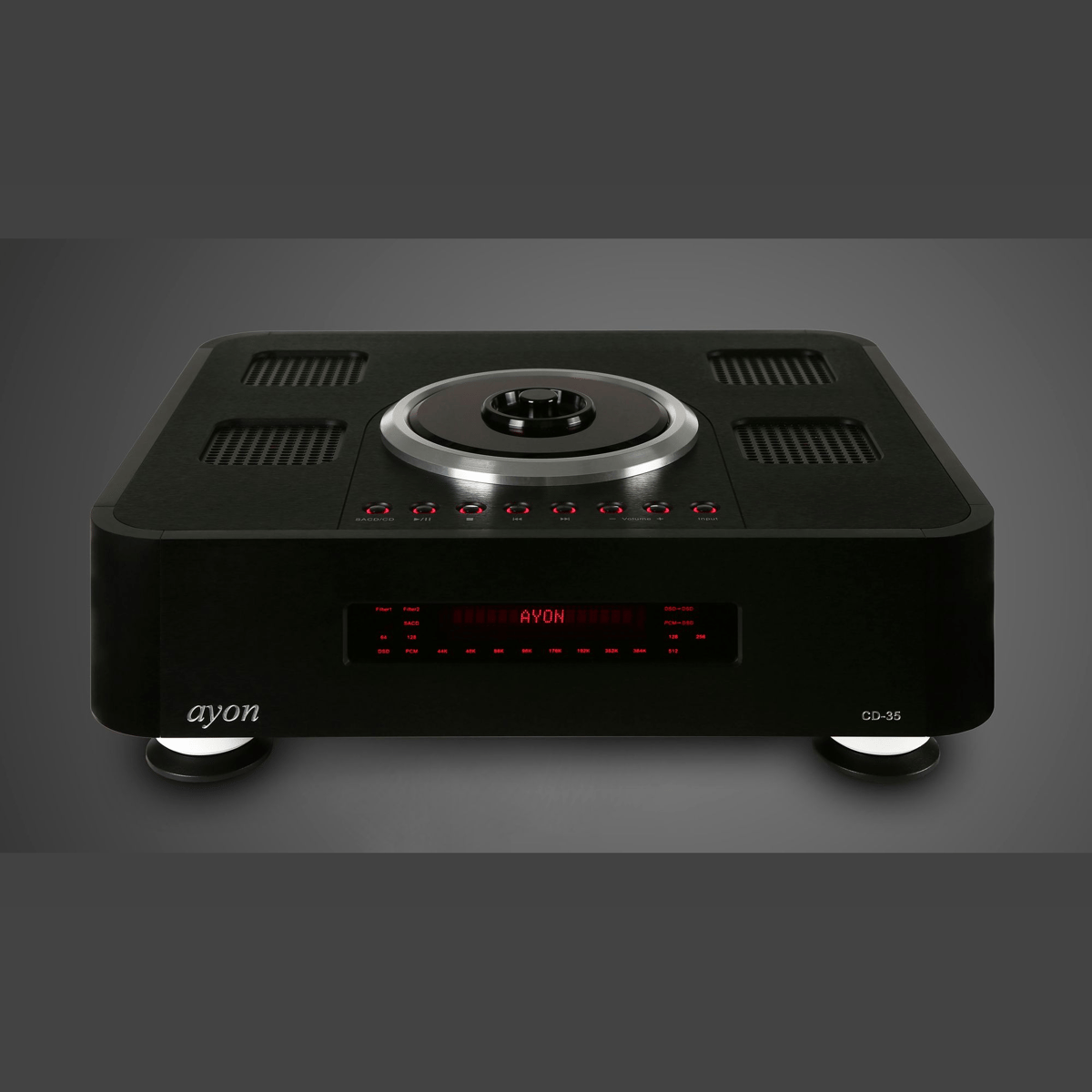

Ayon CD-35 II HF “Limited Edition”

Tube CD Player – Tube DAC

All pertinent components are matched at 1% level – Reference

Whipped up by the great success of the CD-35 II we got more and more requests to launch a special and limited Version of the CD-35 II, quasi a “digital” machine that should as “analogue” as never before. All music lovers engaged in top analogue turntables and/or reel-to-reel tape recorders also may feel to be approached. Many ideas, thoughts, suggestions, and a dedicated assistance of the people of the HighFidelity.pl magazine also were incorporated in the CD-35 II HF project. Based upon the existing CD-35 II technology every detail was re-examined carefully, refined, high-selected, re-adjusted, and the best-sounding components were implemented at the decisive points of the circuitry. Also, its slightly modified appearance, equipped with additional black elements, underline the exclusivity.


The CD-35 II HF reflects a deep magical illumination of space, paired with a dynamic black deployment of power second to none. With its enormous musical representation and its tranquility in detail also the “long-term listening” is always experienced as being relaxed and inspiring.


Herewith, a new era of digital/analogue CD-reproduction presents itself in the foreground, a masterpiece of the art of sound.


Some additional features


V-cap TFTF & Mundorf coupling capacitors;
Franc Audio – Ceramic Feet;
WBT-210 NextGen RCA Jacks;
Tantalum 2-Watt resistors for tube output-stage;
AKM 4497EQ for DAC section;
Black Finish for cooling slots, Top plate buttons, CD-LID and CD-inside housing;
All important components are matched at 1% level;
Limited at 35 pieces in total and only 1 piece is built per month;


Read full description
View at Ayon audio
Specifications

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Watt'n Potatoes

Not yet rated

This product doesn't have a Watt'n Potatoes score or editorial summary yet.

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Reviews & Sources

Online Reviews & Mentions

No reviews found yet

store
store
store
store
store
store

YouTube Reviews

No reviews found yet

store
store
store
store

Forum Mentions

No forum mentions found yet

store
store
store
store
store
store

Specifications

CD-Player
Ayon CD-35 II HF
Conversion rate
768kHz / 32 bit & DSD 256
DAC configuration
Fully symmetrical / 2 x 4497EQ AKM-Japan
DSP module (option)
PCM→DSD
Tube complement
6H30 & 5687
Dynamic range
> 120dB
Output level @1 kHz  / 0,775V -0dB Low
2.5V fixed or 0 – 2.5 V rms variable
Output level @1 kHz  / 0,775V -0dB High
5V fixed or 0 – 5V rms variable
Output impedance  Single-Ended-RCA
~ 300 Ω
Output impedance  Balanced-XLR
~ 600 Ω
Digital output
75 Ω S/PDIF (RCA)
Digital input
75 Ω S/PDIF (RCA) USB – 24/192 kHz & DSD128 I2S, BNC, AES/EBU 3 x BNC for DSD
S/N ratio
> 119 dB
Frequency response
 20Hz – 50kHz  +/- 0.3dB
Total harmonic distortion @ 1kHz
< 0.001%
Remote control
Yes
Output complement
 RCA & XLR
Dimension (WxDxH) cm
48x39x12 cm
Weight
17 kg
Built-in DAC
DSD Support
USB Audio
Balanced Output
SACD Playback
CD Playback
Hi-Res Audio

Manufacturer's Description — Ayon audio

AXPONA Show Winner – Positive Feedback Editors Choice

“Audio Oasis” Award!

“Best Sound” Cost No Object LA Audio Show  – The Show Newport

Robert Harley & Neal Gader

The Absolute Sound Magazine Award

Ayon CD-35 II HF “Limited Edition”

Tube CD Player – Tube DAC

All pertinent components are matched at 1% level – Reference

Whipped up by the great success of the CD-35 II we got more and more requests to launch a special and limited Version of the CD-35 II, quasi a “digital” machine that should as “analogue” as never before. All music lovers engaged in top analogue turntables and/or reel-to-reel tape recorders also may feel to be approached. Many ideas, thoughts, suggestions, and a dedicated assistance of the people of the HighFidelity.pl magazine also were incorporated in the CD-35 II HF project. Based upon the existing CD-35 II technology every detail was re-examined carefully, refined, high-selected, re-adjusted, and the best-sounding components were implemented at the decisive points of the circuitry. Also, its slightly modified appearance, equipped with additional black elements, underline the exclusivity.


The CD-35 II HF reflects a deep magical illumination of space, paired with a dynamic black deployment of power second to none. With its enormous musical representation and its tranquility in detail also the “long-term listening” is always experienced as being relaxed and inspiring.


Herewith, a new era of digital/analogue CD-reproduction presents itself in the foreground, a masterpiece of the art of sound.


Some additional features


V-cap TFTF & Mundorf coupling capacitors;
Franc Audio – Ceramic Feet;
WBT-210 NextGen RCA Jacks;
Tantalum 2-Watt resistors for tube output-stage;
AKM 4497EQ for DAC section;
Black Finish for cooling slots, Top plate buttons, CD-LID and CD-inside housing;
All important components are matched at 1% level;
Limited at 35 pieces in total and only 1 piece is built per month;
