Ayon audio Ayon BlackRaven

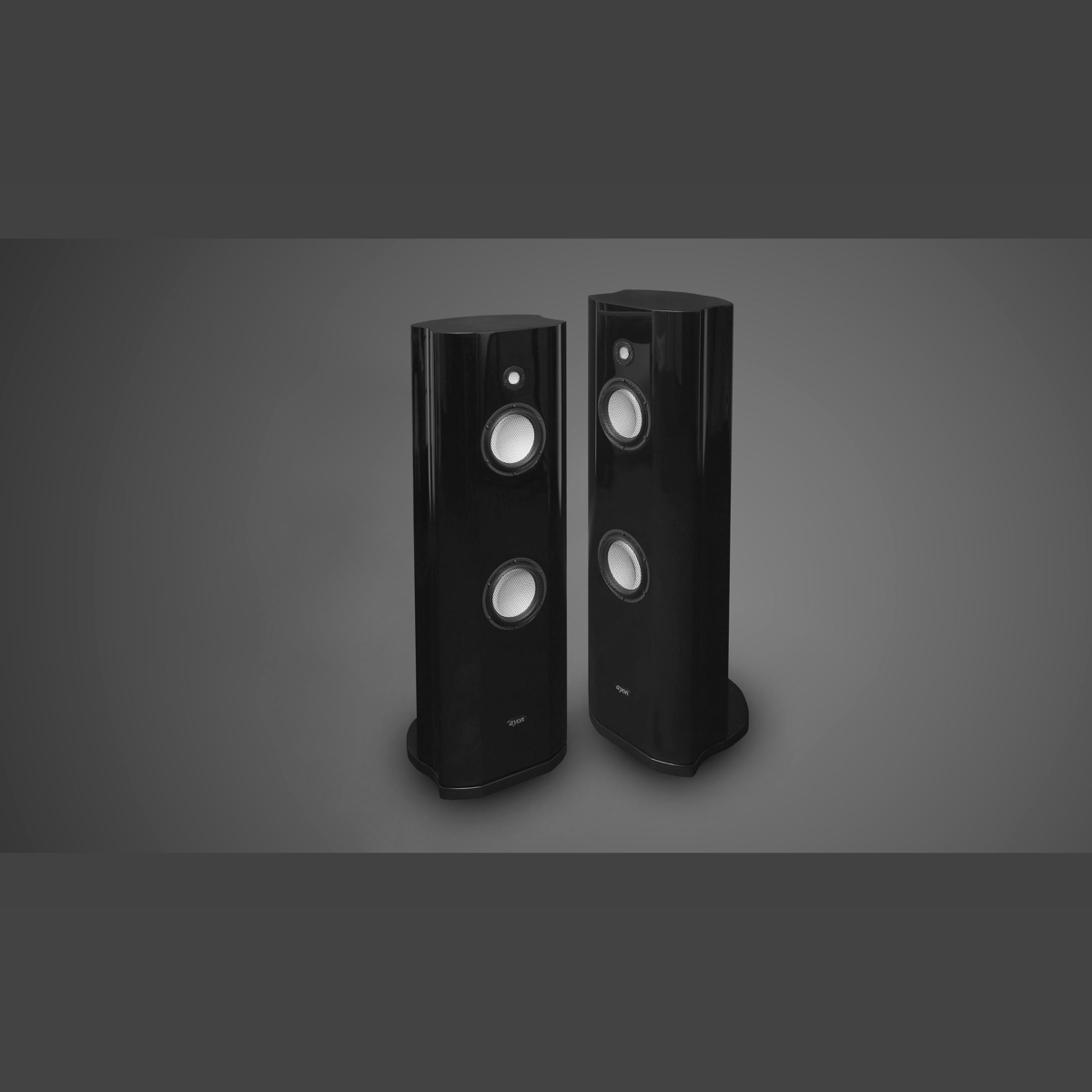

Ayon – BlackRaven Loudspeaker
“Timeless design, modern elegance and outstanding technology “
Instrument Grade Cabinet
The BlackRaven is the consistent advancement of the legendary former Ayon ceramic loudspeaker series (Seagull, Hawk, Falcon, and Eagle) anno 2003 – 2010. Only 9 years later with the new ceramic chassis technology we could develop further the loudspeaker decisively mounting ceramic chassis. Implementing specially produced special impedance bass-chassis-coils we could draw the impedance up and design the acoustic 6dB-cross-over much simpler. Also, the improved “almost not damped” elliptical Ayon instrument plywood cabinet (with its unequalled all-around radiating characteristics – by means of the elongated elliptical front plate the sound being carried into the room far and quasi “all around”) further contributes to the very easy operation of amplifiers, particularly the lovers of low-powered solid-state and tube amplifiers could hardly avoid this loudspeaker. The BlackRaven distinguishes itself by a very three-dimensional, sophisticated, transparent, light-footed, and spatial reproduction, with the bass playing dynamically, deep, and powerful. The BlackRaven is an audiophile universal genius, incarnating all attributes of an uncompromising reproduction at the top-level.
Features & Design
The BlackRaven is the consistent advancement of the legendary Ayon ceramic loudspeaker series (Seagull, Hawk, Falcon, and Eagle) produced over one decade ago. A decade later, with the new ceramic chassis technology, we further developed the loudspeaker, deciding to mount it on a ceramic chassis. Implementing specially produced impedance bass-chassis-coils, we now draw the impedance up and designed the acoustic 6dB- cross-over, an ingenious much simpler design. Also, the improved “almost not damped” elliptical Ayon instrument grade plywood cabinet (with its unequaled all-around radiating characteristics is done by means of the elongated elliptical front plate). The sound is carried far into the room in a quasi “surround sound.” The speakers disappear! This further contributes to the very easy operation of amplifiers, particularly the lovers of low powered solid state and tube amplifiers are a perfect match for this loudspeaker.
High powered amplifiers perform flawlessly as well.
Ayon Real Wood Veneer Finishes
The Ayon loudspeaker models are available in a choice of the most exciting real wood veeners.
Standard veneers are: French Walnut-HG, Tineo-HG and Etimo-HG. Optional veneers on request!
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
No reviews found yet
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Speaker
- Ayon BlackRaven
- System
- 2 1/2-way Airflow Damping System (ADS)
- Cabinet Design
- Elliptic
- Cabinet Material
- Resonance optimized instrument plywood
- Driver Complement
- 1 x 1.2″ Cell-Ceramic Tweeter 1 x 6.7″ Ceramic Woofer/Mid 1 x 6.7″ Ceramic Woofer
- Crossover frequencies
- 1000Hz / 2300Hz
- Impedance
- 4 Ohm
- Sensitivity (1W / 1m)
- 92 dB
- Recommended Amp Power
- 5W – 120 Watt
- Frequency Response
- 35Hz -30 kHz / -3 db
- Terminal
- WBT NextGen
- Internal Wire
- Custom made
- Bass Boost
- Switchable
- Dimensions (HxWxD) each
- 111x35x23 cm
- Weight, each
- 35 kg
Manufacturer's Description — Ayon audio
Ayon – BlackRaven Loudspeaker
“Timeless design, modern elegance and outstanding technology “
Instrument Grade Cabinet
The BlackRaven is the consistent advancement of the legendary former Ayon ceramic loudspeaker series (Seagull, Hawk, Falcon, and Eagle) anno 2003 – 2010. Only 9 years later with the new ceramic chassis technology we could develop further the loudspeaker decisively mounting ceramic chassis. Implementing specially produced special impedance bass-chassis-coils we could draw the impedance up and design the acoustic 6dB-cross-over much simpler. Also, the improved “almost not damped” elliptical Ayon instrument plywood cabinet (with its unequalled all-around radiating characteristics – by means of the elongated elliptical front plate the sound being carried into the room far and quasi “all around”) further contributes to the very easy operation of amplifiers, particularly the lovers of low-powered solid-state and tube amplifiers could hardly avoid this loudspeaker. The BlackRaven distinguishes itself by a very three-dimensional, sophisticated, transparent, light-footed, and spatial reproduction, with the bass playing dynamically, deep, and powerful. The BlackRaven is an audiophile universal genius, incarnating all attributes of an uncompromising reproduction at the top-level.
Features & Design
The BlackRaven is the consistent advancement of the legendary Ayon ceramic loudspeaker series (Seagull, Hawk, Falcon, and Eagle) produced over one decade ago. A decade later, with the new ceramic chassis technology, we further developed the loudspeaker, deciding to mount it on a ceramic chassis. Implementing specially produced impedance bass-chassis-coils, we now draw the impedance up and designed the acoustic 6dB- cross-over, an ingenious much simpler design. Also, the improved “almost not damped” elliptical Ayon instrument grade plywood cabinet (with its unequaled all-around radiating characteristics is done by means of the elongated elliptical front plate). The sound is carried far into the room in a quasi “surround sound.” The speakers disappear! This further contributes to the very easy operation of amplifiers, particularly the lovers of low powered solid state and tube amplifiers are a perfect match for this loudspeaker.
High powered amplifiers perform flawlessly as well.
Ayon Real Wood Veneer Finishes
The Ayon loudspeaker models are available in a choice of the most exciting real wood veeners.
Standard veneers are: French Walnut-HG, Tineo-HG and Etimo-HG. Optional veneers on request!
