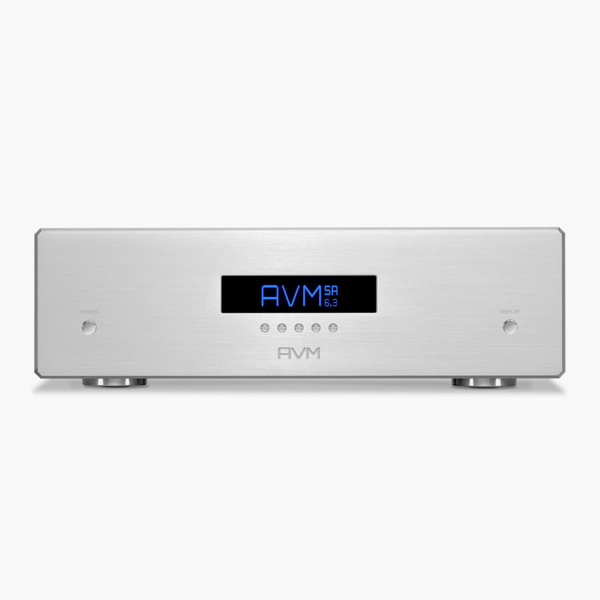

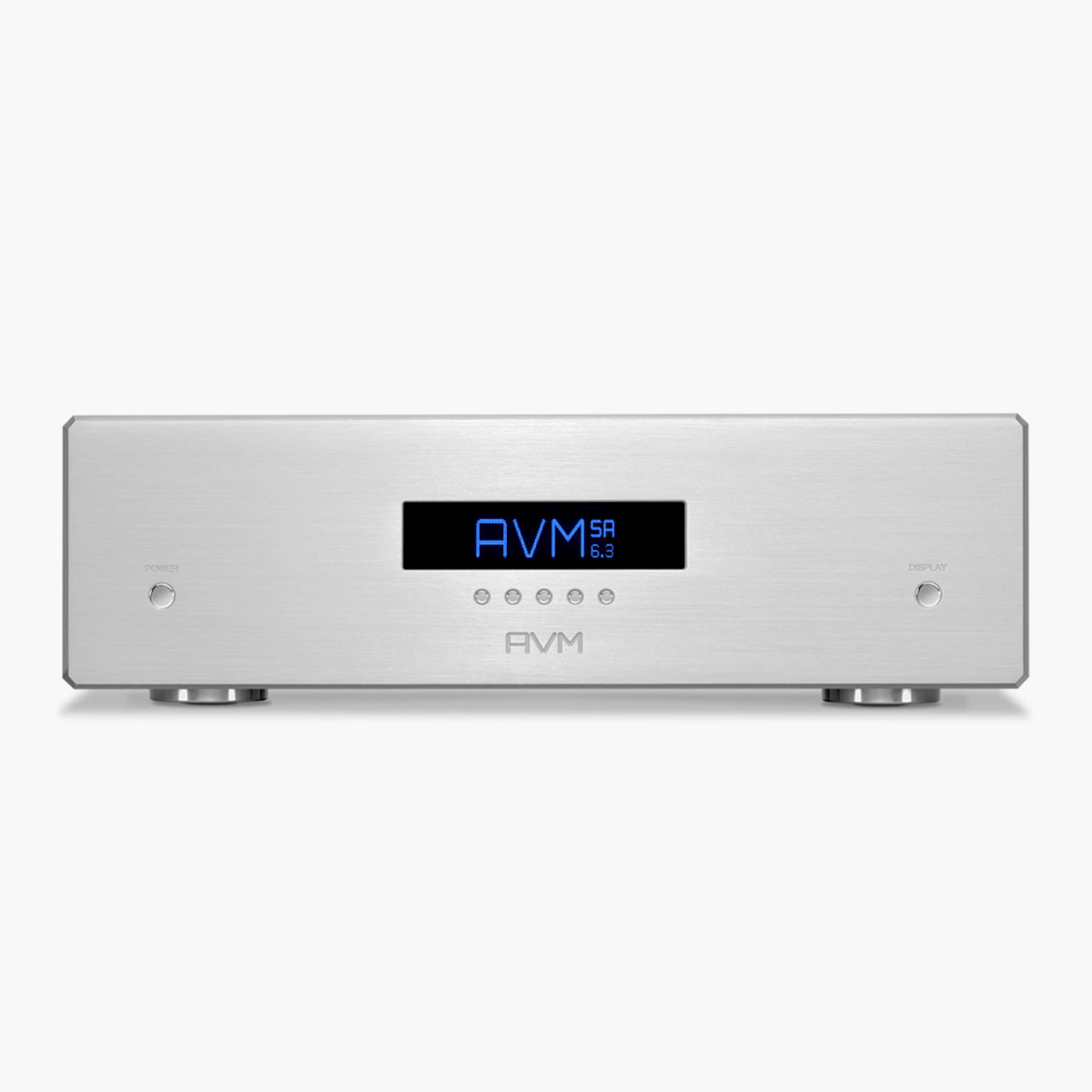

AVM Audio Ovation SA 6.3

Impressive
dynamics and sonic fidelity

The Ovation SA 6.3 is a high-end stereo power amplifier designed uncompromisingly for sonic perfection. With over 200 W/channel at 8 Ω and 350 W/channel at 4 Ω, the SA 6.3 drives even the most demanding speakers with effortless ease. 20 MOS-FET transistors per channel deliver a maximum current of 180 amps and ensure impressive dynamics and detail fidelity. The 1000 VA toroidal transformer power supply and three separate power supplies for power amplifiers, processor and input circuit guarantee exceptional signal purity. The fully balanced input stages, fully DC-coupled, minimize distortions and noise. High-level inputs in XLR and RCA as well as bi-wire capable speaker terminals offer flexible connection options. Thus, the SA 6.3 provides a performance that satisfies even the highest audiophile demands.

Innovative design
and outstanding functionality

The sturdy aluminum case, optionally in silver or black and optionally with a noble chrome front, combines functionality with timeless elegance. The large, blue-lit graphic display and the AIR-trigger technology (AVM Intelligent Remote) allow for simple and intuitive operation. Extensive menu functions such as customizable input sensitivity and peak power display make the control individually customizable. With a stand-by consumption of less than 0.5 W, the SA 6.3 also meets the highest demands for energy efficiency.
Like all models in the Ovation Series, the SA 6.3 is also handcrafted at the AVM factory in Malsch. Repeated quality checks and a multi-day burn-in period guarantee the highest reliability and longevity. With the Ovation SA 6.3, AVM presents a stereo power amplifier that combines power, precision, and elegance at the highest level.

Technical data

SA 6.3

---

MA6.3 – Amplifier
Input impedance Cinch / XLR	6,8 / 14 kΩ
Signal-to-noise ratio	101 dB(A)
Frequency response	<5Hz -> 50kHz
Total harmonic distortion (25 W/4 Ohm)	< 0,1%
Damping factor	> 400
Power	1000Watt(4Ω)/680Watt(8Ω)
MA6.3 – General
Power supply	120/230V / 50/60Hz
Power consumption max.	1000 W
Standby	<0,5W
Dimensions (W x H x D)	430x130x390m
Weight	21 kg
Warranty	4 years (with corresponding registration*)
	*Warranty periods may vary in individual distribution countries.
SA 6.3 – Amplifier
Input impedance Cinch / XLR	6,8 / 14 kΩ
Signal-to-noise ratio	101 dB(A)
Frequency response	<5Hz -> 100kHz
Total harmonic distortion (25 W/4 Ohm)	< 0,01%
Damping factor	> 500
Power	2x350Watt(4Ω)/2x200Watt(8Ω)
SA 6.3 – General
Power supply	120/230V / 50/60Hz
Power consumption max.	1000 W
Standby	<0,5W
Dimensions (W x H x D)	430x130x390m
Weight	21 kg
Warranty	4 years (with corresponding registration*)
	*Warranty periods may vary in individual distribution countries.
We reserve the right to make changes to technical specifications and features.

---
