AVM Audio Ovation MA 6.3

Extreme power
and finest control

The Ovation MA 6.3 mono power amplifiers set new standards for audiophile performance and precision. Providing over 680 W/channel at 8 Ω and up to 1000 W/channel at 4 Ω, the MA 6.3 offers enormous power reserves, effortlessly driving even the most demanding speakers. Their MOS-FET high-current amplifiers with 40 transistors per channel deliver up to 300 amperes – a guarantee for powerful dynamics and impressive detail accuracy. Fully symmetric, DC-coupled input stages minimize distortions, while three independent power supplies, including a 1000 VA toroidal transformer, ensure a stable power supply. The result is a sound that remains powerful, relaxed, and full of nuances.

The MA 6.3 are perfectly tuned to play harmoniously with other AVM components such as the CS 8.2 or CS 6.2 “Preceivers”. This combination delivers a musical experience with almost inexhaustible power reserves.

Cutting-edge technology
and timeless elegance

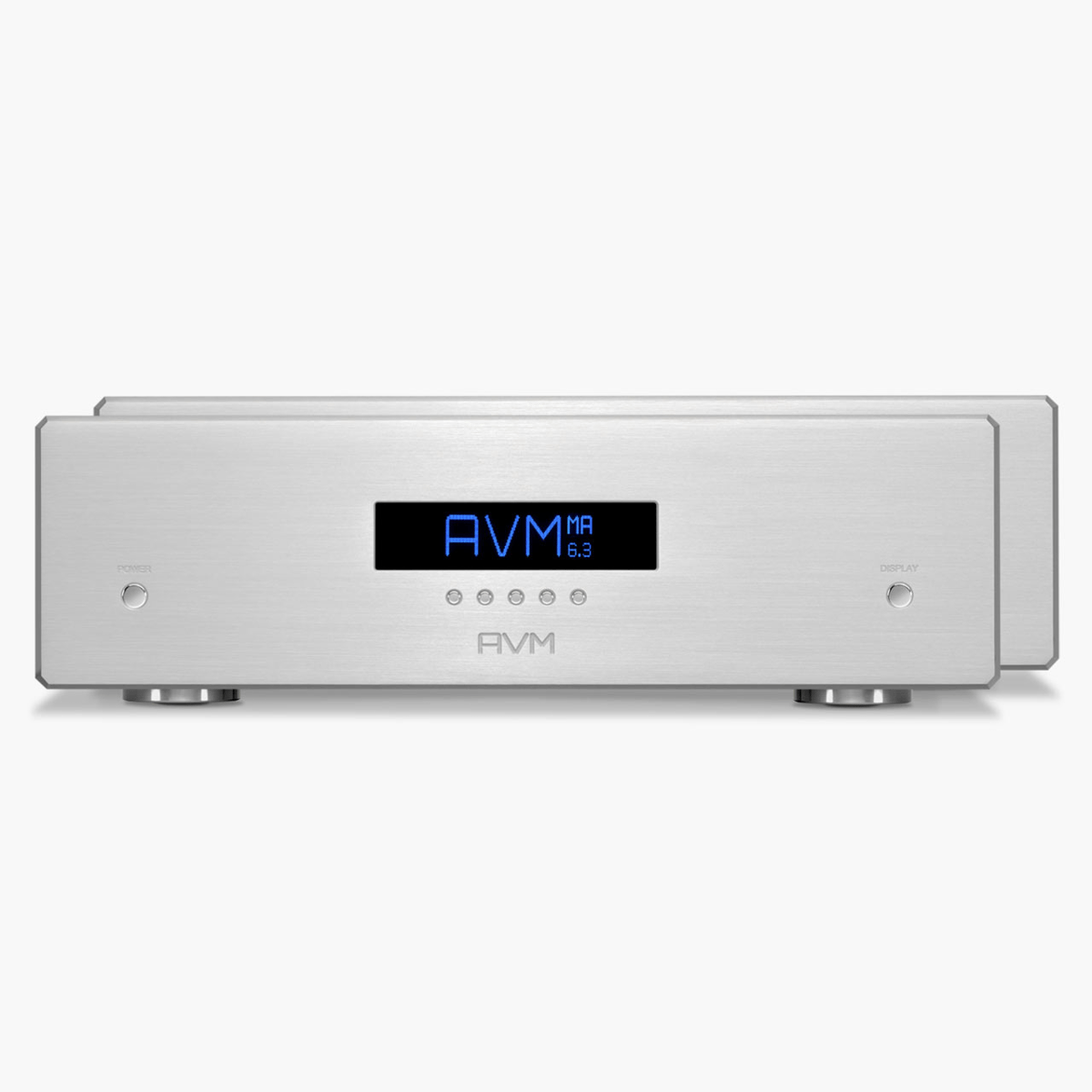

In addition to their sound performance, the MA 6.3 convinces with its well-thought-out design and functionality. The aluminium case is available in silver or black and can optionally be fitted with a chrome front. The large, blue-illuminated graphic display allows intuitive control, while extensive menu functions such as adjustable input sensitivity and peak power display provide additional flexibility.

With features like AIR-Trigger (AVM Intelligent Remote), overload and overheating protection circuits, and a standby consumption of less than 0.5 W, the MA 6.3 is not only powerful but also energy efficient. Its ability to update ensures that future features can be seamlessly added.

Technical data

MA 6.3

---

MA6.3 – Amplifier
Input impedance RCA / XLR	6,8 / 14 kΩ
Signal to noise ratio	101 dB(A)
Frequency response	<5Hz -> 50kHz
Distortion (25 W/4 ohms)	< 0,1%
Damping factor	> 400
Power	1000Watt(4Ω)/680Watt(8Ω)
MA6.3 – General
Supply	120/230V / 50/60Hz
Power consumption max.	1000 W
Standby	<0,5W
Dimensions (W x H x D)	430x130x390m
Weight	21 kg
Warranty	4 years (with corresponding registration*)
	*Warranty periods may vary in individual sales countries.
SA 6.3 – Amplifier
Input impedance RCA / XLR	6,8 / 14 kΩ
Signal to noise ratio	101 dB(A)
Frequency response	<5Hz -> 100kHz
Distortion (25 W/4 ohms)	< 0,01%
Damping factor	> 500
Power	2x350Watt(4Ω)/2x200Watt(8Ω)
SA 6.3 – General
Supply	120/230V / 50/60Hz
Power consumption max.	1000 W
Standby	<0,5W
Dimensions (W x H x D)	430x130x390m
Weight	21 kg
Warranty	4 years (with corresponding registration*)
	*Warranty periods may vary in individual sales countries.
We reserve the right to make changes to technical data and equipment.

---

Technical data

MA 6.3

---

MA6.3 – Verstärker
Eingangsimpedanz Cinch / XLR	6,8 / 14 kΩ
Störabstand	101 dB(A)
Frequenzgang	<5Hz -> 50kHz
Klirrfaktor (25 W/4 Ohm)	< 0,1%
Dämpfungsfaktor	> 400
Leistung	1000Watt(4Ω)/680Watt(8Ω)
MA6.3 – Allgemeines
Versorgung	120/230V / 50/60Hz
Leistungsaufnahme max.	1000 W
Standby	<0,5W
Abmessungen (B x H x T)	430x130x390m
Gewicht	21 kg
Garantie	4 Jahre (bei entsprechender Registrierung*)
	*Garantiezeiten können in den einzelnen Vertriebsländern variieren.
SA 6.3 – Verstärker
Eingangsimpedanz Cinch / XLR	6,8 / 14 kΩ
Störabstand	101 dB(A)
Frequenzgang	<5Hz -> 100kHz
Klirrfaktor (25 W/4 Ohm)	< 0,01%
Dämpfungsfaktor	> 500
Leistung	2x350Watt(4Ω)/2x200Watt(8Ω)
SA 6.3 – Allgemeines
Versorgung	120/230V / 50/60Hz
Leistungsaufnahme max.	1000 W
Standby	<0,5W
Abmessungen (B x H x T)	430x130x390m
Gewicht	21 kg
Garantie	4 Jahre (bei entsprechender Registrierung*)
	*Garantiezeiten können in den einzelnen Vertriebsländern variieren.
Änderungen an technischen Daten und Ausstattung behalten wir uns vor.

---
