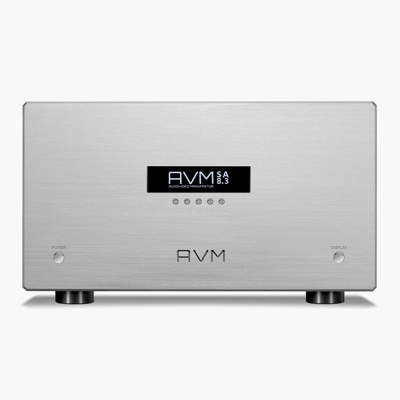

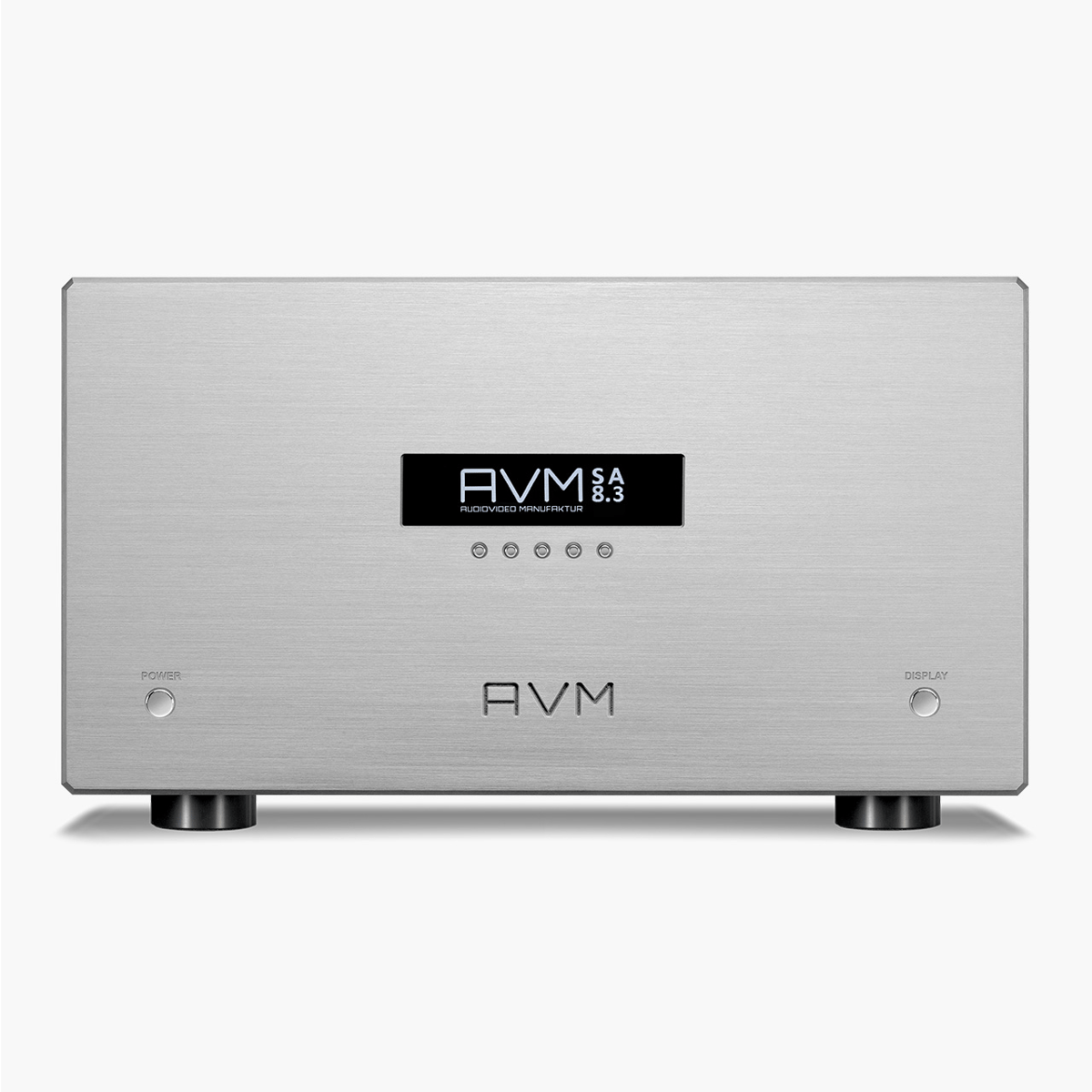

Ovation SA 8.3 Lite

Name: AVM Audio Ovation SA 8.3 Lite
Brand: AVM Audio
SKU: ovation-line-sa-8-3-lite-endverstaerker

AVM Audio Ovation SA 8.3 Lite

View at AVM Audio

Remote Control

```html

High-quality Class A/B amplifier with MOSFET technology for powerful and finely tuned sound reproduction.

Performance and purity

The Ovation SA 8.3 Master Edition Lite is a high-end power amplifier that combines uncompromising technology with elegant design. With a power of 200 W at 8 Ω and 390 W at 4 Ω, the amplifier delivers impressive stability and dynamics, even with demanding speakers. 24 MOSFET transistors per channel guarantee maximum current strengths of up to 60 amperes, which ensures powerful pulse peaks and finely nuanced music reproduction. The completely DC-coupled signal path and the transistor-based input stage ensure outstanding sound purity, which perfectly highlights even the finest details of your favorite music.

Innovative
technology and excellent workmanship

The Master Edition SA 8.3 Lite relies on proven concepts from the Ovation line, combined with the latest technology. The 1000 VA toroidal transformer and two separate power supplies ensure stable and lossless power supply for the output stages and the processor unit. Large energy stores with 136,000 μF capacitors per channel allow impressive pulse peaks of over 450 watts at 8 Ω or 900 watts at 4 Ω. With XLR and cinch inputs, the power amplifier offers flexible connection options for various sources.

The high-quality aluminum housing, available in silver or black, optionally with chrome-plated CELLINI front, underlines the timeless elegance of the design. The delivery comes in a sturdy AVM flight case, which additionally emphasizes the quality and longevity of the amplifier. The dimmable, high-contrast display and the included remote control allow for intuitive operation and maximum flexibility.

Tests

How the trade press rates us

Technical data

SA 8.3

MA8.3 – Amplifier
Amplification Factor	30 (equivalent to 29.5dB)
Sensitivity Cinch	2.1 V / 20 kOhm (1000 W at 4 Ohm)
Sensitivity XLR	2.1 V / 40 kOhm (1000 W at 4 Ohm)
Power at 8 Ohm	> 600 Watt
Power at 4 Ohm	> 1100 Watt
Power at 2 Ohm	> 1800 Watt
Intermodulation 25 W / 4 Ohm	< 0.01%
Distortion 25 W / 4 Ohm	< 0.02%
Signal-to-Noise Ratio 25 W / 4 Ohm	> 94 dB(A)
Frequency Response	5 Hz – >35 kHz (-3dB)
Power Bandwidth 25 W / 4 Ohm	5 Hz – >35 kHz (-3dB)
Rise Time / 4 Ohm	10 µs
Slew Rate	> 15 V / µs
Damping Factor / 8 Ohm	> 400
MA8.3 – General
Power Supply	230 V / 50 Hz / 3500 W max.
Operation without Signal	120 W
Standby	< 0.5 W
Dimensions (L x W x H)	420 mm x 432 mm x 253 mm
Weight	42 kg (84 kg / pair)
Warranty	4 years (with appropriate registration*)
	Warranty periods may vary in individual distribution countries.
SA 8.3 – Amplifier
Amplification Factor	30 (equivalent to 29.5dB)
Sensitivity Cinch	1.25 V / 20 kOhm (350 W at 4 Ohm)
Sensitivity XLR	1.25 V / 40 kOhm (350 W at 4 Ohm)
Power at 8 Ohm per Channel	> 230 Watt
Power at 4 Ohm per Channel	> 420 Watt
Power at 2 Ohm per Channel	> 700 Watt
Intermodulation 25 W / 4 Ohm	< 0.01%
Distortion 25 W / 4 Ohm	< 0.02%
Signal-to-Noise Ratio 25 W / 4 Ohm	> 94 dB(A)
Frequency Response	5 Hz – >35 kHz (-3dB)
Power Bandwidth 25 W / 4 Ohm	5 Hz – >35 kHz (-3dB)
Rise Time / 4 Ohm	10 µs
Slew Rate	> 15 V / µs
Damping Factor / 8 Ohm	> 400
SA8.3 – General
Power Supply	230 V / 50 Hz / 3500 W max.
Operation without Signal	120 W
Standby	< 0.5 W
Dimensions (L x W x H)	420 mm x 432 mm x 253 mm
Weight	42 kg
Warranty	4 years (with appropriate registration)
	*Warranty periods may vary in individual distribution countries.
